Overview

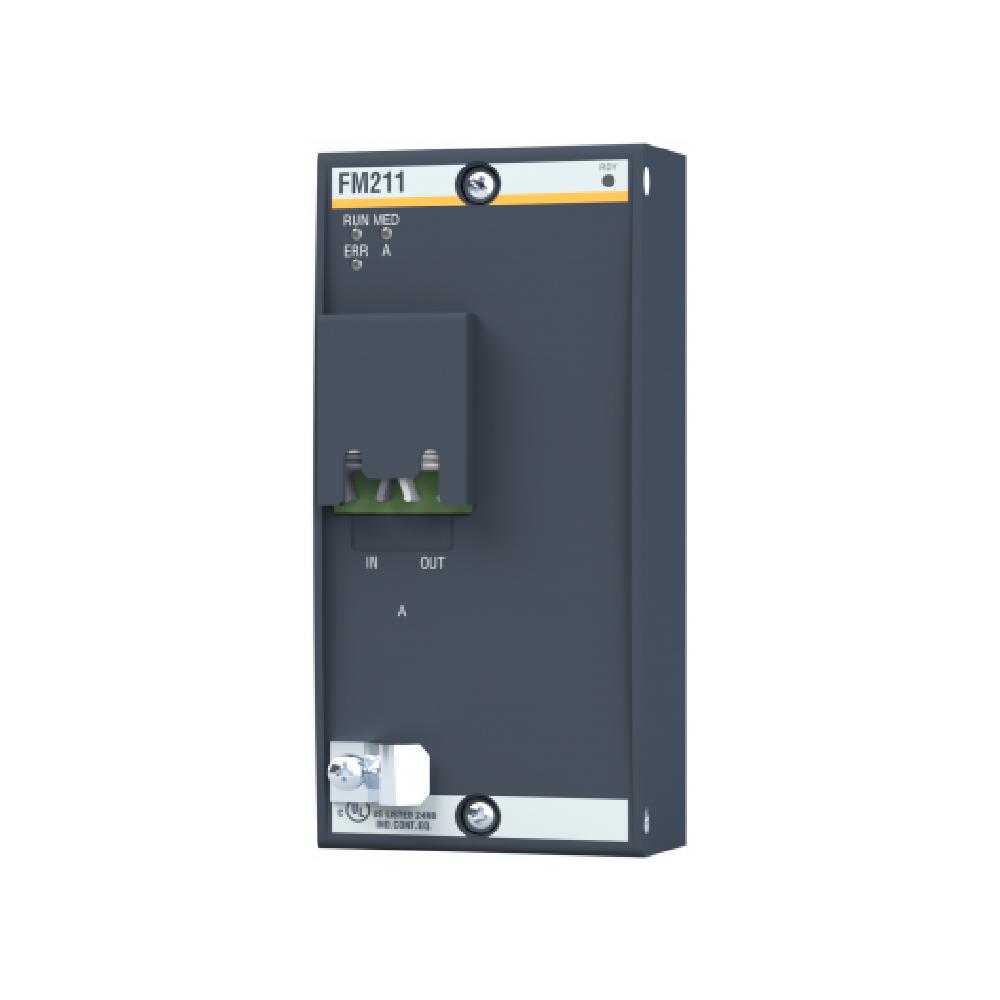

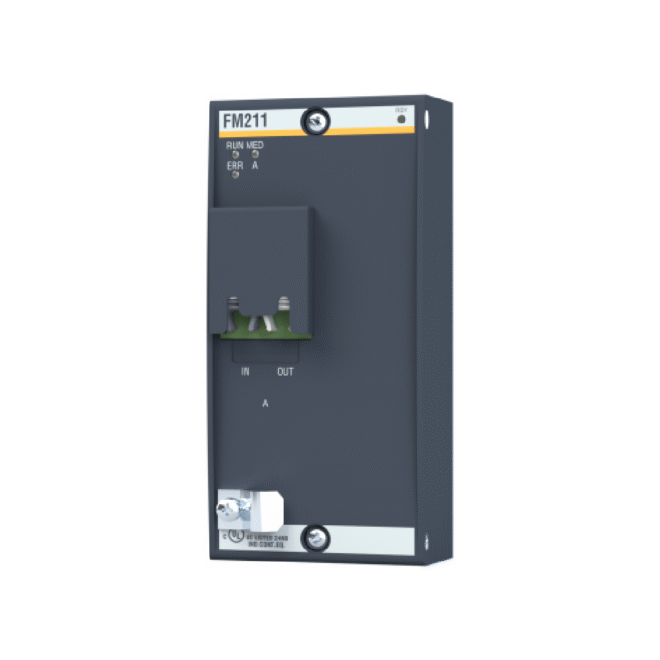

The FM211 00017821-00 from Bachmann serves as a FASTBUS master module for industrial automation. It distributes substations over long distances with minimal signal delay. The module supports multiple fiber types, ensuring reliable communication in complex environments.
Key Features
- Supports up to 16 stations on a single FASTBUS network.
- Compatible with Plastic Optical Fiber (POF), Hard Cladded Silica (HCS), and special HCS cables.
- Integrated power supply provides +5V, +15V, and -15V outputs for connected modules.
- Galvanically isolated from the system with reverse polarity protection.
- Ideal for Fx210 Series applications requiring high-speed, long-distance substation connections.
Technical Specifications
| Specification | Details |
|---|---|
| Model | FM211 00017821-00 |
| Manufacturer | Bachmann |
| Product Family | Fx210 Series |
| Interface | FASTBUS, 1 FO interface |
| Maximum Line Length | POF: 40 m, HCS: 150 m, Special HCS: 180 m |
| Maximum Total Length | 1000 m |
| Maximum Stations | 16 |
| Input Voltage | 24 VDC (18–34 V) |
| Current Consumption | Max. 1.2 A at 24 V |
| Nominal Power Output | 17 W |
| Output Currents | +5 V: 2800 mA, +15 V: 250 mA, -15 V: 200 mA |
| Galvanic Isolation | 500 V |
| Certifications | CE, cULus, CCC; Marine: DNV GL, LR, ABS, BV, NK, KR, RINA |
| Operating Temperature | 0–60 °C |
| Storage Temperature | -40–85 °C |
| Relative Humidity | Operation: 5–95%, Storage: 5–95% |
| Pollution Degree | 2 (IEC 60664-1) |
Industrial Application
The FM211 00017821-00 module ensures fast, reliable communication between substations in industrial automation networks. Its flexible fiber compatibility and integrated power supply provide dependable performance for Fx210 Series controllers, even across long distances.
Details
| Weight | 0.6 kg |
|---|
