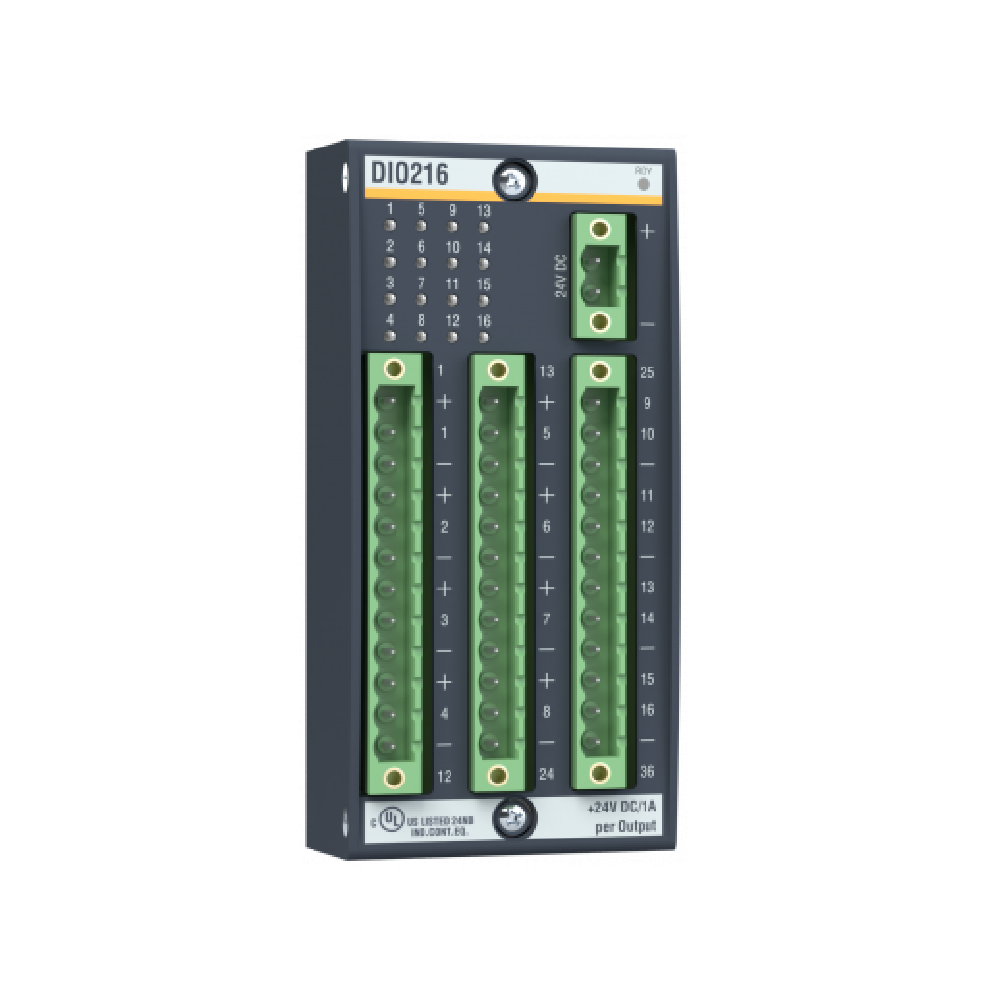

The Bachmann DIO216 00010615-00 offers reliable operation for digital control devices such as relays, valves, and sensors. It handles up to 16 inputs and 16 outputs, each channel delivering consistent performance under demanding industrial conditions. Designed for high efficiency, it supports a wide input voltage range and ensures fast response with a typical input delay of 600 µs.

The module withstands tough environments with an operating temperature from -30°C to +60°C and humidity up to 95%. Its marine approvals, including DNV GL and ABS, make it a trusted solution in offshore and ship automation systems. Galvanic isolation up to 500 V enhances safety, while reverse polarity protection safeguards connected devices.

Input Specifications

• Quantity: 16 channels
• Input voltage (high): 15–34 VDC
• Input voltage (low): 0–5 VDC
• Input delay: 600 µs
• Internal resistance: 6.8 kΩ
• LED indication: Green
• Interrupt inputs: 1

Output Specifications

• Quantity: 16 channels
• Output voltage range: 18–34 VDC
• Output current per channel: 1 A
• Maximum total current: 12 A
• LED indication: Green
• Max switching frequency (ohmic load): 1 kHz

Power and Isolation

• Reverse polarity protection: Yes
• Galvanic isolation from system: 500 V

Environmental Ratings

• Operating temperature: -30 to +60 °C
• Storage temperature: -40 to +85 °C
• Relative humidity (operation): 5–95 %
• Relative humidity (storage): 5–95 %
• Pollution degree: 2 (IEC 60664-1 standard)

Certifications

• General: CE, cULus, CCC
• Marine: DNV GL, LR, ABS, BV
• Ambient conditions: Standard ColdClimate
