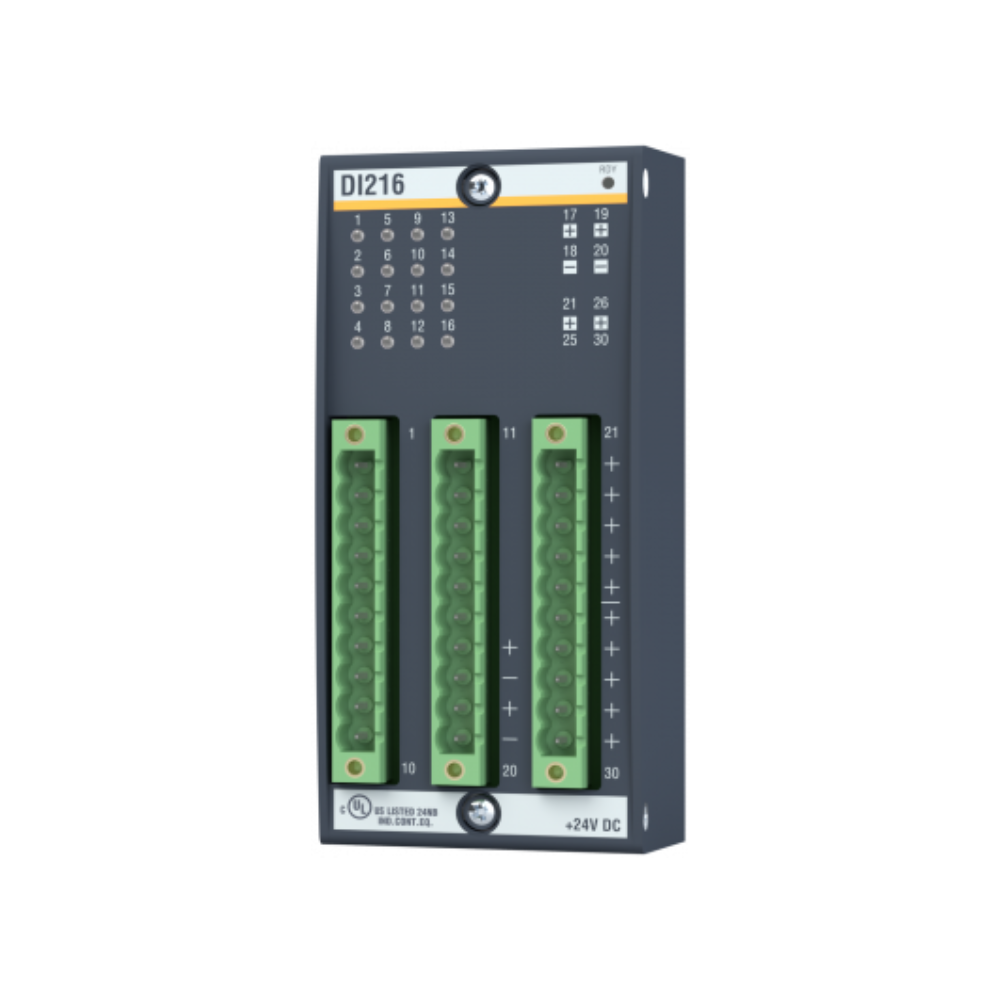

The Bachmann DI216 00009002-00 module connects up to 16 sensors to the M1 controller, delivering precise and efficient input management for automation systems. It operates with a 24 VDC supply and includes two isolated input groups for reliable separation of signals.
Key Features of Bachmann DI216
- Sixteen digital inputs with fast response and flexible configuration
- Two isolated input groups (1–8 and 9–16) for enhanced system safety
- Input delay options: 3 ms via filter or 50 µs standard
- Support for up to two interrupt inputs for event-driven control
- Galvanic isolation of 300 V from the system and 500 V between groups
- Low power consumption of 70 mA at 5 V via BS2xx modules
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Bachmann |
| Product ID | DI216 00009002-00 |
| Module Type | Digital Input Module |
| Number of Inputs | 16 |
| Input Voltage | 24 VDC |
| Internal Resistance | Approx. 6 kΩ |
| Input Delay (via filter) | 3 ms |
| Input Delay (standard) | 50 µs |
| Interrupt Inputs | Max. 2 |
| Isolation from System | 300 V |
| Isolation of Groups | 500 V |
| Current Consumption | 70 mA at 5 V (via BS2xx) |
| Approvals / Certificates | CE, cULus, CCC, DNV GL, LR, ABS, BV |
| Operating Temperature | -30 to +60 °C |
| Storage Temperature | -40 to +85 °C |
| Relative Humidity (Operation) | 5 to 95 % with or without condensation |
| Relative Humidity (Storage) | 5 to 95 % with condensation |
| Pollution Degree | 2 (IEC 60664-1, without condensation) |
Approvals and Usage
The Bachmann DI216 00009002-00 meets CE, cULus, CCC, and multiple marine certifications, including DNV GL, LR, ABS, and BV. This makes it suitable for industrial plants, offshore systems, and environments with demanding reliability requirements.
Details
| Weight | 0.5 kg |
|---|
