Overview

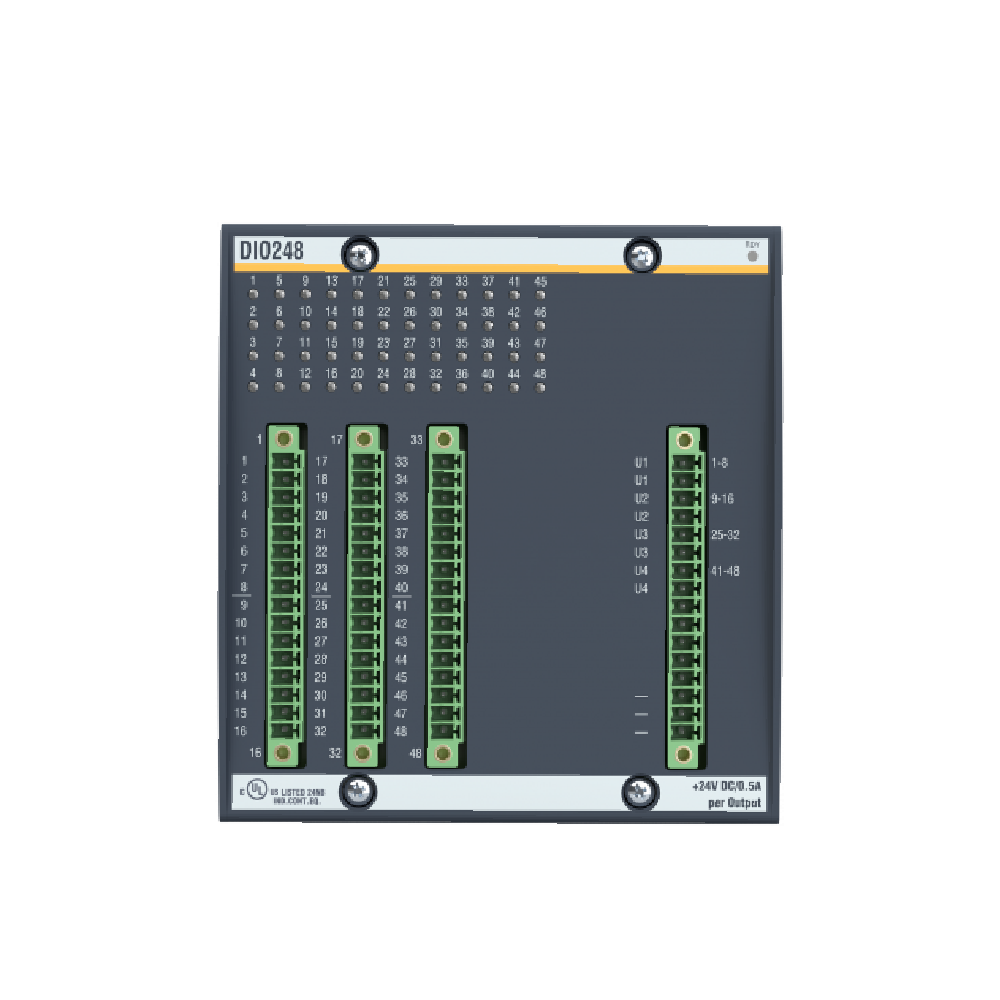

The DI0248 00019116-00 from Bachmann provides advanced digital input/output control for industrial automation. It manages contactors, relays, valves, and reads digital sensors efficiently. This module supports high-speed event reactions and precise counting for various applications.
Key Features
- 16 to 32 digital inputs and outputs for flexible system integration.
- Eight configurable interrupt inputs for real-time event detection.
- Up to four 32-bit counters for position detection and goods counting.
- PWM output mode allows energy-efficient operation of connected devices.
- Galvanically isolated internal power supply ensures system safety.
Technical Specifications
| Specification | Details |
|---|---|
| Model | DI0248 00019116-00 |
| Manufacturer | Bachmann |
| Digital Inputs | 16–32 |
| Input Voltage Range | High: 15–34 VDC, Low: 0–5 VDC |
| Input Delay | Standard 600 µs, configurable 10 µs–270 ms |
| Interrupt Inputs | 8, configurable as counter or interrupt inputs |
| Counters | Up to 4, 32-bit resolution |
| Encoder Support | Incremental A/B or one-channel pulse encoders |
| Max Input Frequency | One-channel: 50 kHz |
| Digital Outputs | 16–32 |
| Output Voltage Range | 18–34 VDC |
| Max Output Current per Channel | 0.5–20 A depending on configuration |
| PWM Outputs | 0–100% duty cycle, 13-bit resolution, 1 Hz–1 kHz |
| Internal Power Supply | BS2xx, galvanically isolated, 180 mA at 5 V |
| External Supply | 24 VDC nominal, reverse polarity protection |
| Certifications | CE, cULus, CCC, Marine: DNV GL, LR, ABS, BV |
| Operating Temperature | -30 to +60 °C |
| Storage Temperature | -40 to +60 °C |
| Relative Humidity | Operation: 5–95%, Storage: 5–95% |
Industrial Application
The DI0248 00019116-00 module is ideal for industrial automation environments, delivering precise control and real-time signal processing. It integrates seamlessly into Bachmann M1 systems, supporting both high-density inputs and outputs while maintaining operational reliability in extreme temperatures.
Details
| Weight | 0.32 kg |
|---|---|
| Country of origin | Australia |
