Overview

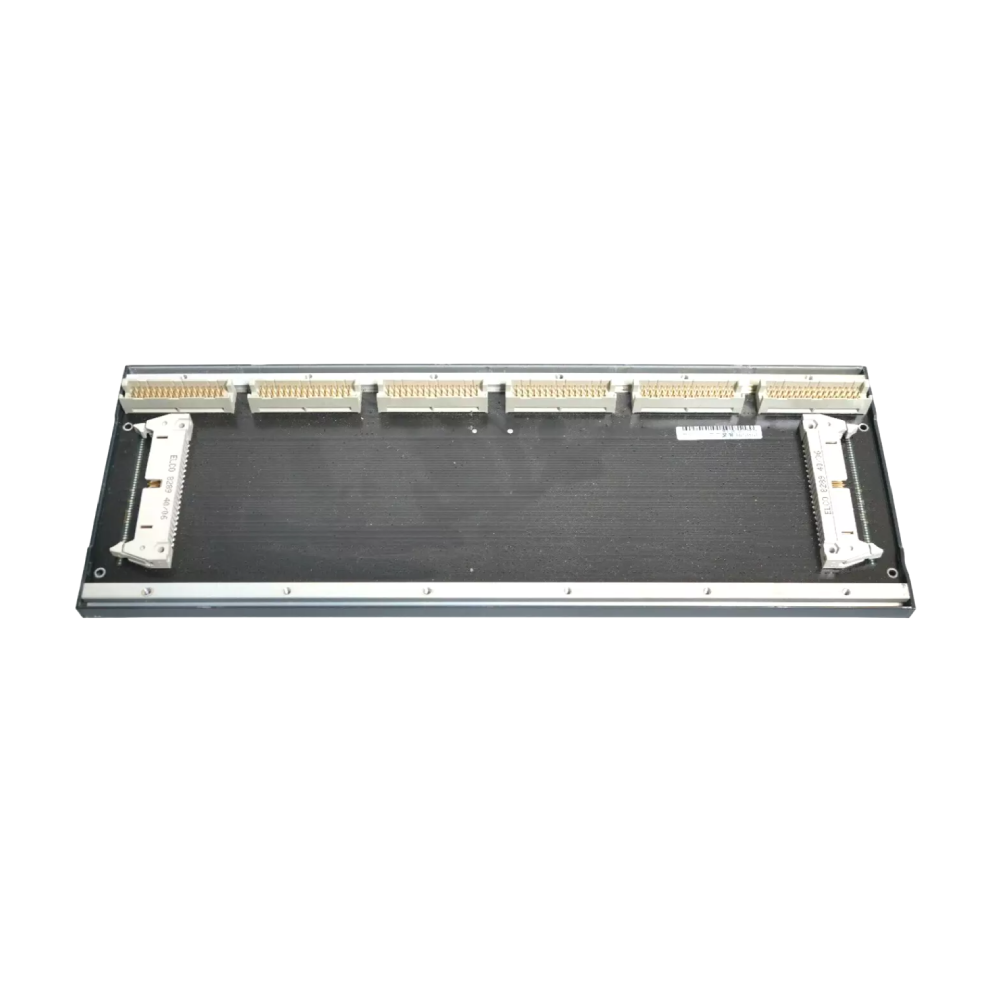

The BS206 00009792-00 backplane from Bachmann connects M1 controller modules, including CPUs, power supplies, and I/O units. It provides both mechanical support and electrical interconnection, forming the backbone of the control system.
Key Features
- Supports six module slots for flexible system expansion.
- Enables secure and reliable connections between multiple hardware modules.
- Compliant with industrial and marine certifications, ensuring safe operation in harsh environments.
- Designed to operate in wide temperature and humidity ranges for robust industrial performance.
Technical Specifications
| Specification | Details |
|---|---|
| Model | BS206 00009792-00 |
| Manufacturer | Bachmann |
| Number of Module Slots | 6 |
| Width | 55 mm x number of module slots |
| Depth | 23 mm (including connector) |
| Height | 119 mm |
| Operating Temperature | -30 to +60 °C (vertical: -30 to +55 °C) |
| Storage Temperature | -40 to +85 °C |
| Relative Humidity | Operation: 5–95% (non-condensing), Storage: 5–95% (non-condensing) |
| Certifications | CE, cULus, CCC; Marine: DNV GL, LR, ABS, BV, NK, KR, RINA |
Industrial Application
The BS206 00009792-00 backplane is ideal for industrial automation, integrating CPU, I/O, and power modules efficiently. Its robust design maintains reliable communication and operation in extreme temperatures and humid conditions.
Details
| Weight | 0.5 kg |
|---|---|
| Dimensions | 55 × 23 × 119 mm |
