Servo Motors

Product Overview

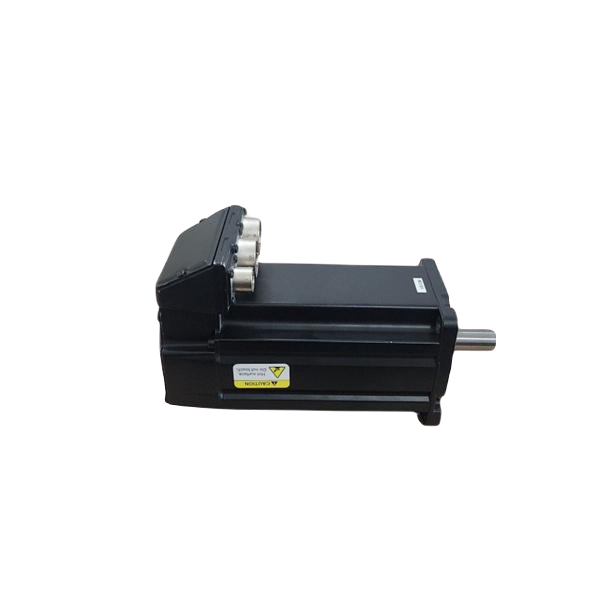

The Allen-Bradley MPL-B320P-MK24AA AC servo motor is designed for high-performance motion control applications. It offers a maximum speed of 5000 RPM and uses a low-inertia design for precise acceleration and deceleration. Moreover, its compact frame supports IEC metric flange mounting, allowing flexible installation in tight industrial environments. The motor integrates a multi-turn 1024 sin/cos encoder supporting the Hiperface protocol, ensuring accurate position feedback.

Functional Highlights

This servo motor features advanced insulation and high-energy magnets, providing superior torque and thermal management. In addition, its common cable family enables consistent connection orientation across the MP series. The motor incorporates a 24 V DC brake for safe operation and supports peak stall torque of 7.91 N·m for demanding motion applications. Its robust design enhances reliability in automated systems.

Key Advantages Include:

• Continuous torque: 3.05 N·m

• Output power: 1.5 kW

• Rated speed: 5000 RPM

• Input voltage: 400 V AC

• Multi-turn high-resolution encoder (Hiperface)

• Frame size: 100 mm, magnet stack length: 50.8 mm

• Mounting: IEC metric motor flange

• Approximate weight: 3.7 kg

Technical Specifications

Typical Applications

The MPL-B320P-MK24AA servo motor is ideal for precision automation, robotics, and CNC machinery. Moreover, it supports high-torque, high-speed operations, making it suitable for conveyors, pick-and-place systems, and motion-intensive processes. Its compact design allows integration into distributed motion systems, ensuring smooth performance in demanding industrial environments.
