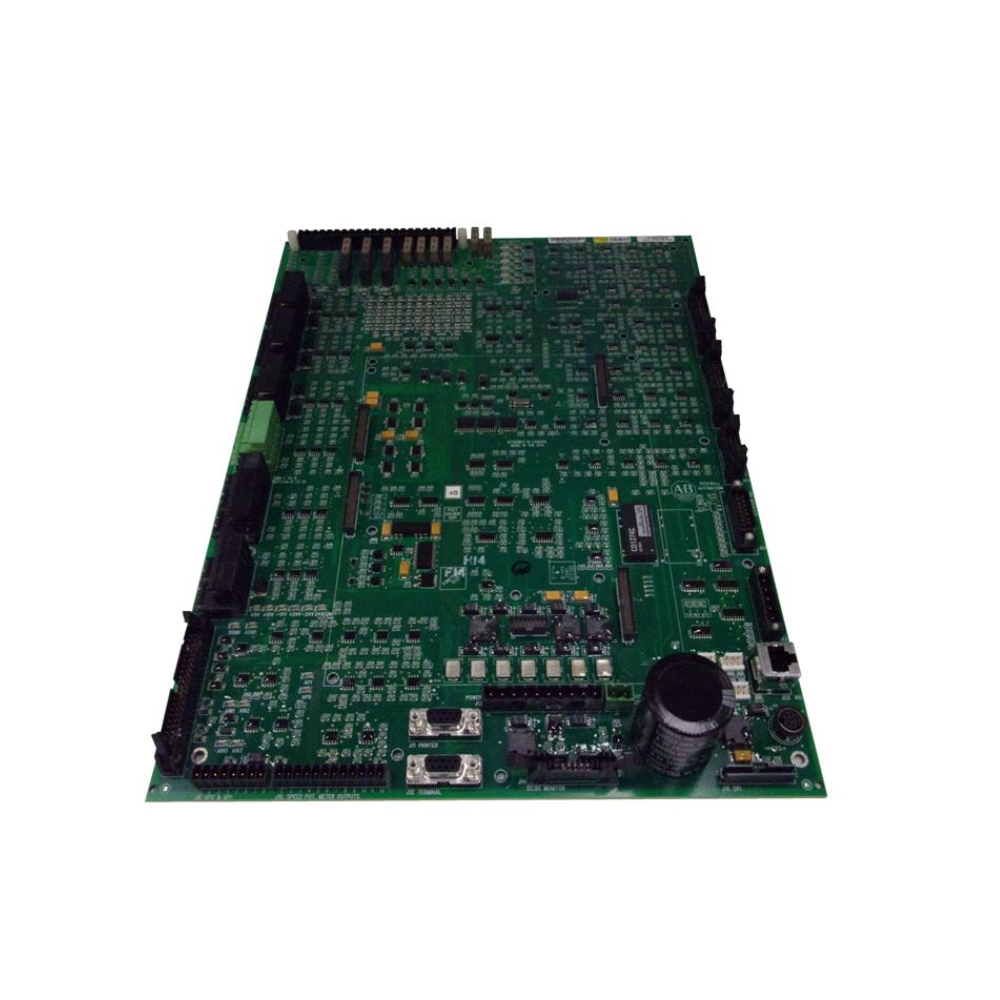

The Allen-Bradley 80190-560-01-R is a high-performance Analog Control Board engineered for the PowerFlex 70 Standard AC Drive. It delivers accurate analog input and output signals that enhance drive functionality in demanding applications. This compact module integrates seamlessly into the PowerFlex system, offering dependable operation with minimal space requirements.
The board supports four analog inputs and two analog outputs, allowing precise signal handling for voltage and current control. A 24 VDC power supply ensures stable performance, while green status indicators simplify system monitoring. The compact dimensions of 5.25 x 3.5 x 1.5 inches and lightweight 0.5-pound design make installation straightforward even in restricted panels.
Key Features
- Compatible with PowerFlex 70 Standard AC Drive
- Four analog inputs for voltage or current signals
- Two analog outputs for voltage or current control
- Operates on reliable 24 VDC power supply
- Lightweight at only 0.5 pounds (0.23 kg)
- Compact size: 5.25 x 3.5 x 1.5 inches (133.4 x 88.9 x 38.1 mm)
Technical Specifications
| Specification | Details |
|---|---|
| Model | 80190-560-01-R |
| Manufacturer | Allen-Bradley |
| Product Type | Analog Control Board (ACB) |
| Compatible Drive | PowerFlex 70 Standard AC Drive |
| Analog Inputs | 4 channels, voltage or current |
| Analog Outputs | 2 channels, voltage or current |
| Power Supply | 24 VDC |
| Dimensions | 5.25 x 3.5 x 1.5 in (133.4 x 88.9 x 38.1 mm) |
| Weight | 0.5 lb (0.23 kg) |
Details
| Weight | 0.23 kg |
|---|---|
| Dimensions | 133 × 89 × 38 mm |
