Overview

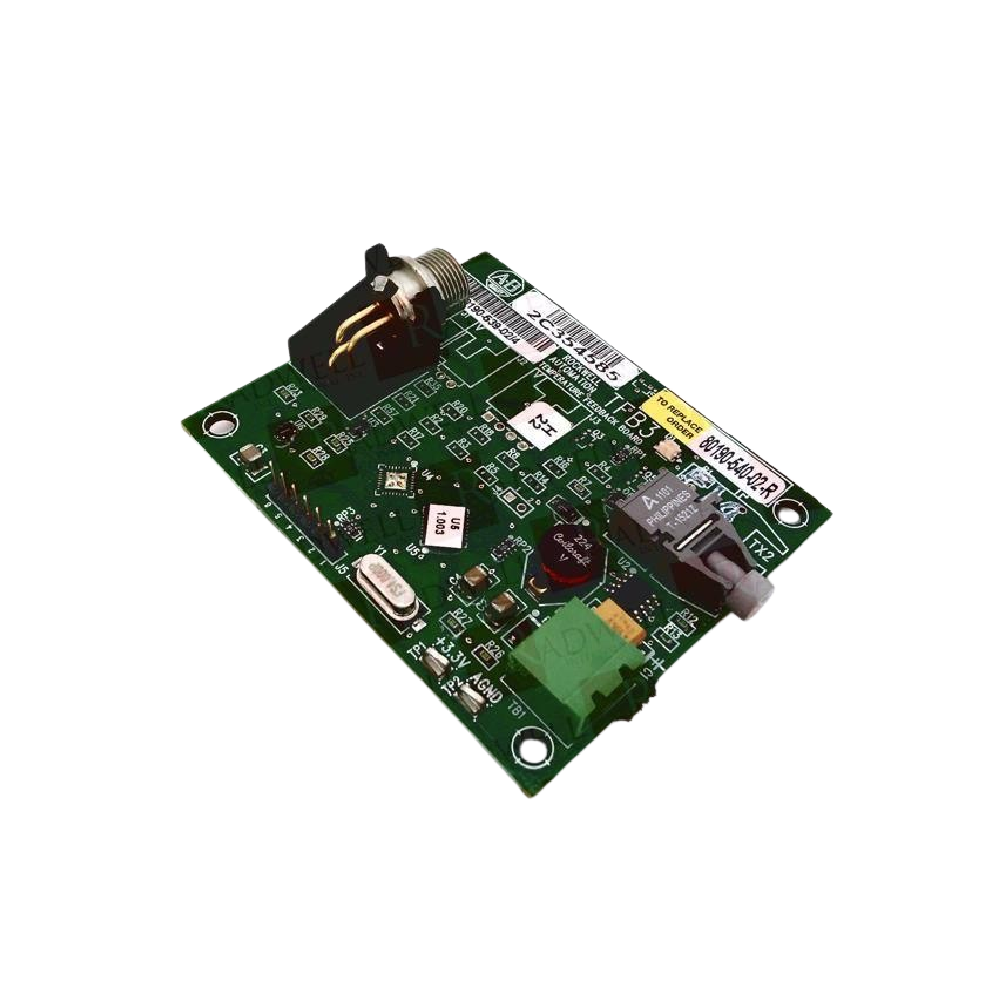

The 80190-540-02-R from Allen-Bradley is a precision PC Temperature Feedback Module designed for industrial automation systems. It integrates directly with PLCs to provide accurate temperature monitoring and control, supporting optimized operational performance.
Key Features
- Operates at 24 VDC with a low current draw of 10 mA for efficient power usage.
- Provides a 4–20 mA output signal for precise temperature feedback to PLC systems.
- Achieves ±0.5% full-scale accuracy with a 10-second response time for reliable readings.
- Supports flexible mounting options, including DIN rail and panel installation.
- Compact and lightweight design facilitates easy integration into existing control panels.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 80190-540-02-R |
| Manufacturer | Allen-Bradley |
| Product Type | PC Board / PLC Add-On Module |
| Operating Voltage | 24 VDC |
| Current Draw | 10 mA |
| Output Signal | 4–20 mA |
| Accuracy | ±0.5% of full scale |
| Response Time | 10 seconds |
| Mounting | DIN rail or panel mount |
| Dimensions | 72 mm x 120 mm x 90 mm |
| Weight | 120 g |
| Certifications | CE, UL, CSA |
Industrial Application
The Allen-Bradley 80190-540-02-R module enables accurate temperature monitoring for industrial processes. Its compact size and easy mounting options make it ideal for retrofits and new installations. Engineers rely on this module to deliver consistent feedback and maintain precise process control.
Details
| Weight | 0.12 kg |
|---|---|
| Dimensions | 72 × 120 × 90 mm |
