Product Overview

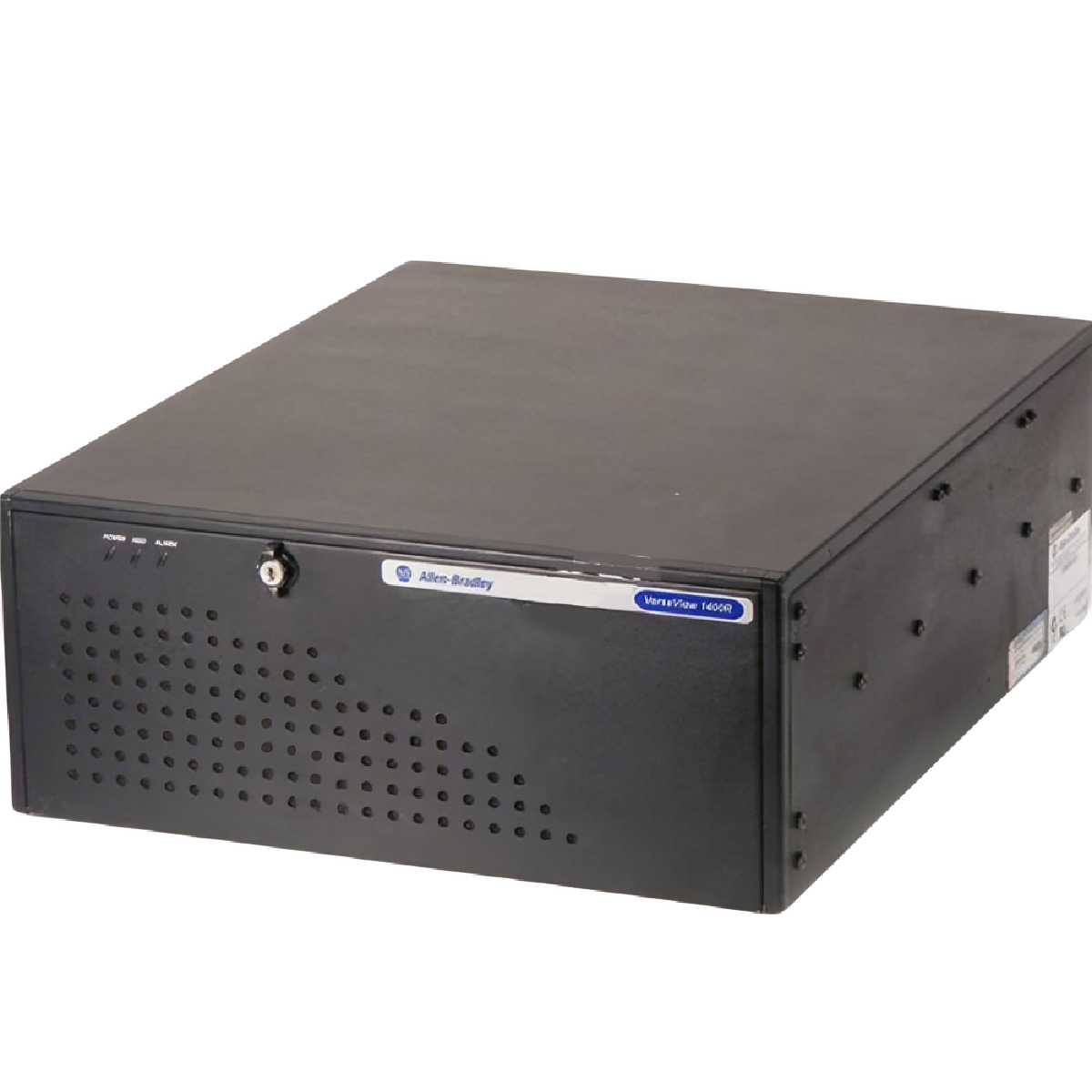

The Allen-Bradley 6155R-14S2KH is a VersaView 1400R Series C non-display industrial computer, designed for use in harsh factory and process environments. Equipped with an Intel Pentium 4 Celeron 2 GHz processor and robust expansion capability, it delivers stable computing power for industrial automation control. Moreover, its versatile mounting options—including rack, wall, or DIN rail—make integration straightforward across various installations.
This model is ideal for engineers seeking a rugged, expandable computing platform without an integrated display. It ensures continuous operation even under vibration, temperature fluctuation, and electrical noise.
Functional Highlights
- High-Performance Processor: Intel Pentium 4 Celeron CPU ensures reliable multitasking and fast data processing.
- Flexible Expansion: Includes multiple full-length and half-length PCI and ISA slots for system customization.
- Versatile Connectivity: Offers standard I/O ports such as Ethernet, VGA, USB, COM, and PS/2 for broad compatibility.
- Industrial Durability: NEMA Type 1 enclosure supports continuous operation in demanding factory conditions.
- Wide Power Range: Operates with 120–240V AC or 9–36V DC input for installation flexibility.
- Easy Maintenance: Modular layout allows quick access for upgrades or component replacement.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Model | VersaView 1400R Series C (Non-Display) |
| Processor | Intel Pentium 4 Celeron, 2 GHz |
| Memory (RAM) | 2 GB (2 x 1 GB DIMMs) |
| Storage | 80 GB Hard Drive |
| Expansion Slots | 4 Full-length PCI, 3 Half-length PCI, 3 Full-length ISA, 2 Half-length ISA, 1 CompactFlash |
| I/O Interfaces | 2 COM, 1 Parallel, 1 Ethernet (10/100 Mbps), 1 VGA, 1 USB 1.1, 1 PS/2, 1 Audio |
| Drives | 3.5” Floppy, CD-ROM |
| Mounting Options | Wall, Machine, DIN Rail, VESA, Rack |
| Input Power | 120–240V AC or 9–36V DC |
| Power Consumption | 150VA (1.5A @ 100V, 0.63A @ 240V) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Non-Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Shock Resistance | 15g Operating / 30g Non-Operating |
| Vibration Resistance | 1g Operating / 2g Non-Operating |
| Enclosure Rating | NEMA Type 1 |
| Weight / Dimensions | 17.4 kg / 6.93 x 18.97 x 22.05 in |
Furthermore, this model has reached discontinued/obsolete lifecycle status but remains widely supported in legacy Rockwell Automation systems.
System Integration
The 6155R-14S2KH integrates seamlessly into Allen-Bradley ControlLogix and FactoryTalk® environments, offering consistent data processing and communication capabilities. For instance, it can serve as a data gateway, engineering workstation, or server node within distributed control systems. In addition, the system’s expansion slots support field I/O cards, legacy controllers, and serial communication adapters, ensuring compatibility with older plant infrastructures.
Therefore, the module serves as a stable platform for users upgrading from earlier VersaView systems or maintaining long-running production control setups.
Details
| Weight | 17.4 kg |
|---|---|
| Dimensions | 4470 × 12243 × 14224 mm |
