Overview

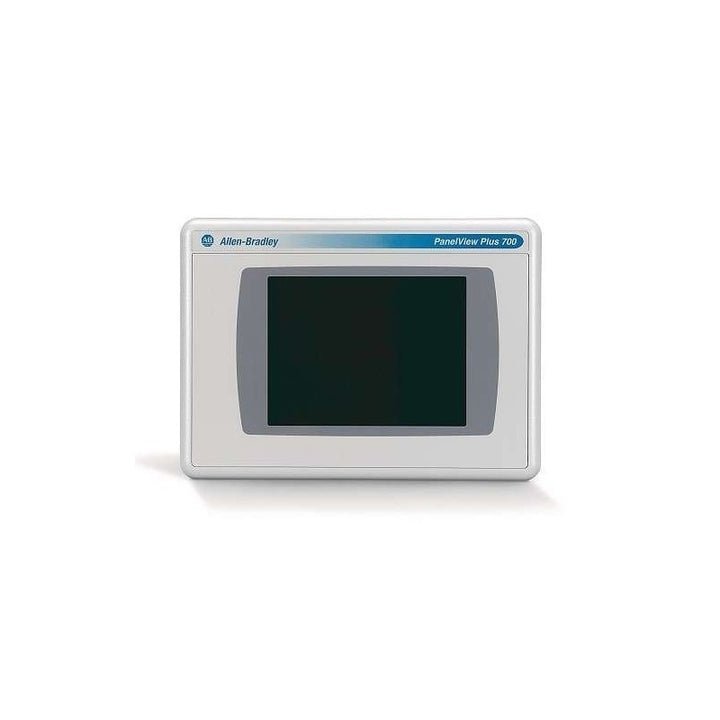

The Allen-Bradley 2711P-T7C4D8 PanelView Plus 700 Terminal provides intuitive operation and reliable performance for industrial automation systems. Featuring a 6.5-inch color TFT display with touchscreen input, it delivers high-resolution graphics (640 × 480) and robust construction, suitable for demanding applications.
Display Specifications
| Parameter | Specification |
|---|---|
| Display Type | Color Active-Matrix TFT |
| Size | 6.5 inches |
| Resolution | 640 × 480 pixels, 18-bit color graphics |
| Display Area | 132 × 99 mm (5.2 × 3.9 inches) |
| Brightness | 300 cd/m² (nits) |
| Backlight | CCFL, field-replaceable, 50,000-hour minimum at 25°C |
Input Options
| Parameter | Specification |
|---|---|
| Touchscreen | 8-wire analog resistive, 1 million presses lifespan, operating force: 10–110 g |
| Keypad | Stainless-steel membrane, 22 function keys (F1–F10, K1–K12), 1 million presses lifespan, operating force: 340 g |
Memory and Storage
| Parameter | Specification |
|---|---|
| RAM | 512 MB |
| Nonvolatile Memory | 512 MB (79 MB free user memory) |
| External Storage | SD card slot (hot-swappable, supports 1784-SDx/SDHCx), USB 2.0 high-speed host ports |
Operating System & Software
| Parameter | Specification |
|---|---|
| OS | Windows CE 6.0 |
| Supported Software | FactoryTalk View ME v6.0+, FactoryTalk ViewPoint v1.2+ |
Communication Ports
| Parameter | Specification |
|---|---|
| Ethernet | 10/100 Mbps, Auto-MDI/MDI-X |
| RS-232 Serial | Standard serial port |
| USB | 2 host ports |
| Optional Expansion | DH+/DH-485, ControlNet |
Power and Consumption
| Parameter | Specification |
|---|---|
| DC Input | 18–32V DC (24V nominal), 39W typical (1.6A), 70W max (2.9A) |
| AC Input | 100–240V AC, 50/60 Hz, 65VA typical, 160VA max |
| Real-Time Clock Battery | CR2032 coin-cell lithium, 4 years minimum, field replaceable (2711P-RY2032) |
Physical Characteristics
| Parameter | Specification |
|---|---|
| Weight | Touchscreen: 1.7 kg (3.7 lbs), Keypad: 1.8 kg (4.1 lbs) |
| Dimensions | Touchscreen: 179 × 246 × 55 mm, Keypad: 193 × 290 × 55 mm |
| Cutout Dimensions | Touchscreen: 154 × 220 mm, Keypad: 167 × 264 mm |
Additional Features
- Rugged design ensures high durability in industrial environments.
- Backlight and display options support up to 1000 cd/m² for outdoor use (non-replaceable backlight).
- Flexible network expansion supports Ethernet, DH+/DH-485, or ControlNet.
Details
| Weight | 1.8 kg |
|---|---|
| Dimensions | 4902 × 7366 × 1397 mm |
