Product Overview

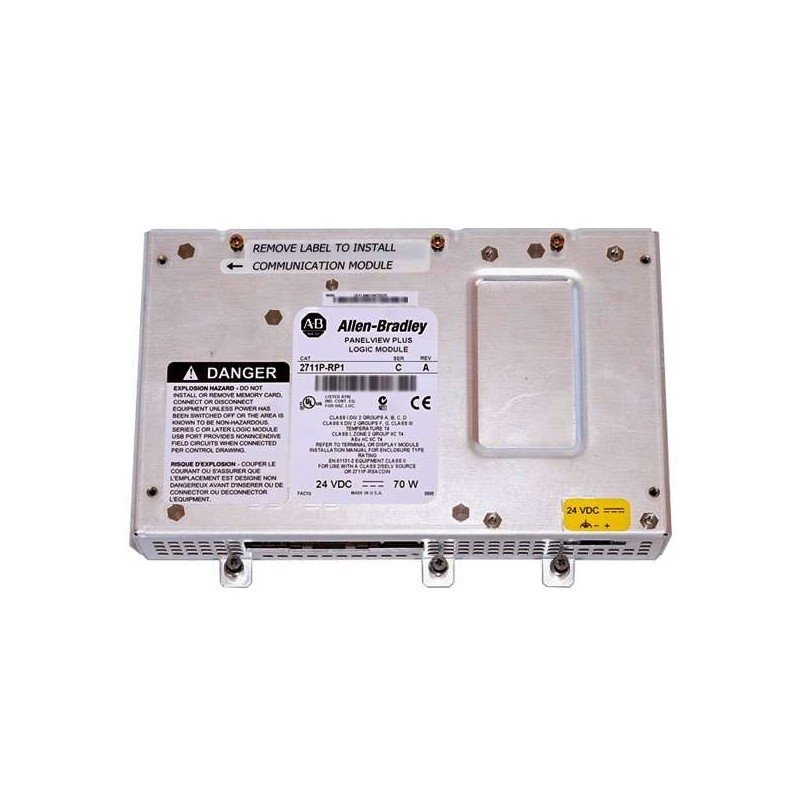

The Allen-Bradley 2711P-RP1 PanelView Plus Logic Module is designed to deliver high performance and dependable operation for the PanelView Plus operator terminals. It contains the essential processor, RAM, and flash memory, providing the computing power needed for HMI functions. The module connects directly to the display unit through a PCI slot, ensuring stable data communication and easy installation.
Main Features and Benefits
- Powerful Processing: Equipped with 64 MB of RAM and 64 MB of flash memory for smooth HMI operations.
- Versatile Connectivity: Includes RS232, Ethernet, and dual USB ports to support controllers and external peripherals.
- Easy Maintenance: Features replaceable memory components and simple screw-mounted installation for quick servicing.
- Durable Design: Operates reliably within a temperature range of 0–55°C and is protected against static discharge.
- Flexible Integration: Fully compatible with PanelView Plus 700, 1000, 1250, and 1500 terminals.
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Part Number | 2711P-RP1 |
| Product Type | Logic Module |
| Memory | 64 MB RAM, 64 MB Flash |
| Power Supply | 24V DC, 70 W power dissipation |
| Communication Interfaces | RS232, Ethernet (100 m), USB x2, CompactFlash slot |
| Operating Temperature | 0–55°C (32–131°F) |
| Dimensions | 33.0 × 25.4 × 7.6 cm |
| Weight | 1 kg (2.2 lb) |
| Status Indicators | Red and Green LEDs |
| Compatibility | PanelView Plus 700, 1000, 1250, 1500 (not Plus 6) |
| Lifecycle Status | Discontinued / Obsolete |
System Integration
The 2711P-RP1 integrates seamlessly into Rockwell’s automation ecosystem, enabling reliable communication between operator terminals and PLC systems. Moreover, the Ethernet I/P protocol ensures smooth data transfer over long distances, while the CompactFlash slot allows additional storage expansion. This module is ideal for manufacturing plants, energy facilities, and process automation systems that rely on real-time monitoring and control.
Installation & Maintenance
Installation is straightforward — simply secure the module to the display with six screws and connect via the PCI interface. Always power off the display before attaching or removing the logic module. Regular maintenance includes visual inspection and dust cleaning to maintain stable performance and prevent overheating.
FAQ
Q1: Is the 2711P-RP1 compatible with PanelView Plus 6?
No, it is not compatible with the PanelView Plus 6 series. It supports the original PanelView Plus models 700, 1000, 1250, and 1500.
Q2: What is the delivery time and product condition?
All Allen-Bradley 2711P-RP1 modules are brand-new and original. Orders typically ship within 3 days to 2 weeks, depending on quantity. DHL, FedEx, or UPS delivery options are available.
Q3: Do you offer returns for quality issues?
Yes. We support returns within 30 days for any verified quality issues to ensure your satisfaction.
Details
| Weight | 1 kg |
|---|
