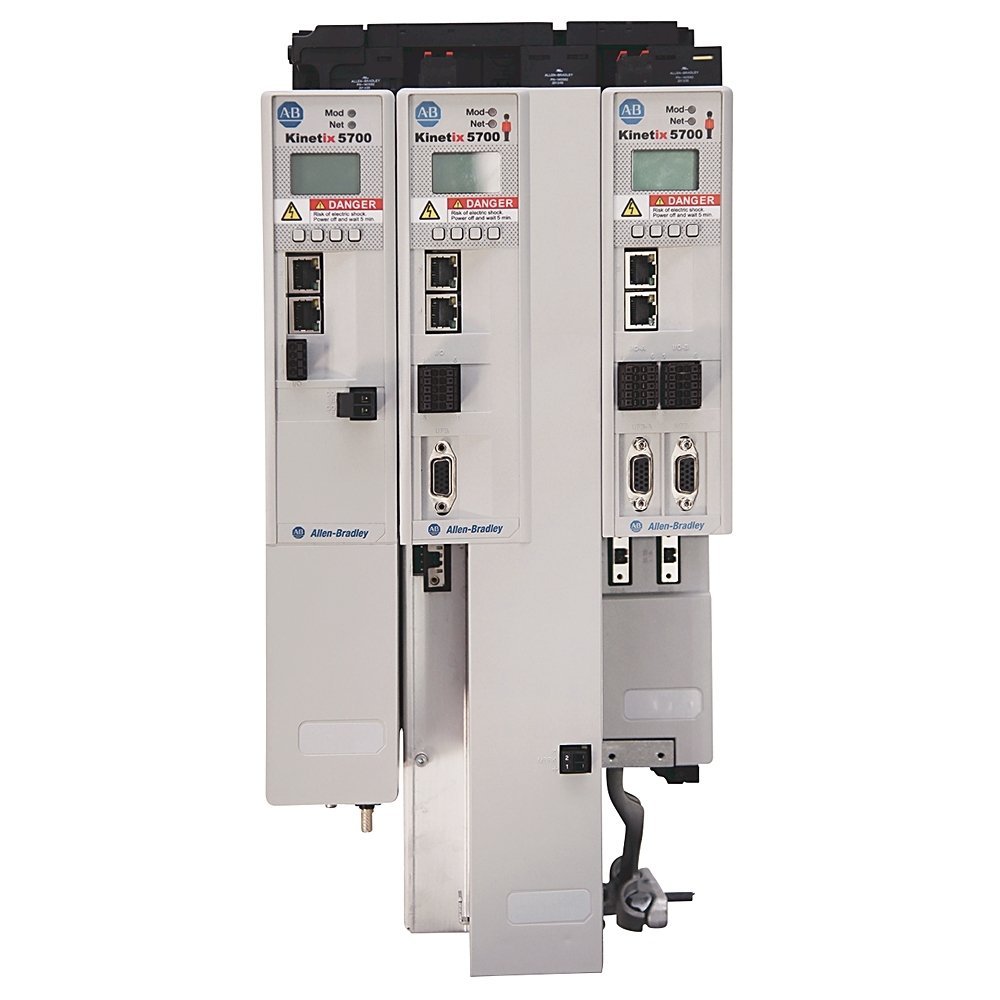

Allen-Bradley 2198-S086-ERS3 Servo Drive | Kinetix 5700 Series
Meta Description:
Allen-Bradley 2198-S086-ERS3 Kinetix 5700 Servo Drive offers high-performance motion control. In stock now, ships via DHL in 3–14 days.
Product Overview
The Allen-Bradley 2198-S086-ERS3 is a high-performance servo drive from the Kinetix 5700 series, engineered for advanced industrial motion control applications.
It delivers precise positioning and torque control for demanding automation systems, supporting continuous operation across diverse industrial environments.
Moreover, the drive integrates advanced protection algorithms, including motor overload and thermal retention, ensuring reliable operation under variable load conditions.
Its compact 85 mm width and robust design make it suitable for space-constrained installations, while maintaining high power output and system efficiency.
Functional Highlights
- Continuous Output Power: 22.5 kW for 240V input, 44.9 kW for 480V input, ensuring stable operation under load.
- Current Ratings: Continuous 60.8 A (0-pk) and peak 121.6 A (0-pk), providing dynamic performance for high-demand applications.
- Motor Protection: Solid-state algorithms estimate motor temperature and prevent overload, meeting UL 61800-5-1 standards.
- Overload Trip Points: 100% overload trips within 8 minutes, 200% within 8 minutes, and 600% within 20 seconds.
- Thermal Retention: Supports firmware-based thermal retention from revision 4.001, improving motor longevity.
- External Temperature Support: Accepts thermistor input for enhanced protection and compliance with motor overload requirements.
Therefore, this servo drive ensures maximum reliability and consistent performance in industrial automation systems.
Technical Data
| Parameter | Specification |
|---|---|
| Model Number | 2198-S086-ERS3 |
| Series | Kinetix 5700 |
| Module Width | 85 mm (3.35 in) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Weight | Approx. 5.21 kg (11.5 lb) |
| Short Circuit Rating | 200,000 A rms symmetrical |
| Branch Circuit Protection | External per NEC/local codes required |
| Continuous Output Current | 60.8 A (0-pk) |
| Peak Output Current | 121.6 A (0-pk) |
| Continuous Output Power | 22.5 kW @240V, 44.9 kW @480V |
| Motor Protection | Solid-state overload with thermal retention |
These specifications provide engineers with the critical parameters needed for system integration and compliance with safety standards.
System Integration
The 2198-S086-ERS3 integrates seamlessly with Allen-Bradley Kinetix 5700 systems and EtherNet/IP networks.
For instance, precise motion control is achieved in robotics, packaging machinery, and conveyor automation.
Moreover, adherence to proper grounding and high-leakage current precautions ensures compatibility with residual current devices (RCDs) or monitors (RCMs).
This drive also supports modular installation, allowing flexible configuration for multi-axis systems in demanding industrial environments.
FAQ
Q1: Is the Allen-Bradley 2198-S086-ERS3 servo drive original and available in stock?
Yes, all units are brand-new, original Allen-Bradley products, in stock for immediate dispatch.
Q2: What is the typical shipping timeframe and method?
Orders usually ship within 3–14 days via DHL, FedEx, or UPS, depending on the order size.
Q3: Can this servo drive protect motors against overload and thermal stress?
Yes, it uses solid-state motor overload algorithms and thermal retention, supporting UL 61800-5-1 compliance.
Details
| Weight | 5.21 kg |
|---|
Reviews
There are no reviews yet.
