Product Overview

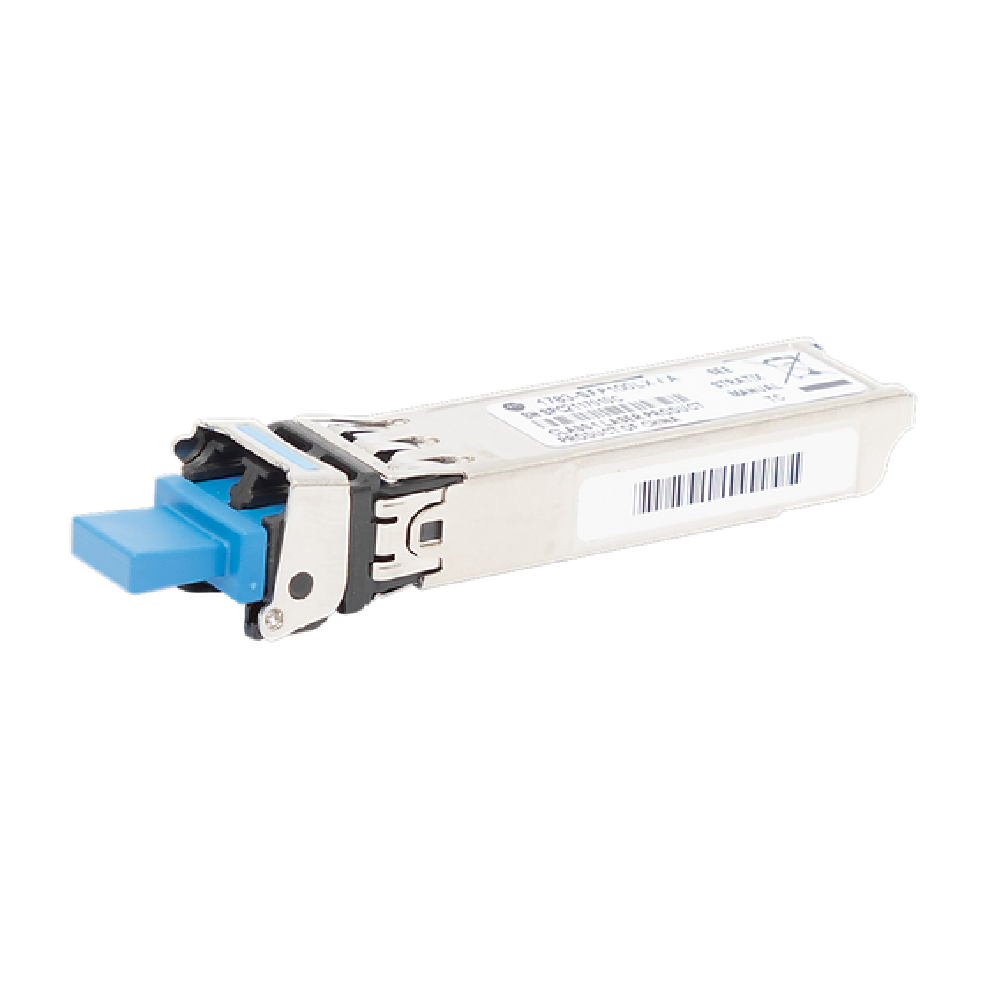

The Allen-Bradley 1783-SFP100LX Stratix Fiber SFP is a 100Base-LX transceiver module designed for single-mode fiber networks. It supports up to 10 km transmission distance at a 1310 nm wavelength, ensuring stable and high-speed communication for industrial Ethernet applications.
Moreover, this SFP is fully compatible with Allen-Bradley Stratix managed switches and supports Digital Optical Monitoring (DOM), allowing real-time tracking of temperature, voltage, and optical power levels. Therefore, it ensures both performance reliability and network transparency in demanding industrial environments.
Functional Highlights
- High-Performance Optical Transmission: Delivers 100Base-LX throughput up to 10 km over single-mode fiber.
- Enhanced Compatibility: Conforms to INF-8074 and SFF-8472 standards, ensuring full interoperability.
- Durable Industrial Design: Features metal housing with low EMI and excellent ESD protection.
- Plug-and-Play Integration: Hot-pluggable design allows quick installation without system downtime.
- Environmental Reliability: Operates within a commercial temperature range of 0°C to 70°C, making it suitable for continuous operation.
- Regulatory Compliance: Meets RoHS 2.0, TAA, and FDA laser safety standards for global use.
In addition, its LC duplex connector simplifies connection with fiber patch cords, improving installation efficiency.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Model | 1783-SFP100LX |
| Data Rate | 100 Mbps (100Base-LX) |
| Wavelength | 1310 nm |
| Fiber Type | Single-Mode (SMF) |
| Connector Type | Duplex LC |
| Transmission Distance | Up to 10 km |
| Power Supply Voltage | 3.15 – 3.45 V DC |
| Power Consumption | < 0.8 W |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| ESD Protection | MIL-STD-883E Method 3015.4 |
| Compliance | INF-8074, SFF-8472, FCC Part 15, EN55022, IEC 60825-1/2 |
| Warranty | Limited Lifetime Warranty |
Furthermore, its robust EMI/EMC shielding minimizes interference, which is crucial for maintaining stable data transfer in factory automation networks.
Application & Integration Scenarios
The Allen-Bradley 1783-SFP100LX is ideal for industrial Ethernet, access, and enterprise networking applications requiring reliable long-distance connectivity. It integrates seamlessly with Stratix switches in distributed control systems, providing dependable fiber-optic communication between PLCs, I/O modules, and supervisory controllers.
Typical Applications Include:
- Industrial control networks and factory automation
- Process and energy management systems
- Remote I/O and distributed Ethernet nodes
- Building and utility infrastructure communications
In addition, this module ensures minimal latency and consistent link performance even under heavy data traffic.
Details
| Weight | 0.1 kg |
|---|
