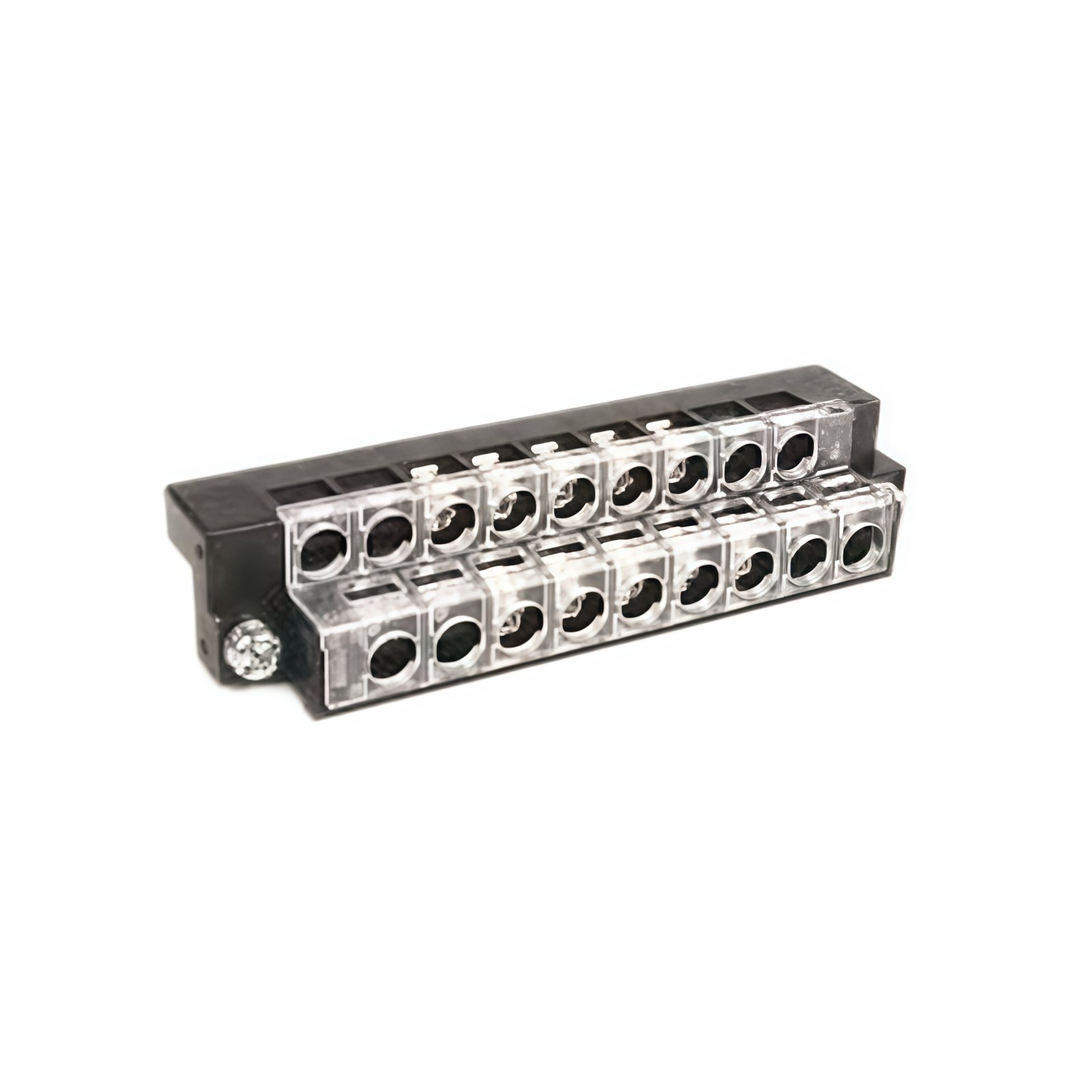

The Allen-Bradley 1769-RTBN10 is a durable and versatile removable terminal block designed for use with CompactLogix systems. This terminal block features a 10-pin NEMA connector, making it an ideal solution for field wiring termination in industrial automation environments. It provides seamless connectivity for 1769 CompactLogix I/O modules, ensuring a secure and efficient installation.
Key Features:
- Connector Type: 10-pin NEMA
- Compatibility: Specifically designed for 1769 CompactLogix I/O modules
- Wire Size Range: 22 to 14 AWG (solid or stranded)
- Locking Mechanism: Screw clamp for secure connections
- Material: Industrial-grade plastic for durability
- Mounting: Snap-on module connection for quick installation
- Orientation: Front removable for easy access
- Certifications: CE, UL listed for industry compliance
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | 1769-RTBN10 |
| Manufacturer | Allen-Bradley |
| Product Type | Removable Terminal Block |
| Product Line | CompactLogix |
| Connector Type | 10-pin NEMA |
| Pin Count | 10 |
| Wire Size Range | 22-14 AWG (solid or stranded) |
| Locking Mechanism | Screw clamp |
| Mounting Type | Snap-on module connection |
| Material | Industrial-grade plastic |
| Orientation | Front removable |
| Certification | CE, UL listed |
| Compatibility | 1769 CompactLogix I/O modules |
| Environment | Industrial control panels |
Performance and Installation
The 1769-RTBN10 is engineered for easy integration into CompactLogix systems. Its snap-on connection simplifies module installation, while the front removable orientation ensures quick access for maintenance or replacement. The terminal block supports a wide range of wire sizes, from 22 AWG to 14 AWG, and accommodates both solid and stranded wire types, offering flexibility for various field wiring tasks.
Details
| Weight | 1.1 kg |
|---|---|
| Dimensions | 160 × 90 × 87 mm |
