High-Density 32-Point Sinking Output for Industrial Automation

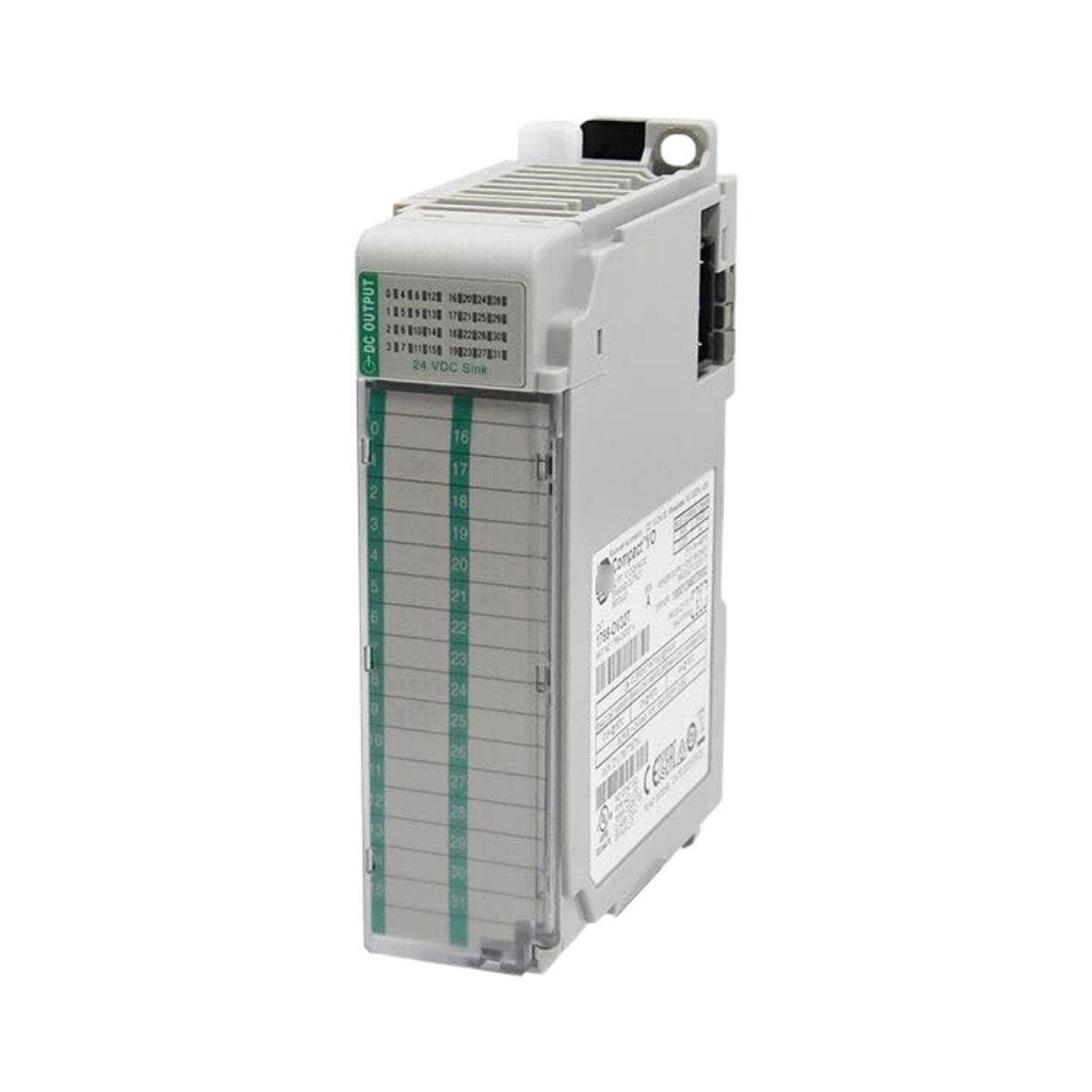

The Allen-Bradley 1769-OV32T provides 32 high-density sinking outputs, delivering reliable 24V DC control in a compact single-slot module. It integrates seamlessly with CompactLogix and MicroLogix controllers for versatile automation solutions.
Key Features and Advantages
- 32 output points for maximum connectivity in industrial systems
- Compact single-slot design saves panel space
- Tongue-and-groove installation ensures fast, secure setup
- Wide voltage range from 10.2 to 26.4 VDC for flexible operation
- Compatible with multiple Allen-Bradley controllers
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Model | 1769-OV32T CompactLogix |
| Output Type | 24V DC Sinking |
| Number of Points | 32 points (two groups of 16) |
| Voltage Range | 10.2–26.4 VDC |
| Current per Point | 0.5 A max |
| Module Width | Single slot |
| Operating Temperature | 0°C to 60°C |
| Wire Size (Solid) | 14–22 AWG |
| Wire Size (Stranded) | 16–22 AWG |
| Enclosure Type | Open (requires protective housing) |
| Mounting | DIN rail or panel |
| Weight | 450 g |
| Origin | USA |
Installation Guidelines
Mount the 1769-OV32T using tongue-and-groove connectors. Ensure the environment is clean, dry, and dust-free. Follow all local electrical safety codes for optimal performance.
System Compatibility
The module works with CompactLogix controllers, MicroLogix 1500 series, 1769-ADN, and 1769-AENTR adapters. It supports industrial DC control applications, including motor drives, solenoids, and actuator systems.
Shipping and Warranty
Ships via FedEx, UPS, or DHL with tracking. The Allen-Bradley 1769-OV32T includes a 12-month manufacturer warranty covering defects and quality issues.
Expert FAQ
Q: What is the difference between sinking and sourcing outputs?
A: Sinking modules receive current, while sourcing modules supply current to loads.
Q: How are the 32 outputs organized?
A: The outputs are arranged in two groups of 16 points each for easier wiring.
Q: What protection does the open enclosure require?
A: Install in a protective cabinet, avoiding debris, moisture, static, and UV light exposure.
Q: Which wire types are supported?
A: Use 14–22 AWG solid wire or 16–22 AWG stranded copper wire for proper connections.
Details
| Weight | 0.45 kg |
|---|---|
| Dimensions | 145 × 35 × 132 mm |
