High-Density TTL Output for Precise Logic Control

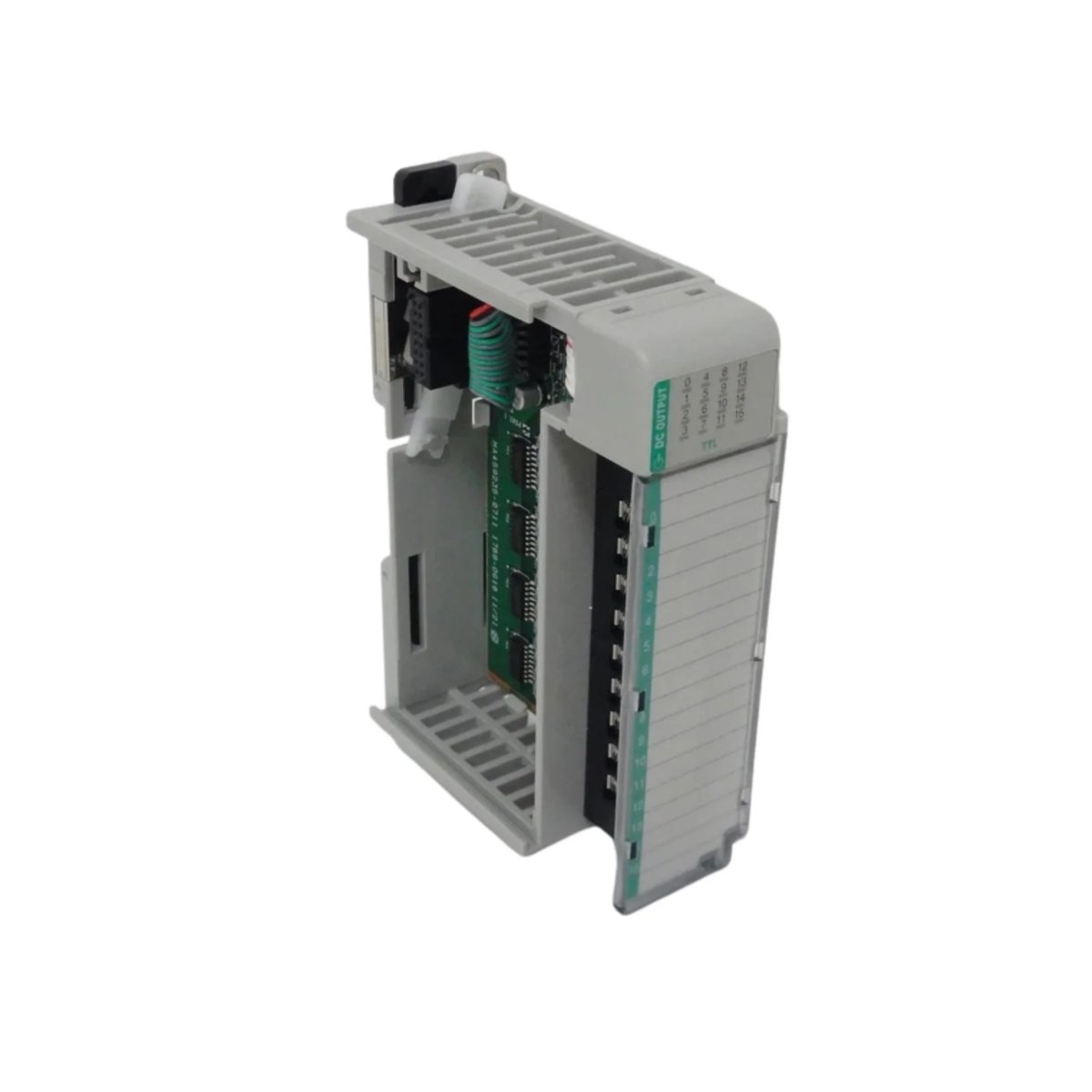

The Allen-Bradley 1769-OG16 delivers 16 high-density TTL outputs for compact, sophisticated automation systems. It provides precise 5V DC control while saving panel space. Moreover, it integrates seamlessly with the 1769 CompactLogix series, enabling efficient system expansion.
Key Features and Benefits
- 16 discrete TTL-compatible output channels for digital logic applications
- Compact design measures only 4.7 x 1.4 x 3.4 inches for space efficiency
- Tongue-and-groove installation supports quick and secure mounting
- Wide compatibility with all 1769 CompactLogix controllers
- Low power consumption at 85 mA from the backplane
Detailed Technical Specifications
| Parameter | Specification |
|---|---|
| Brand & Manufacturer | Allen-Bradley / Rockwell Automation |
| Model Number | 1769-OG16 |
| Module Type | 5V DC TTL Logic Output |
| Output Channels | 16 discrete TTL points |
| On-State Voltage | 0 to 0.4 VDC max |
| Off-State Voltage | 4.5 to 5.5 VDC min |
| Current per Point | 24 mA max sinking current |
| Minimum Load Current | 0.15 mA |
| Module Power | 85 mA at 5V DC |
| Module Dimensions | 4.7 x 1.4 x 3.4 inches |
| Wire Size Solid | 14–22 AWG |
| Wire Size Stranded | 16–22 AWG |
| Mounting Options | DIN rail or panel mount |
| Enclosure Type | Open style (requires protective housing) |
| Operating Environment | Avoid dust, moisture, static, UV |
| Weight | 0.91 kg (2 lb) |
| Origin | USA |
Installation Guidelines
Mount the 1769-OG16 on DIN rails or panel surfaces using tongue-and-groove connectors. Keep the module away from dust, moisture, and UV light. Limit DC and I/O cable lengths to 30 feet for optimal performance.
System Integration and Compatibility
The module integrates with all 1769 CompactLogix controllers and supports standard I/O memory mapping. It connects directly to other 1769 series modules and interfaces efficiently with digital displays, logic circuits, and opto-isolators.
Packaging, Shipping, and Warranty
Each order includes one 1769-OG16 TTL output module. Package dimensions are 8 x 8 x 5 inches, with a shipping weight of 2 lb. Worldwide shipping is available via FedEx, UPS, and DHL. A 12-month warranty protects against manufacturing defects.
Expert FAQ
Q: What is the undefined voltage zone?
A: Voltages between 0.4V and 4.5V cannot guarantee definite on/off states. Avoid this range during normal operation.
Q: What devices can this TTL module control?
A: It controls logic circuits, digital displays, opto-isolators, and other low-power 5V DC devices.
Q: Why is a minimum load current required?
A: A 0.15 mA current ensures proper transistor operation and reliable output detection.
Q: Can I use it in high-vibration environments?
A: Yes, but the open module requires additional protection such as an enclosure in harsh conditions.
