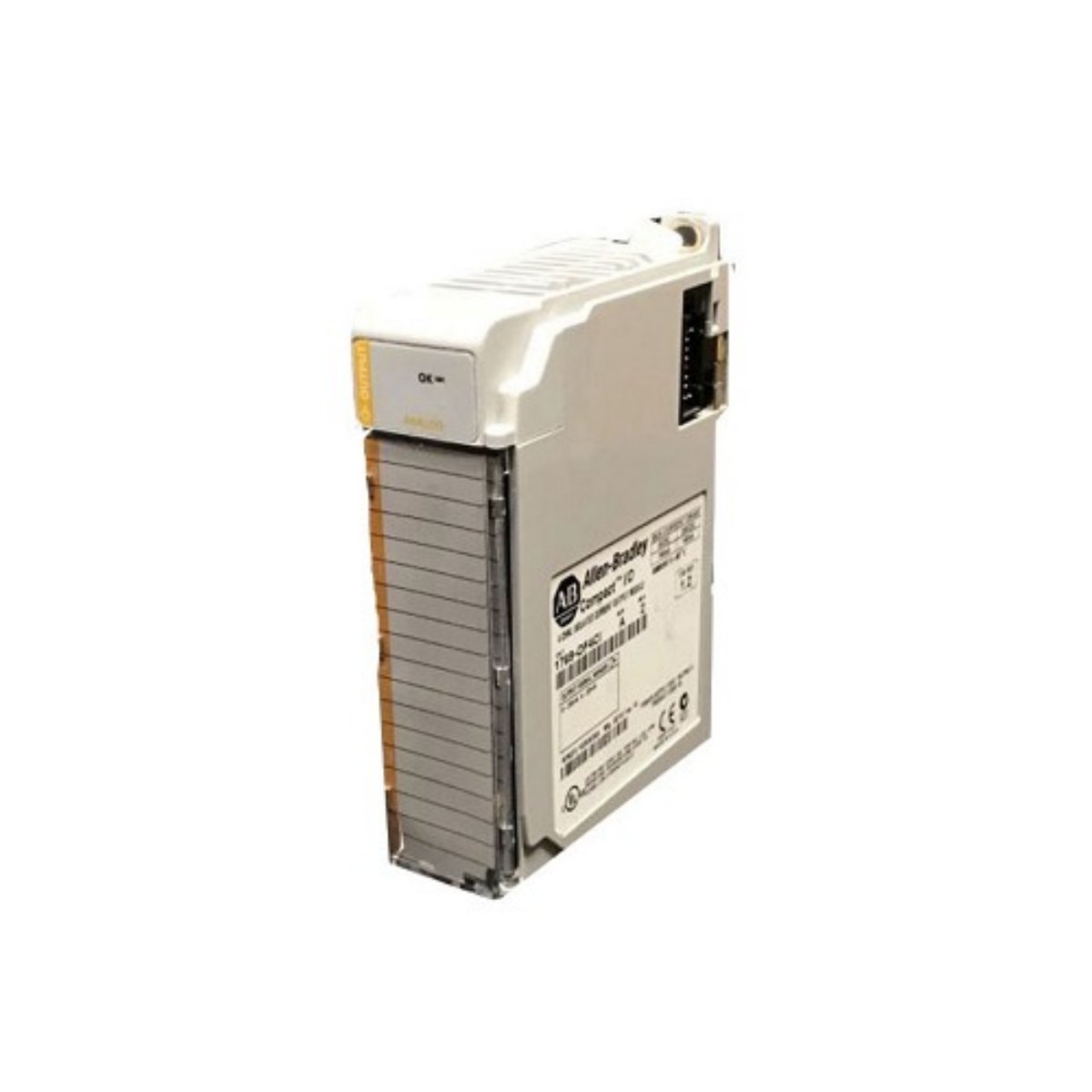

High-Precision Analog Outputs for Industrial Automation
The Allen-Bradley 1769-OF4CI provides four differential, individually isolated analog outputs for precise industrial control. Each channel supports 0–20 mA or 4–20 mA signals, driving actuators and devices reliably. Moreover, it integrates directly with MicroLogix 1500 and CompactLogix controllers for flexible automation applications.
Key Features and Advantages
- Four independently isolated analog output channels for reliable multi-device control
- Supports 0–20 mA and 4–20 mA current ranges for versatile industrial signals
- Compact single-slot design saves panel space without sacrificing performance
- Compatible with all 1769 CompactLogix controllers, including series A and B
- High-resolution 16-bit output ensures precise current regulation and signal stability
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand & Manufacturer | Allen-Bradley / Rockwell Automation |
| Model Number | 1769-OF4CI |
| Product Line | CompactLogix |
| Module Type | 4-Channel Analog Output Module |
| Number of Outputs | Four differential, individually isolated channels |
| Output Current Range | 0–20 mA, 4–20 mA |
| Full Scale Analog Range | 0–21 mA, 3.2–21 mA |
| Analog Data Format | Raw / proportional / engineering units / PID scaled |
| Conversion Rate | 110 ms |
| Digital Resolution | 16-bit unipolar; 0.323 µA/bit |
| Wire Type | Copper |
| Solid Wire Size | 14–22 AWG |
| Stranded Wire Size | 16–22 AWG |
| Non-Linearity | ±0.05% full scale |
| Slot Width | 1 |
| Power Supply Compatibility | 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4 |
| Recommended Communication Cable | Belden 8761 (shielded) |
| Mounting Options | DIN rail or panel mount |
| Weight | 0.26 kg (0.56 lbs) |
| Dimensions | 4.7 x 1.4 x 3.4 inches |
| Module Origin | USA |
Installation Guidelines
Install the 1769-OF4CI on a DIN rail or panel using tongue-and-groove connectors. Maintain a clean, dry environment, avoiding dust, moisture, and static. Limit DC and I/O cable lengths to 30 feet to maintain signal integrity.
System Integration and Compatibility
The module integrates with MicroLogix 1500 and all 1769 CompactLogix controllers. It supports PID control, proportional scaling, and direct actuator interfaces. Engineers can connect multiple modules in a stack for expanded system functionality.
Shipping and Warranty
Each 1769-OF4CI ships individually in secure packaging. The module ships worldwide via FedEx, UPS, and DHL. Allen-Bradley provides a 12-month manufacturer warranty covering defects in materials and workmanship.
Expert FAQ
Q: Can this module control multiple devices simultaneously?
A: Yes, the four isolated outputs allow independent control for separate actuators and devices.
Q: Does this module require field calibration?
A: No, the hardware design guarantees accurate output without any field calibration.
Q: Which wire types are compatible?
A: Use 14–22 AWG solid or 16–22 AWG stranded copper wires for all connections.
Q: Can this module operate in harsh environments?
A: Yes, but install it in a protective enclosure to prevent dust, moisture, or vibration interference.
Details
| Weight | 0.26 kg |
|---|---|
| Dimensions | 11.94 × 3.56 × 8.64 mm |
