Overview

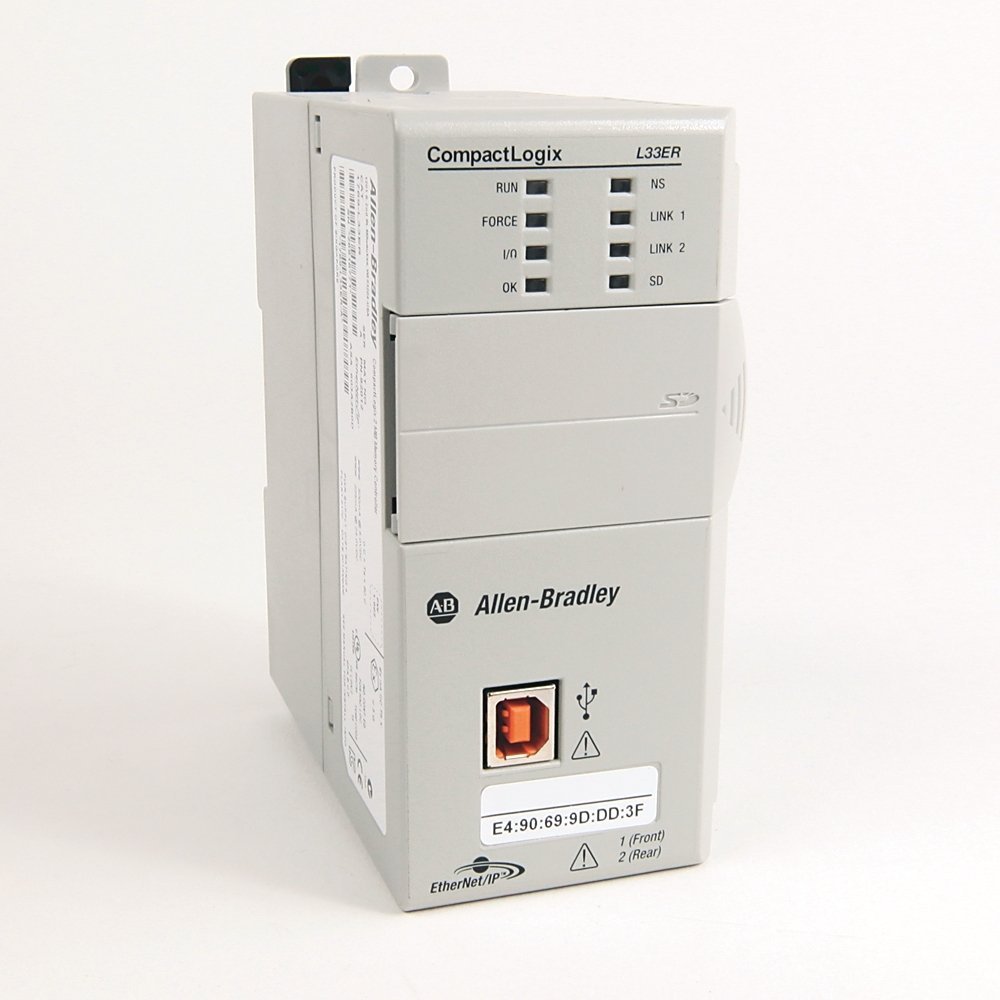

The 1769-L33ER CompactLogix 5370 L3 is a versatile Ethernet processor module designed for medium-sized industrial automation applications. It combines a modular, cost-effective architecture with powerful processing capabilities, supporting both local and distributed I/O. Its dual Ethernet ports enable seamless integration with EtherNet/IP networks, while USB support simplifies configuration and troubleshooting.
Key Features
- Memory: 2MB built-in user memory, expandable via 1784-SD1 (1GB) or 1784-SD2 (2GB) SD cards
- Communication:
- Dual Ethernet ports supporting EtherNet/IP (10/100 Mbps, auto-negotiation)
- 1 USB port for configuration and diagnostics
- Supports up to 32 Ethernet nodes
- I/O Support:
- Up to 16 local I/O modules
- Up to 3 expansion banks via compatible expansion cables
- Compatible with 1769-SDN DeviceNet scanner modules
- Power Requirements:
- Backplane current draw: 560 mA @ 5 VDC
- Power dissipation: 4.5 W
- Mounting Options: DIN rail or panel mounting
- Operating Environment: 0°C to 60°C, 0–95% non-condensing humidity, vibration 10–500 Hz, 5G
Specifications
| Attribute | Details |
|---|---|
| Part Number | 1769-L33ER |
| Product Family | CompactLogix 5370 |
| Communication Ports | 1 USB, 2 Ethernet |
| Local I/O Modules Supported | 16 |
| Maximum I/O Modules | 32 |
| Number of Tasks | 32 |
| Programs per Task | 100 |
| Power Supply Compatibility | 1769-PA4, 1769-PA2, 1769-PB4 |
| Certifications | c-UL-us, CE, C-Tick, CI |
| Dimensions (L x W x H) | 8 × 8 × 5 in |
| Weight | 0.68 lbs (0.31 kg) |
Applications
- Machine control and process automation
- Material handling systems
- Integration with HMI, SCADA, and enterprise-level control systems
- Medium-scale industrial automation requiring flexible, Ethernet-enabled processing
Details
| Weight | 0.308 kg |
|---|---|
| Dimensions | 203 × 203 × 127 mm |
