Overview

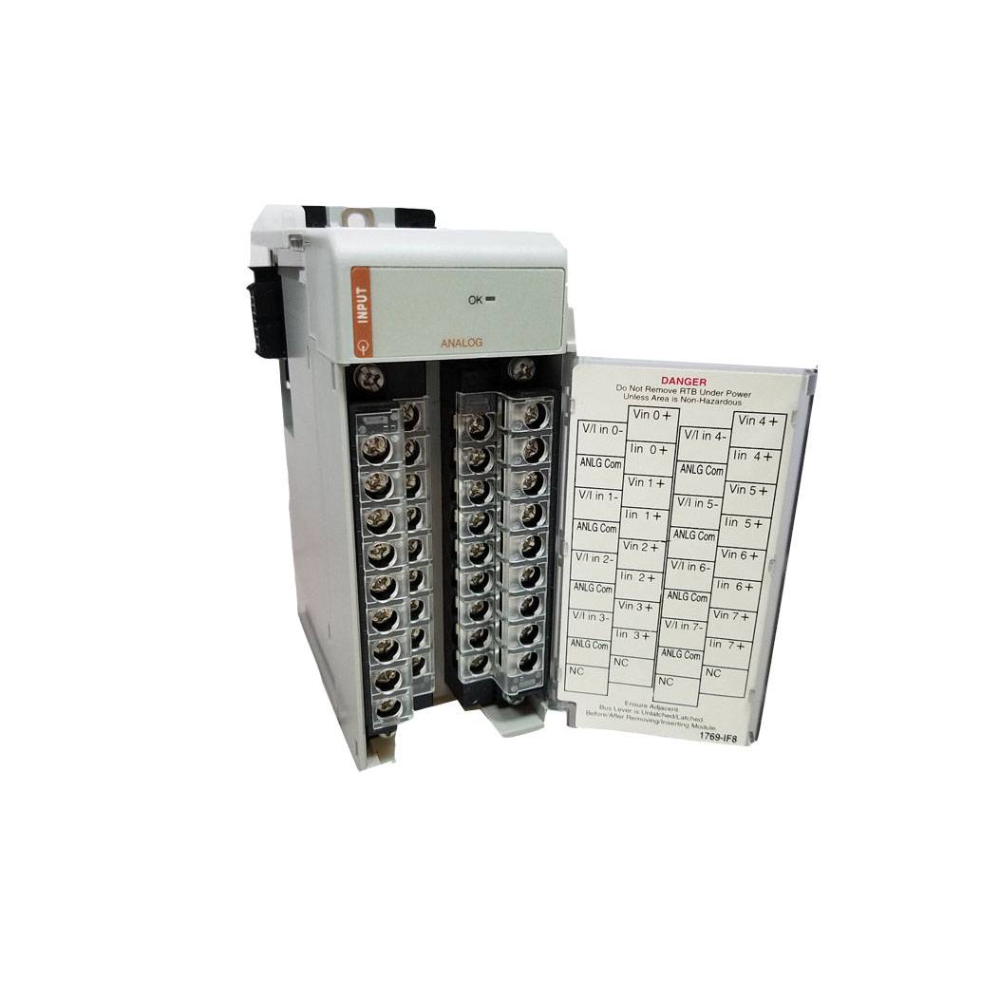

The Allen-Bradley 1769-IF8 is a Compact I/O analog input module with eight (8) input channels. It connects directly to field devices that send 0–21 mA or ±10V DC analog signals, ensuring precise data acquisition in automation systems. Moreover, it works seamlessly with the 1769 CompactLogix chassis or MicroLogix 1500 controller, making it a reliable solution for industrial control applications.
General Specifications
| Specification | Value |
|---|---|
| Dimensions | 118 mm (H) × 87 mm (D) × 52.5 mm (W); with tabs: 138 mm |
| 4.65 in. × 3.43 in. × 2.07 in.; with tabs: 5.43 in. | |
| Shipping Weight | 450 g (0.99 lbs) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Operating Humidity | 5% to 95%, non-condensing |
| Operating Altitude | Up to 2000 m (6561 ft) |
| Vibration | 10–500 Hz, 5G, 0.030 in. peak-to-peak |
| Shock | 30G (11 ms, panel mounted) / 20G (DIN mounted) |
| Agency Certification | C-UL (CSA C22.2 No.142), UL 508, CE compliant |
| Hazardous Class | Class I, Div 2, Groups A–D (UL 1604 / CSA C22.2 No.213) |
| Radiated Emissions | EN50081-2 Class A |
| Electrical/EMC | ESD: 4 kV contact, 8 kV air; Radiated Immunity: 10 V/m (80–1000 MHz) |
| Fast Transient: 2 kV / 5 kHz; Surge: 1 kV; Conducted: 10 V (0.15–80 MHz) |
Input Specifications
| Specification | Value |
|---|---|
| Analog Operating Ranges | Voltage: ±10V, 0–10V, 0–5V, 1–5V Current: 0–20 mA, 4–20 mA |
| Full Scale Ranges | Voltage: ±10.5V, 0–10.5V, 0–5.25V Current: 0–21 mA, 3.2–21 mA |
| Number of Inputs | 8 differential or single-ended |
| Bus Current Draw | 120 mA at 5V DC, 70 mA at 24V DC |
| Heat Dissipation | 3.24 W |
| Converter Type | Delta Sigma |
| Resolution | 16-bit (unipolar), 15-bit + sign (bipolar) |
| Working Voltage | 30V AC/DC |
| Common Mode Range | ±10V DC per channel |
| Rejection Ratio | Common: >60 dB @ 50/60 Hz Normal: -50 dB @ 50/60 Hz |
| Input Impedance | Voltage: 220KΩ Current: 250Ω |
| Accuracy | Voltage: ±0.2% FS @ 25°C Current: ±0.35% FS @ 25°C |
| Temperature Drift | Voltage: ±0.003%/°C Current: ±0.0045%/°C |
| Calibration | Auto-calibration during configuration or channel enable |
| Repeatability | ±0.03% |
| Overload Protection | Voltage: ±3V DC continuous Current: ±32 mA continuous |
| Isolation | 500V AC (1 min); 30V AC/DC working voltage (IEC Class 2) |
| Recommended Cable | Belden™ 8761 (shielded) |
Key Features
- Supports both voltage and current input types.
- Provides 16-bit resolution for precise analog signal reading.
- Features automatic calibration to maintain signal accuracy.
- Complies with UL, CE, and CSA industrial standards.
- Designed for compact installations with DIN or panel mounting.
- Built to operate under wide environmental conditions.
- Integrated diagnostics and LED indicators for quick fault detection.
Notes
- The over- or under-range flag indicates when input limits are exceeded.
- Resolution depends on the selected input filter.
- Both positive and negative terminals must stay within ±10V DC of analog common.
- Accuracy includes offset, gain, non-linearity, and repeatability errors.
- Damage may occur if input values exceed rated limits.
