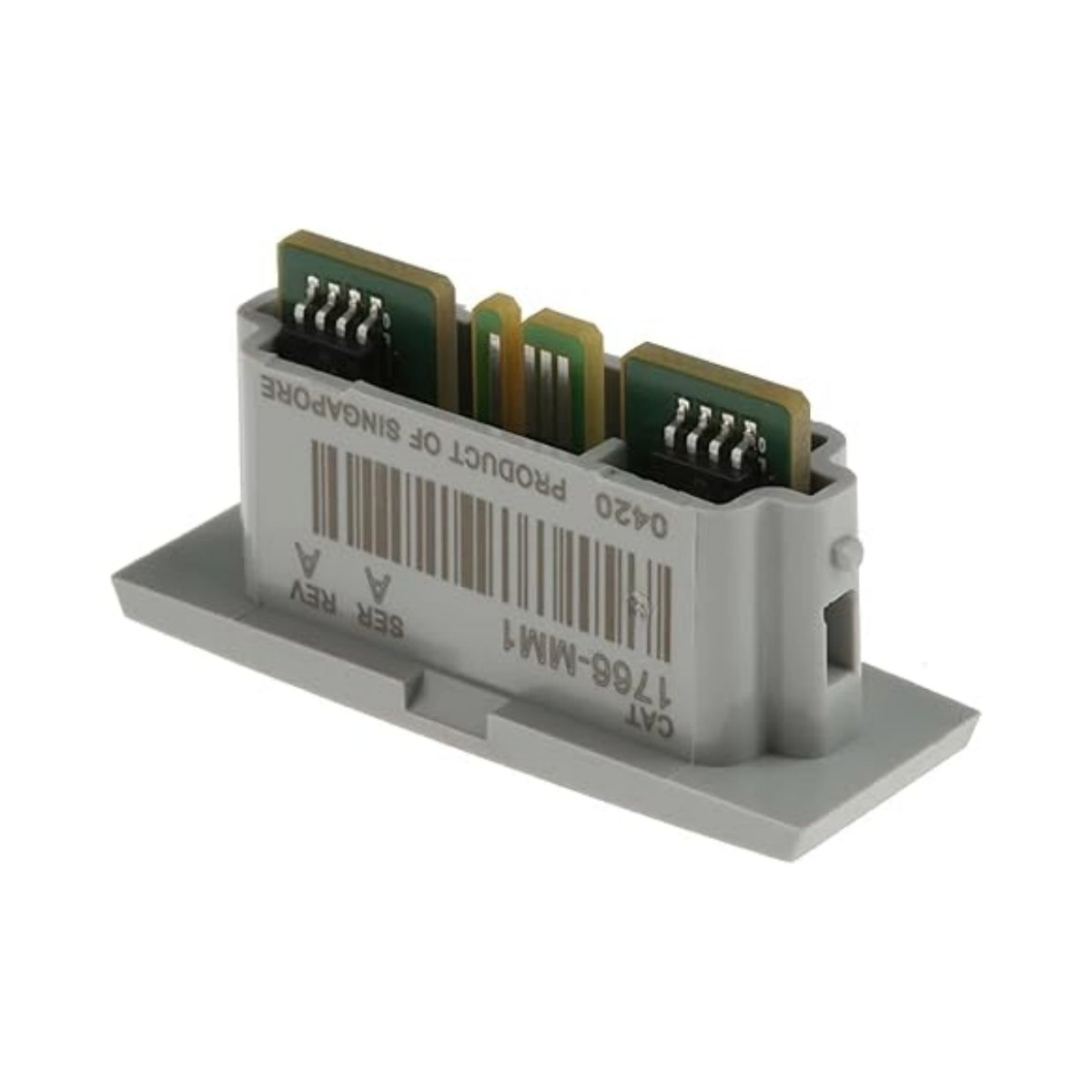

Reliable Memory Expansion for MicroLogix 1400 Controllers
The Allen-Bradley 1766-MM1 provides 384 KB additional memory for MicroLogix 1400 controllers. Moreover, it safeguards program data and prevents accidental loss. Therefore, this module ensures operational continuity and enables fast recovery during power cycles.
Technical Specifications
| Specification | Details |
|---|---|
| Brand & Series | Allen-Bradley MicroLogix 1400 Accessory |
| Model Number | 1766-MM1 Memory Expansion Module |
| Memory Capacity | 384 KB additional storage |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Controller Compatibility | 1766-L32AWA, 1766-L32AWAA, 1766-L32BWA |
| Additional Compatible Models | 1766-L32BWAA, 1766-L32BXB, 1766-L32BXBA |
| Module Type | Removable memory expansion |
| Indicators & Status Bits | S:1/10, S:1/11, S:1/12 monitor module operation |
| Dimensions | 3.2 × 5.7 × 1.2 inches (81 × 145 × 30 mm) |
| Weight | 0.55 lbs (0.25 kg) |
| Country of Origin | USA |
Installation and Operation Guidelines
Insert 1766-MM1 into the MicroLogix 1400 memory slot. Remove protective cover before installation. The controller recognizes the module after a power cycle, even if hot-swapped. Configure and load programs using system prompts. Transfer data as required. Note that this module does not increase the controller’s integrated memory.
Packaging and Shipping Details
- Genuine Allen-Bradley 1766-MM1 memory module
- Complete installation and operation documentation
- Shipped worldwide via FedEx, UPS, or DHL
- Secure anti-static packaging ensures safe transit
- Fast processing and dispatch from stock
Warranty and Technical Support
- 12-month manufacturer warranty
- Expert guidance for installation and program backup
- Replacement for defective units
- Technical support for configuration and memory management
Details
| Weight | 0.25 kg |
|---|---|
| Dimensions | 81 × 145 × 30 mm |
