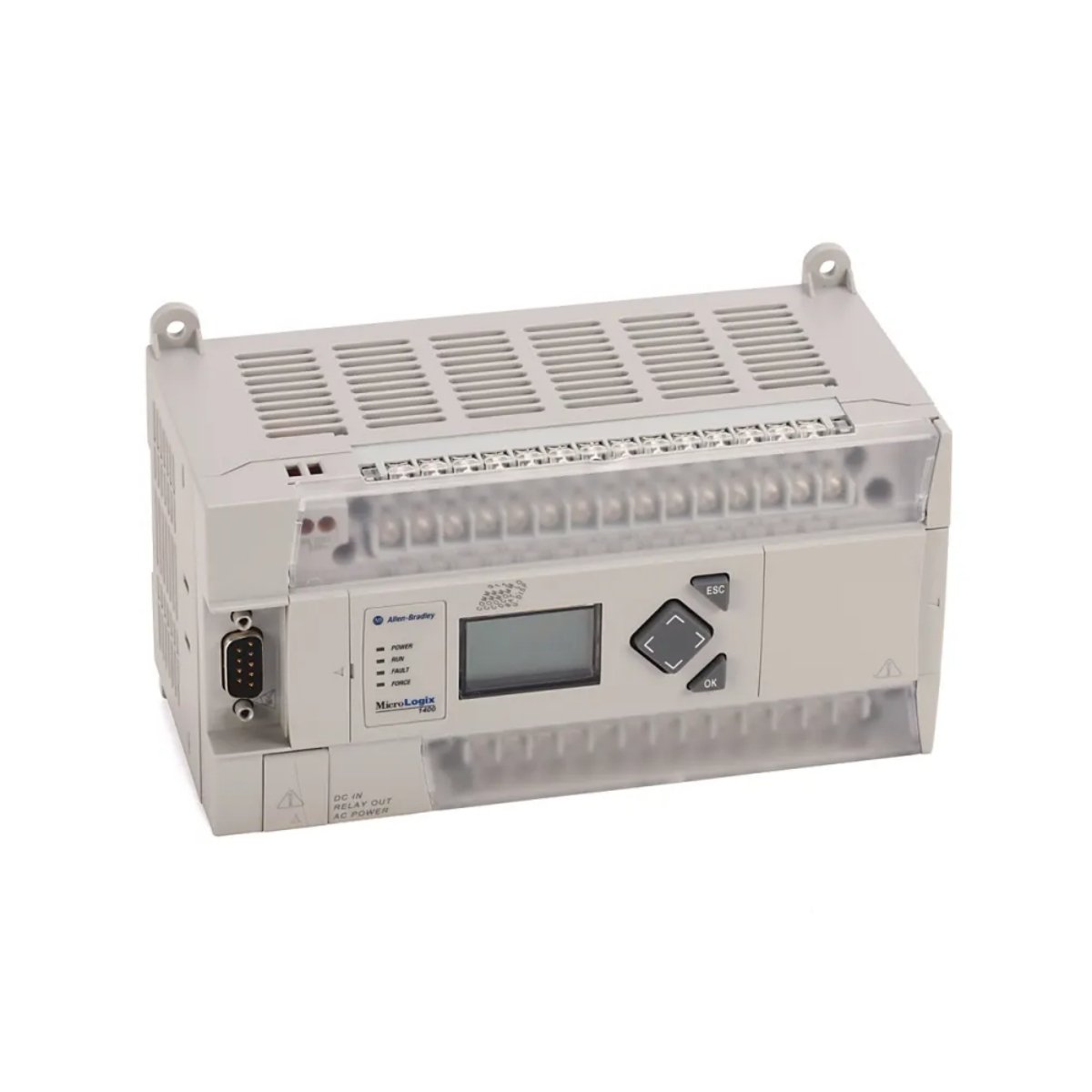

High-Performance DC-Powered Industrial Controller
The Allen-Bradley 1766-L32BXBA delivers advanced control for precision industrial applications. Moreover, it supports fast response and analog operations, ensuring optimized process control. Therefore, it suits manufacturing and automation systems requiring high-speed counting and mixed I/O configurations.
Premium I/O and Communication Features
This controller provides a versatile mix of digital and analog I/O channels. In addition, its integrated Ethernet and serial communication ports enable flexible network integration. The built-in real-time clock maintains accurate timekeeping for event logging and scheduled tasks.
Technical Specifications
| Specification | Details |
|---|---|
| Brand & Series | Allen-Bradley MicroLogix 1400 |
| Model | 1766-L32BXBA |
| Input Power | 24VDC |
| Inrush Current | 15A for 20 ms |
| Fast DC Inputs | 12 points, 24VDC, supports high-speed counting up to 100 kHz |
| Standard DC Inputs | 8 points, 24VDC |
| Relay Outputs | 6 points |
| Transistor Outputs | 6 points (3 fast + 3 normal) |
| Analog Inputs | 4 channels, 0-10VDC |
| Analog Outputs | 2 channels, 0-10VDC |
| User Program Memory | 20 KB |
| High-Speed Counters | 6 channels, maximum 100 kHz |
| Communication Ports | Ethernet + 2 serial ports (RS-232/RS-485) |
| Expansion Modules | Up to 7 modules |
| Dimensions | 90 × 180 × 87 mm |
| Weight | 2 lbs (0.91 kg) |
| Memory Backup Battery | 1746-BA battery for RAM and RTC |
| Country of Origin | USA |
Installation and Operation Guidelines
Mount 1766-L32BXBA on a DIN rail or panel within an industrial enclosure. Connect a 24VDC power supply. Follow manufacturer wiring instructions carefully. Moreover, ensure adequate clearance for ventilation and easy maintenance.
Shipping and Warranty
Includes a 12-month quality warranty. Ships securely via FedEx, UPS, or DHL. Anti-static packaging prevents damage during transit. Orders are processed promptly for fast delivery worldwide.
Resources and Documentation
- Installation guide
- Programming manual
- Wiring diagrams
- Application examples
- Technical data sheets
Download the complete technical manual for full guidance and configuration instructions.
Frequently Asked Technical Questions
Q: How many fast input channels are available?
A: 12 fast inputs support counting up to 100 kHz for high-speed operations.
Q: How many analog channels does it provide?
A: 4 analog inputs and 2 analog outputs for precise process control.
Q: Which battery maintains memory backup?
A: 1746-BA battery supports RAM and real-time clock retention.
Q: Can I expand the I/O capacity?
A: Yes, the controller supports up to 7 additional expansion modules.
Q: What protocols does the Ethernet port support?
A: EtherNet/IP, MODBUS TCP/IP, and DNP3 for industrial automation networks.
