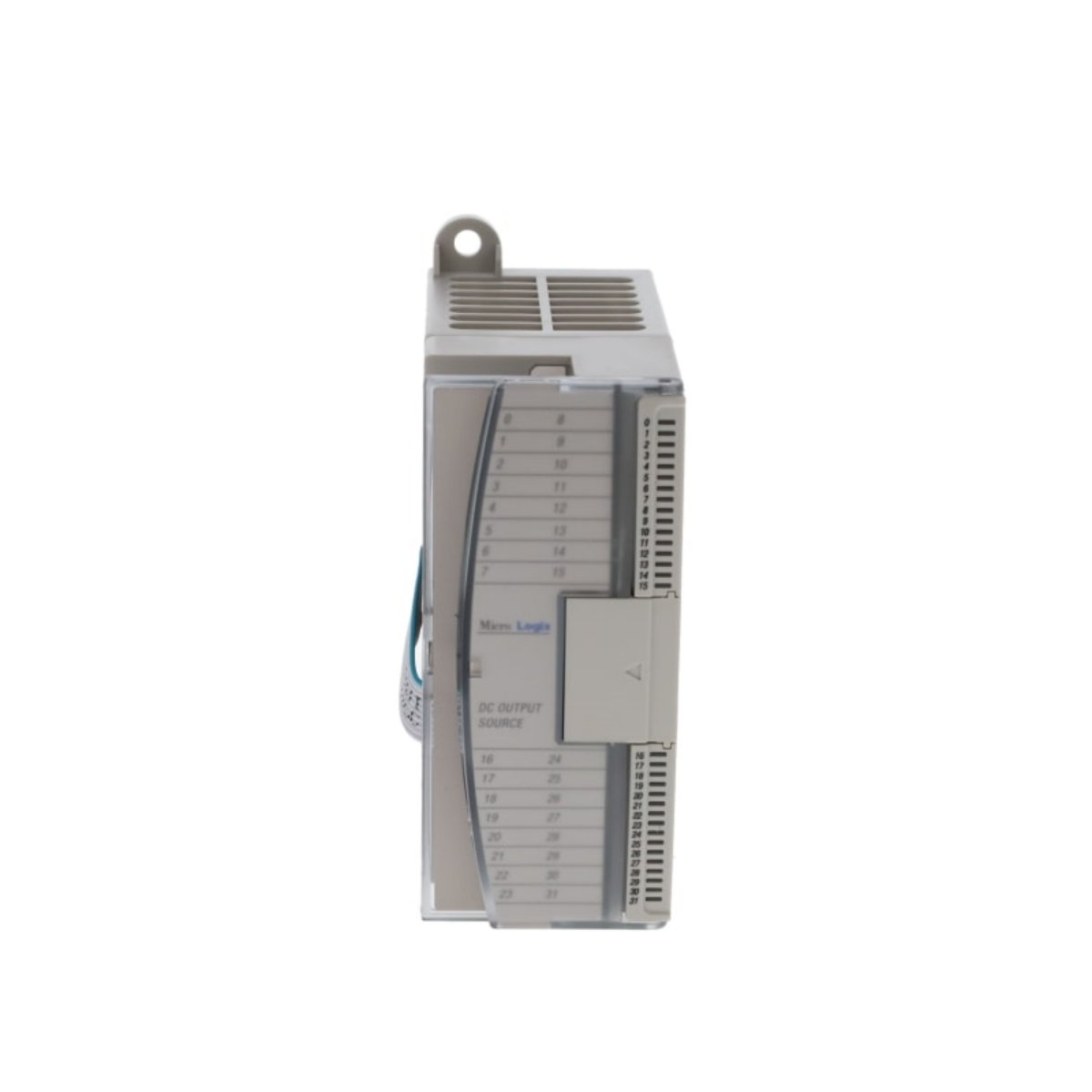

High-Density Sinking Output Module for Industrial Automation
The Allen-Bradley 1762-OV32T delivers 32 solid-state sinking outputs in a compact design. Therefore, it efficiently converts MicroLogix 1200 digital signals to control relays, actuators, and industrial devices. Moreover, this module supports a wide voltage range and operates reliably under harsh industrial conditions. Consequently, it ensures precise output control and system stability.
Core Technical Specifications
| Specification | Details |
|---|---|
| Brand & Series | Allen-Bradley MicroLogix 1200 Expansion |
| Model Number | 1762-OV32T Sinking Output Module |
| Output Type | 32 sinking outputs |
| Operating Voltage | 10.2–26.4V DC |
| Power Consumption | 175 mA maximum at 5V DC bus current |
| Heat Dissipation | 2.7 kW at 26.4V DC maximum |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Maximum Altitude | 2000 m (6562 ft) without derating |
| Humidity Range | 95% max relative humidity, non-condensing |
| Enclosure Rating | IP20 |
| Pollution Degree | Level 2 |
| Dimensions | 90 x 40.4 x 87 mm (3.54 x 1.59 x 3.43 in) |
| Weight | 200 g (7.05 oz) |
| Mounting Requirements | DIN rail, 50.8 mm clearance for ventilation |
Installation and Setup
First, mount the 1762-OV32T securely on a DIN rail inside an IP20 enclosure. Then, connect 24V DC loads following proper wiring standards. Next, maintain 50.8 mm clearance around the module for heat dissipation. Moreover, ensure grounding to reduce electrical noise and follow Pollution Degree 2 guidelines. Consequently, the module performs optimally under industrial conditions.
Packaging and Shipping
The Allen-Bradley 1762-OV32T comes with complete installation and user documentation. In addition, we provide worldwide shipping via FedEx, UPS, and DHL with anti-static protection. Each module weighs approximately 200 grams (7.05 ounces), ensuring convenient handling and storage.
Warranty and Technical Support
This output module includes a 12-month comprehensive warranty. Furthermore, our technical support team assists with installation, wiring, and system integration. As a result, customers benefit from reliable operation and prompt replacement for warranty claims.
Frequently Asked Questions
What types of loads can the sinking outputs drive?
The module controls DC loads such as relays, solenoids, and indicator lights efficiently.
Does this module require external protection?
Yes, install inside an IP20-rated enclosure to prevent dust and accidental contact.
What is the maximum operating altitude?
The module performs at full capacity up to 2000 meters above sea level.
How much clearance is required for installation?
Maintain at least 50.8 mm around the module for proper heat dissipation.
Can this module handle liquid exposure?
No, the IP20 rating only protects against solid particles, not liquids or ice.
Origin: United States
Dimensions & Weight: 90 x 40.4 x 87 mm, 200 g
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 90 × 40.4 × 87 mm |
