Overview

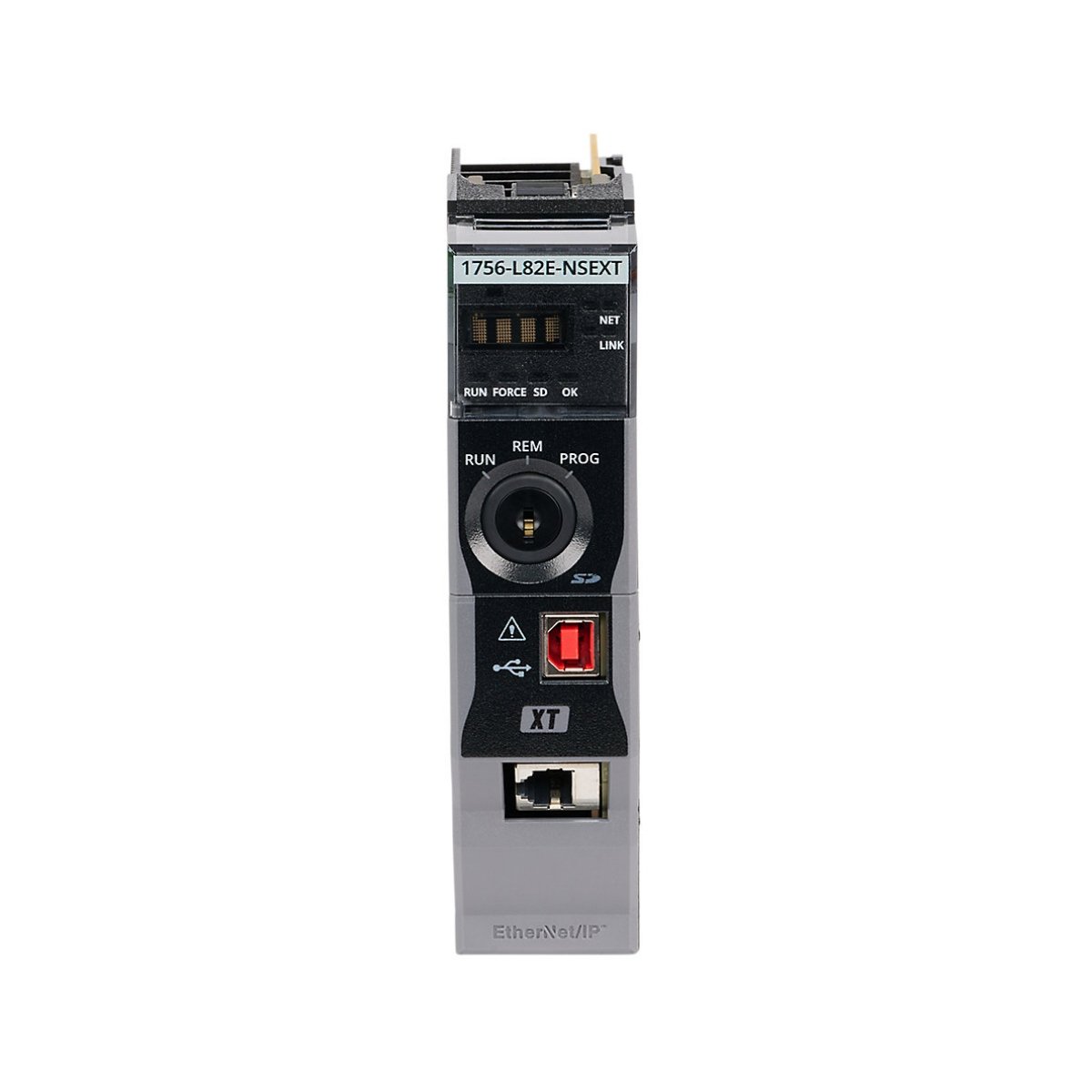

The 1756-L82E-NSE controller from Allen-Bradley delivers fast processing within the ControlLogix 5580 platform. It uses NSE (No Stored Energy) technology to support safer handling during installation and maintenance. Moreover, it manages complex automation tasks through its 3MB memory and flexible communication interfaces.
Key Features
The Allen-Bradley 1756-L82E-NSE improves system efficiency because it supports multiple tasks, scalable programs, and broad industrial network access. Furthermore, it simplifies engineering through USB and Ethernet connectivity while maintaining consistent performance under vibration and shock.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756-L82E-NSE |
| Series | ControlLogix 5580 |
| Type | Industrial Controller |
| User Memory | 3 MB |
| Nonvolatile Memory | 2 GB optional |
| Controller Tasks | 32 |
| Programs per Task | 1000 |
| Communication Ports | 1 USB, 1 Ethernet |
| Current Draw | 1.2 A @ 5.1V DC / 5 mA @ 1.2V DC |
| Thermal Dissipation | 21.2 BTU/hour |
| Isolation Voltage | 50V continuous |
| Vibration Rating | 2G @ 10–500 Hz |
| Shock Rating | 30G operating |
| Humidity Range | 5%–95% non-condensing |
| Weight | 0.394 kg |
| Energy Storage | NSE (No Stored Energy) |
Dimensions & Weight
- Weight: 0.394 kg
- Dimensions: Same form factor as standard ControlLogix 5580 controllers
Communication Capabilities
The 1756-L82E-NSE integrates seamlessly with modern and legacy systems because it supports:
- EtherNet/IP
- ControlNet
- DeviceNet
- Remote I/O
- DH+
- SynchLink
- Third-party industrial networks
Programming Support
Engineers configure the controller using:
- Relay Ladder Logic
- Structured Text
- Function Block Diagram
- Sequential Function Chart
Safety & Warranty
This 1756-L82E-NSE controller includes a 12-month warranty and ships globally via DHL, UPS, and FedEx. NSE technology enhances workplace safety since it removes stored electrical energy inside the module.
Frequently Asked Questions
What does NSE mean?
NSE stands for No Stored Energy and reduces residual electrical hazards.
How much memory is available?
It carries 3MB user memory and supports optional 2GB nonvolatile storage.
How strong is the shock tolerance?
The controller withstands 30G operating shock for stable performance.
Which programming languages are supported?
It supports Ladder Logic, Structured Text, Function Block, and SFC.
Which communication options are provided?
It includes USB, Ethernet, and multiple industrial network protocols.
Origin
United States
Details
| Weight | 0.394 kg |
|---|---|
| Dimensions | 55 × 115 × 160 mm |
