Product Overview

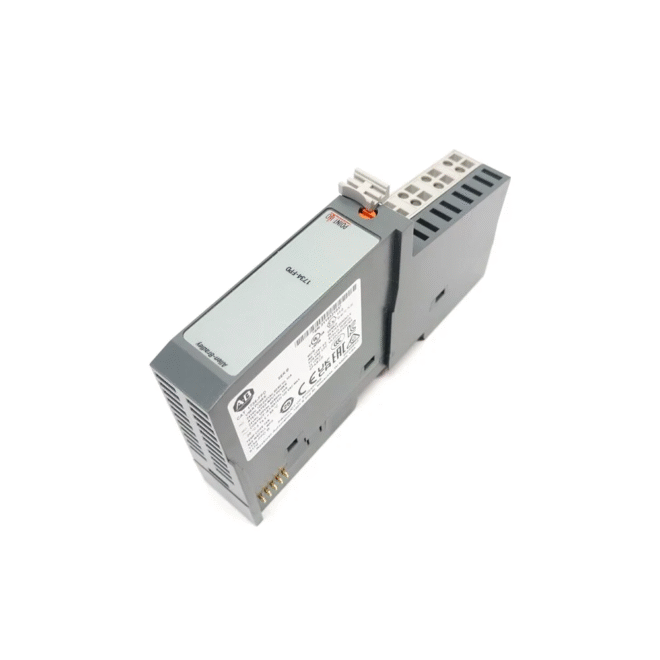

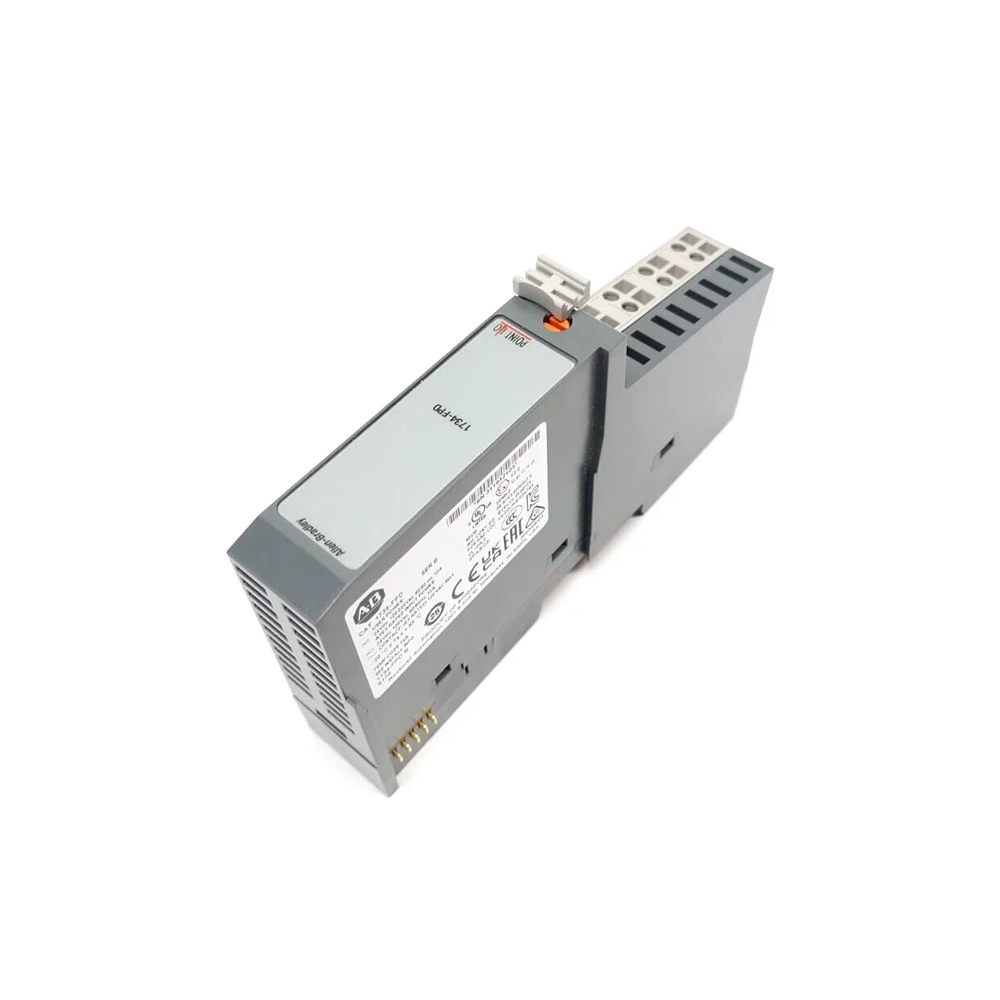

The Allen-Bradley 1734-FPD is a POINT I/O Field Power Distributor module that simplifies voltage distribution in automation systems. It delivers flexible power handling for both DC and AC field-side devices, ensuring seamless integration with the POINT I/O family. Its compact DIN-rail design makes installation straightforward in distributed control environments.
Key Features
- Supports 12/24 VDC or 120/240 VAC input power.
- Provides up to 10 A field supply current for connected I/O modules.
- Ensures 250 V continuous isolation voltage for reliable operation.
- Pass-through POINTBus™ current with no power consumption or thermal dissipation.
- DIN-rail mountable for easy system expansion and wiring.
- Compatible with all Allen-Bradley POINT I/O modules.
Technical Specifications
| Specification | Detail |
|---|---|
| Input Voltage (Nominal) | 12 VDC, 24 VDC, 120 VAC, 240 VAC |
| Input Voltage Range | 10…28.8 VDC / up to 264 VAC |
| Field Power Bus Supply Voltage | DC: 12/24 V (10…28.8 VDC) / AC: 120/240 VAC 50/60 Hz |
| Field Power Bus Supply Current | 10 A max |
| Isolation Voltage | 250 V continuous |
| POINTBus™ Current | Pass-through (no load) |
| Power Consumption / Dissipation | None |
| Connect Terminals | L1: 6, L2/N: 4, Chassis Ground: 2 |
| Terminal Screw Torque | 0.6 N·m (7 lb·in) |
| Dimensions | 76.2 × 25.4 × 133.4 mm (3.00 × 1.00 × 5.25 in.) |
| Weight | 0.12 kg (0.27 lb) |
| Mounting | DIN rail |
| Indicators | None |
| Module Location | Installed between I/O modules in the 1734 system |
Applications
The 1734-FPD is ideal for distributing field power in modular automation systems. It supports both DC and AC loads, enabling users to extend POINT I/O banks while maintaining proper voltage segmentation. Typical uses include machine control, distributed I/O in process automation, and flexible system expansions requiring multiple power domains.
