Overview

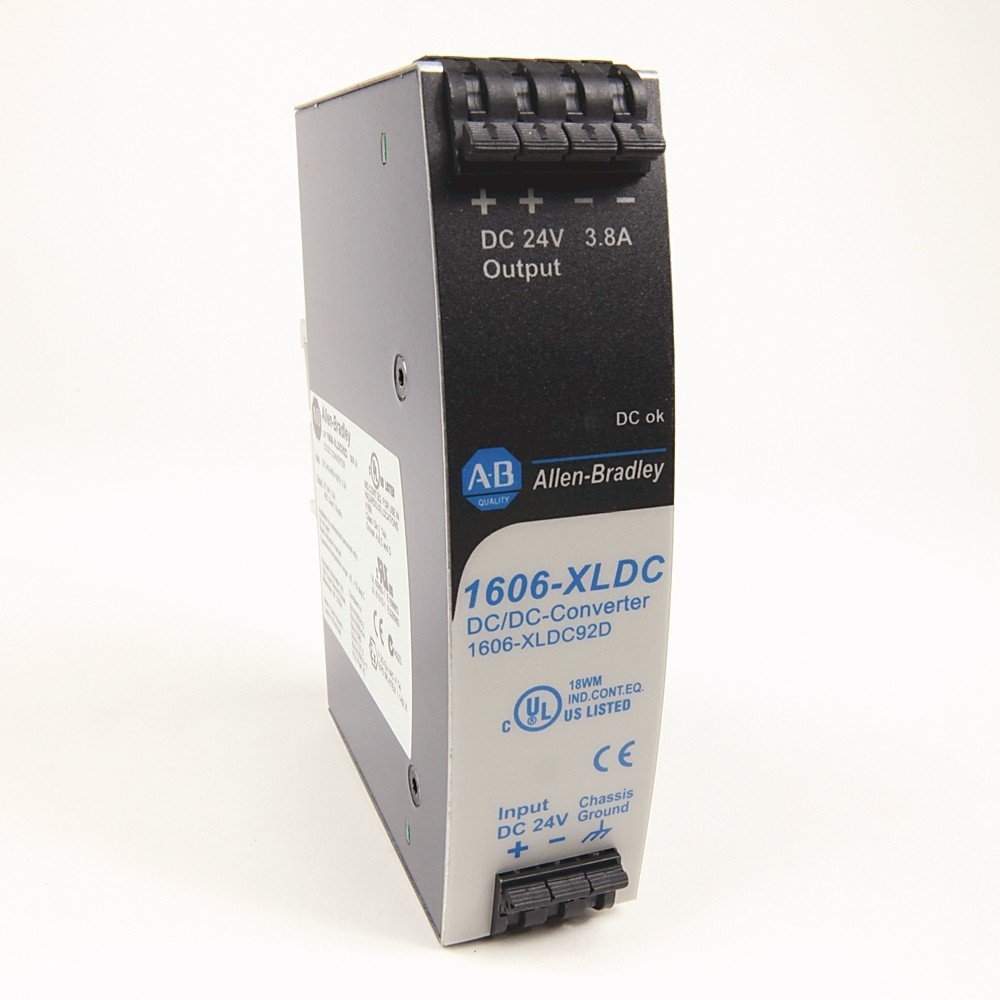

The Allen-Bradley 1606-XLDC92D DC/DC converter efficiently converts 24V DC input to a stable 24V DC output. Its compact design makes it perfect for mounting on DIN rails, even in tight spaces. Ideal for industrial applications, this unit provides a reliable power boost and ensures excellent efficiency, especially over long cable runs.
Key Features
- Output Power: Delivers 92W with a 24V DC output.
- Efficiency: Achieves 90.5% efficiency, minimizing energy loss.
- Power Boost: Provides a 20% power boost continuously at up to +45°C.
- Temperature Range: Reliable operation in -25°C to +60°C environments.
- Compact Design: At only 32mm wide, this converter fits into space-constrained installations.
- Protection: Features reverse polarity protection, ensuring safe operation.
- Soft-Start: The built-in soft-start reduces inrush current and prevents surges.
- NEC Class 2: Compliant with NEC Class 2 standards for safe and reliable power delivery.
Technical Specifications
| Specification | Details |
|---|---|
| Product ID | 1606-XLDC92D |
| Output Voltage | 24V DC (non-adjustable) |
| Output Current | 3.8A (NEC Class 2) |
| Output Power | 92W |
| Input Voltage | 24V DC |
| Input Voltage Range | 14.4V to 32.4V DC |
| Efficiency | 90.5% at 24V DC input |
| Dimensions (WxHxD) | 32mm x 124mm x 102mm |
| Operating Temperature | -25°C to +60°C |
| Input Current | 4.25A typical at 24V DC |
| Hold-Up Time | 7ms at 24V DC input |
| Certifications | UL 508, UL 60950-1, IECEx ATEX, CE, C-Tick, Marine, NEC Class 2 |
Applications
The 1606-XLDC92D is ideal for industrial automation and control systems where stable 24V DC power is essential. It works particularly well for applications requiring efficient power conversion over long distances or in systems powered by batteries.
FAQ
Q: What is the efficiency of the 1606-XLDC92D?
A: This converter offers an impressive 90.5% efficiency, ensuring minimal energy loss.
Q: Can it operate in extreme temperatures?
A: Yes, the 1606-XLDC92D works effectively in temperatures from -25°C to +60°C.
Q: What safety features are built into this unit?
A: It includes reverse polarity protection and a soft-start function that limits inrush current.
Q: What is the output power of the converter?
A: The 1606-XLDC92D provides a steady 92W of 24V DC power.
Q: How long does it take to ship?
A: We typically ship the 1606-XLDC92D within 3 days to 2 weeks, depending on order size. We use carriers like DHL for reliable delivery.
Details
| Weight | 1.2 kg |
|---|---|
| Dimensions | 813 × 3150 × 2591 mm |
