High-Performance Motor Control for Industrial Applications

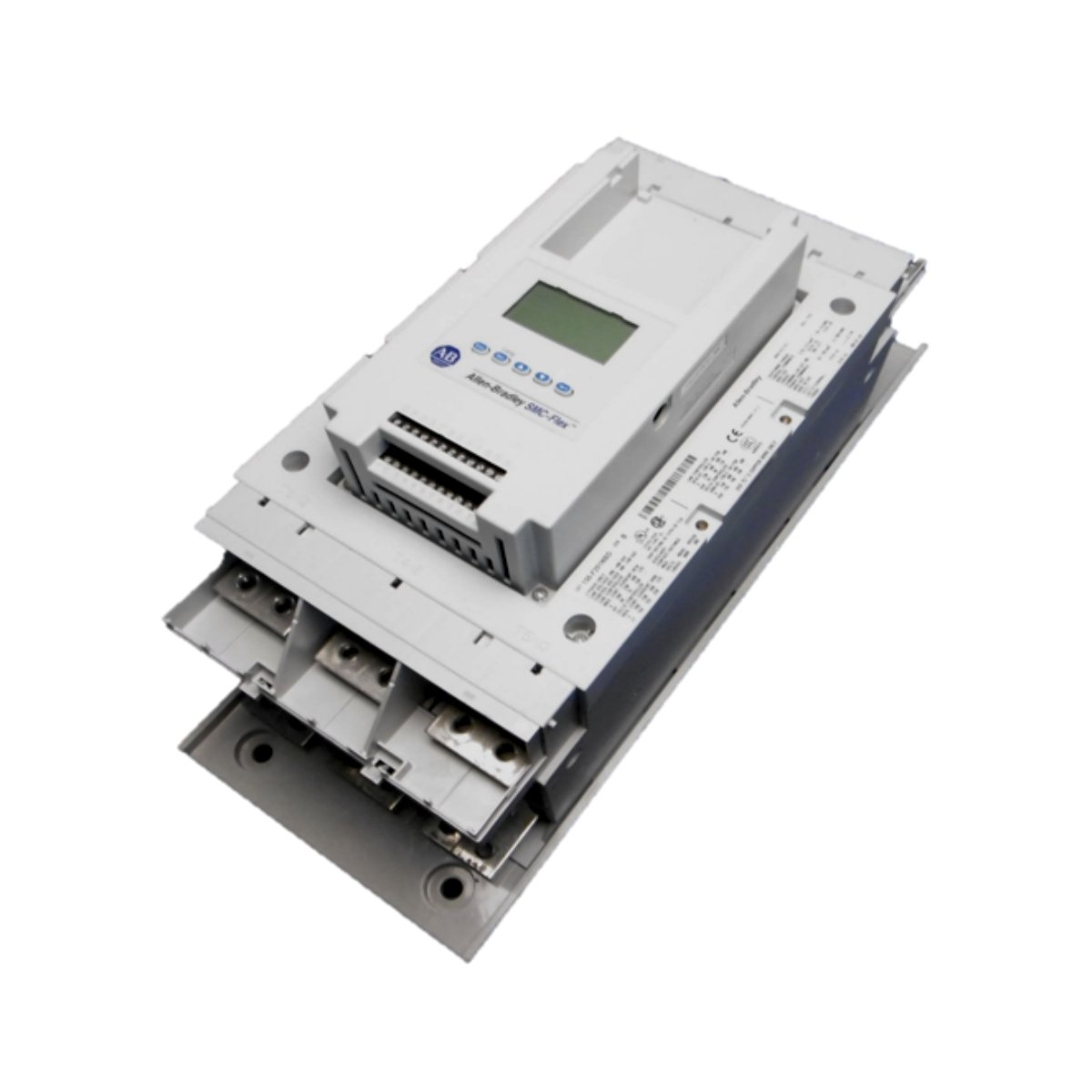

The Allen-Bradley 150-F361NBDD delivers precise motor acceleration and deceleration. Moreover, it reduces inrush current and mechanical stress, extending motor lifespan. Therefore, it lowers maintenance costs and enhances system reliability in industrial operations.
Key Technical Specifications
- Brand & Model: Allen-Bradley 150-F361NBDD
- Product Family: SMC Flex Smart Motor Controller
- Input Line Voltage: 200–460V AC, 3-Phase, 50/60 Hz
- Control Voltage: 100–240V AC
- Rated Output Current: 361 Amperes
- Output Power: 300 HP (Line) / 500 HP (Delta) @ 460V AC
- Enclosure Type: Open (requires panel mounting)
- Motor Connection: Line & Delta Connected
- Protection Features: Electronic Overload, Stall, Jam, Phase Imbalance, Over Temperature
- Operating Temperature: -5°C to +50°C
- Weight: 105.06 lbs (47.66 kg)
Installation and Wiring Recommendations
Mount 150-F361NBDD inside a protective enclosure. Maintain at least 6 inches (150 mm) clearance above and below. Use lug kit 199-LG1 for power wiring. Conductor size: 25–240 sq.mm (#6–250 MCM), torque: 42 Nm. Control wiring requires 0.75–2.5 mm² (18–14 AWG) wire, torque: 0.6 Nm. Always follow manufacturer instructions and local codes.
Compatibility and Ideal Applications
Supports standard three-phase squirrel cage induction motors. Compatible with Line and Delta configurations. Ideal for heavy-duty industrial equipment, including large pumps, fans, compressors, conveyors, and crushers up to 500 HP. Automated control ensures efficient operation and reduces energy waste.
Origin, Dimensions, and Weight
- Country of Origin: USA
- Dimensions: 12.5 × 7.8 × 15.2 inches (318 × 198 × 386 mm)
- Weight: 105.06 lbs (47.66 kg)
Details
| Weight | 47.66 kg |
|---|---|
| Dimensions | 318 × 198 × 386 mm |
