Product Overview

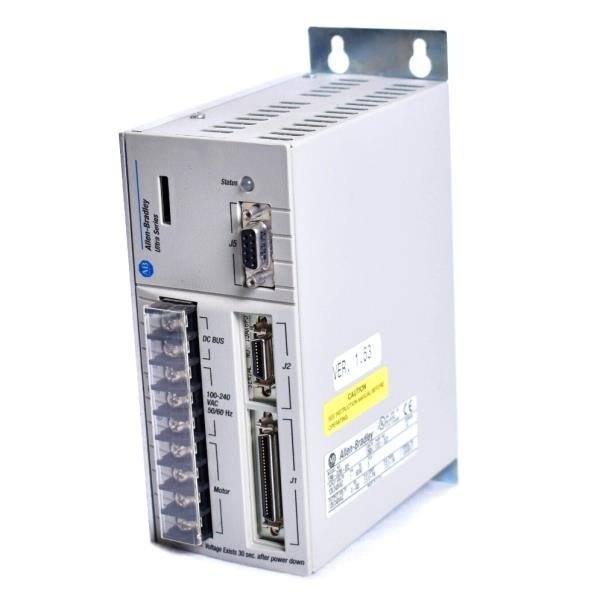

The Allen-Bradley 1398-DDM-005 is a 500 Watt Universal Drive from the ULTRA 100 Series manufactured by Rockwell Automation. This compact drive delivers efficient performance across diverse automation systems, offering reliable power handling, precise motor control, and durable construction. Its lightweight 1.7 kg design allows easy installation and integration within industrial environments.
General Information
| Attribute | Details |
|---|---|
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number / Catalog No. | 1398-DDM-005 |
| Product Line | ULTRA 100 Series |
| Power Output | 500 Watts |
| Weight | 1.7 kg (3.7 lbs) |
| Dimensions | 200 x 75 x 150 mm |
Electrical Specifications
| Attribute | Details |
|---|---|
| Input Voltage / Frequency | 100–240 VAC, 47–63 Hz, Single Phase |
| Input Current | 5 Arms |
| Bus Voltage | 141–339 VDC |
| Output Peak Current | 7.5 Amps |
| Continuous Output Current | 2.5 Amps |
| Continuous Power Output | 0.3 kW (120 VAC), 0.6 kW (240 VAC) |
| Peak Power Output | 0.9 kW (120 VAC), 1.8 kW (240 VAC) |
| Bus Capacitance Energy | 38 Joules |
Environmental Specifications
| Attribute | Details |
|---|---|
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 5% to 95% non-condensing |
| Altitude | Up to 1500 meters (5000 feet) |
| Vibration Resistance | 10–2000 Hz at 2g |
| Shock Resistance | 15g, 11 ms half sine |
Motor Control and Interface
| Attribute | Details |
|---|---|
| Motor Encoder Interface | A/B Differential, 1 MHz (4 MHz Quadrature) |
| Hall Inputs | Single-ended, 5 Volt Logic |
| Digital Inputs | 12–24 Volt, Optically Isolated, 4.5 mA |
| Digital Outputs | Short Circuit Protected, 50 mA max |
| Analog Inputs | ±10 Volt, Differential, 13 kΩ impedance |
| Analog Outputs | 0–10 Volt, 8-bit, 2 mA max |
| Serial Port | RS-232 or RS-485 |
Details
| Weight | 1.7 kg |
|---|---|
| Dimensions | 198 × 142 × 54 mm |
