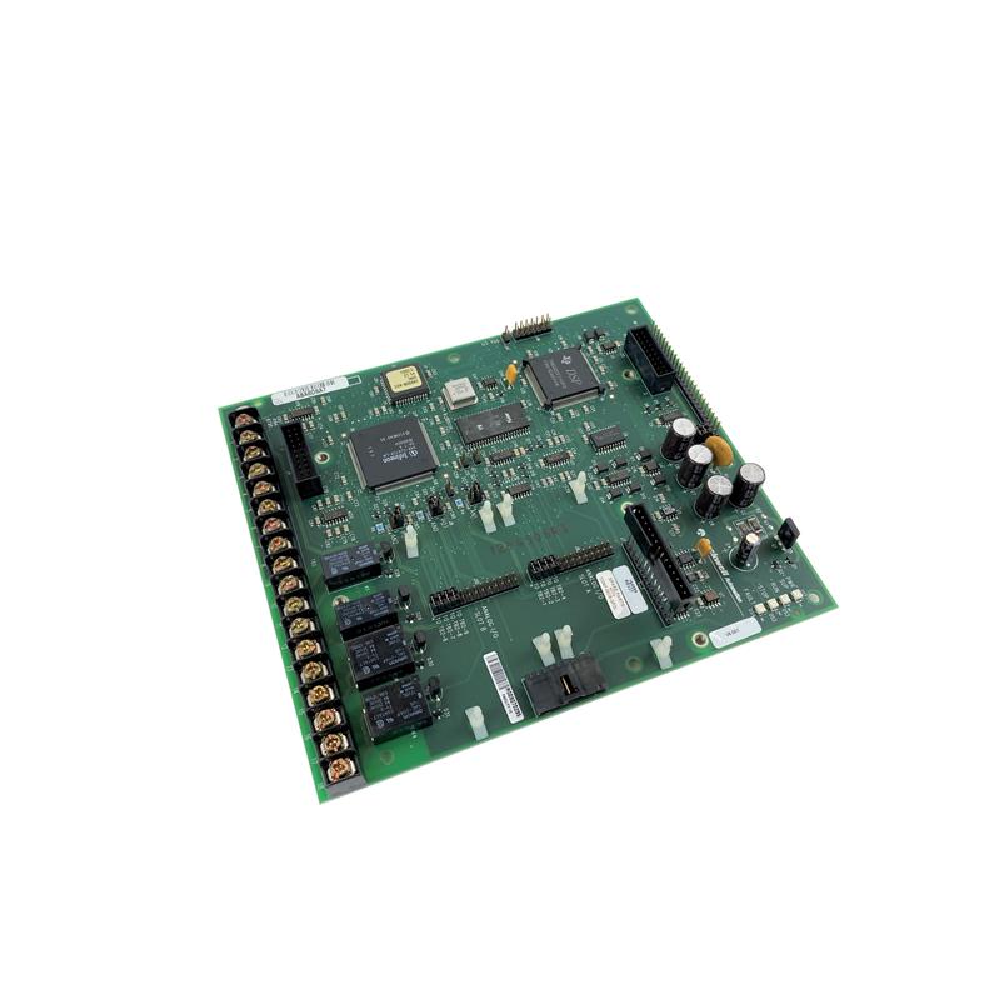

The Allen-Bradley 1336F-MCB-SP2L serves as a Main Control Board (MCB) for the 1336 PLUS II, FORCE, IMPACT, and REGEN drive series. It supports power ratings from 0.5 HP to 800 HP and operates across 200–240V, 380–480V, and 500–600V ranges. This board manages critical drive control functions and ensures precise motor performance under varying load conditions.

Technical Specifications

General Information

Key Features

1. Reliable Drive Control
   • Manages all essential control functions for industrial AC drives.
   • Supports precise speed and torque regulation across multiple motor sizes.
2. Wide Power and Voltage Support
   • Operates from 0.5 HP to 800 HP with 200–600V input ranges.
   • Compatible with 1336 PLUS II, FORCE, IMPACT, and REGEN drives.
3. Firmware Upgrade Capability
   • Latest FRN ensures up-to-date control algorithms and optimized drive performance.
   • Replacing older MCBs improves overall system efficiency.
4. Easy Maintenance and Replacement
   • Designed for industrial-grade drives requiring robust operation.
   • Suitable for large drive repair, replacement, and preventive maintenance.
5. Safety and Compliance
   • Hazardous voltages present; follow all safety procedures when handling the board.
   • Only authorized Allen-Bradley distributors should perform replacement or technical support.

Applications

• Replacement or upgrade for 1336 PLUS II, FORCE, IMPACT, and REGEN drives.
• Industrial AC drive repair, maintenance, or performance enhancement.
• Systems requiring precise motor control up to 800 HP (597 kW).
• High-power applications needing robust control and reliability.
