Product Overview
The Allen-Bradley 1336-BDB-SP5D 74103-244-55 belongs to the PCB Gate Drive Board Series manufactured by Rockwell Automation. This board functions as a replacement module for several drive families, including 1336 PLUS, REGEN, FORCE, PLUS II, and IMPACT. It ensures reliable gate control for high-performance AC frequency drives.
Design and Construction

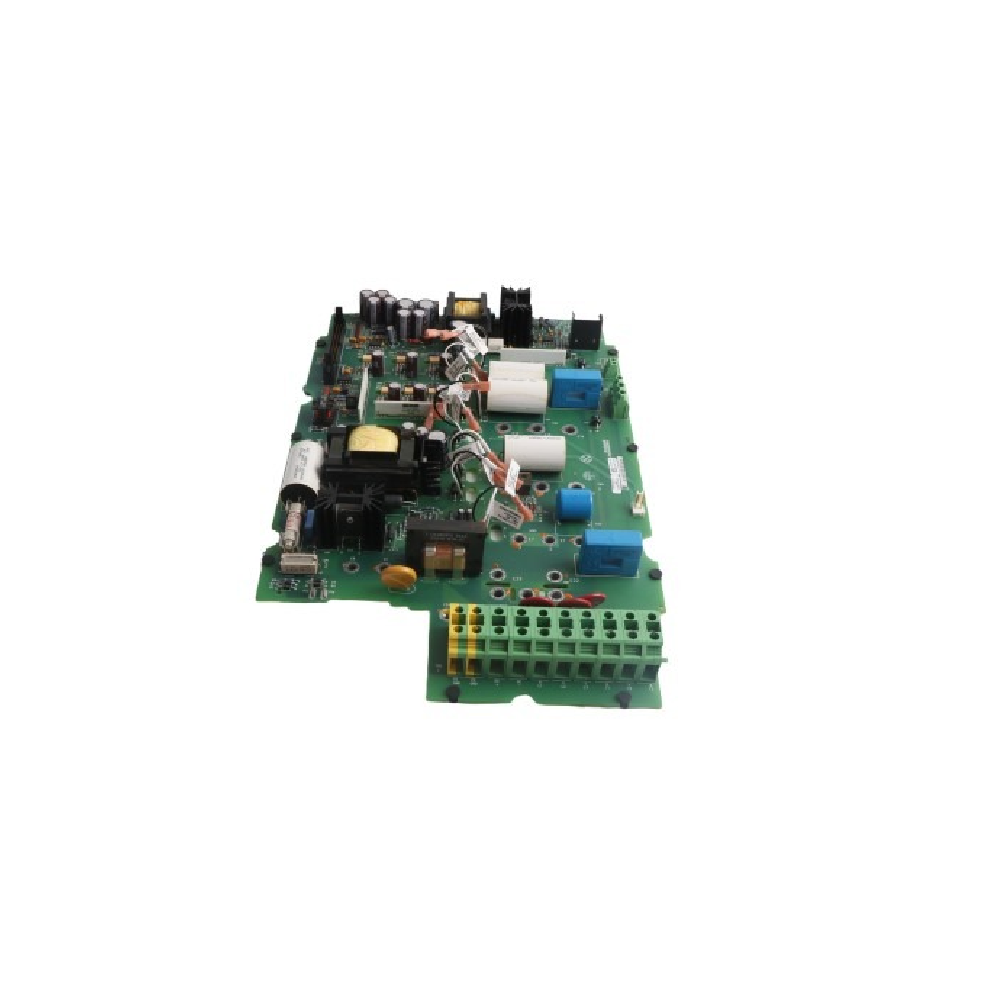

The 1336-BDB-SP5D features a compact rectangular green PCB with ports and connectors arranged on one side for easier wiring. Its central frame space remains clear, which simplifies installation and allows quick access during servicing. The lightweight construction, under 2 kilograms, makes handling convenient while maintaining durability for industrial environments.
Electrical and Performance Specifications
Operating at 460 Volts AC, the 1336-BDB-SP5D supports applications up to 25 HP. It does not include a dedicated power source but instead draws operating power directly from the connected drive. The board incorporates protective elements to reduce electrical hazards during installation and use.
Technical Specifications
| Attribute | Details |
|---|---|
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number | 1336-BDB-SP5D |
| Alternate Part Number | 74103-244-55 |
| Series Compatibility | 1336 PLUS, REGEN, FORCE, PLUS II, IMPACT |
| Voltage Rating | 460 Volts AC |
| Horsepower Rating | 25 HP |
| Frame Model Sizes | A, B, C, D, E |
| Shipping Weight | < 2 kg |
| Board Dimensions | Approx. 260 mm x 180 mm x 30 mm |
| Interface Ports | Multiple connectors arranged on one edge |
| Independent Power | Not included, powered via host drive |
| Safety Features | Built-in electrical protection |
| Lifecycle Status | Discontinued / Obsolete |
Applications
The 1336-BDB-SP5D drive board supports demanding motor control in heavy-duty industrial systems. It plays a critical role in drive series such as 1336 PLUS and 1336 FORCE, where stable voltage regulation and torque performance are essential. Its compatibility with multiple frame sizes (A–E) ensures flexibility across diverse installations.
Availability
Although the 1336-BDB-SP5D 74103-244-55 is discontinued, replacement units and spare parts remain available. Global availability ensures that industries relying on the Allen-Bradley 1336 PLUS series can maintain operational reliability without extended downtime.
Details
| Dimensions | 260 × 180 × 30 mm |
|---|
