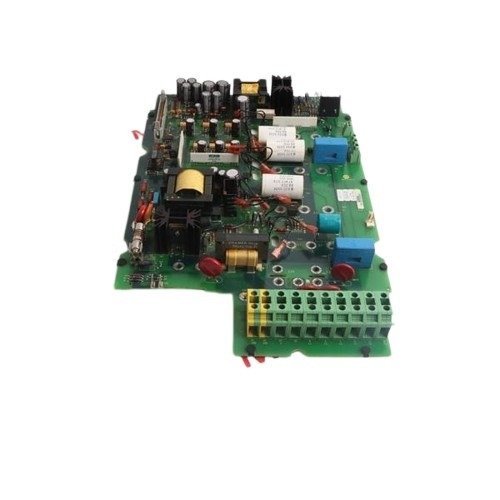

The Allen-Bradley 1336-BDB-SP5C is a Gate Drive Base Driver Board designed for 1336STG drives. It supports industrial systems operating at 460 Volts AC and handles motor loads up to 25 HP. This board ensures reliable gate drive performance and compatibility with legacy Allen-Bradley 1336STG drive units, facilitating maintenance and replacement of key drive components.
Technical Specifications
General Information
| Attribute | Details |
|---|---|
| Brand | Allen-Bradley / Rockwell Automation |
| Series | 1336 PCB Boards |
| Part Number | 1336-BDB-SP5C |
| Description | Gate Drive PCB |
| Standard Compliance | CE, CSA, UL |
| Voltage Rating | 460 Volts AC |
| Temperature Range | 0–50°C |
| Horsepower Capacity | 25 HP |
| Product Status | Discontinued / Obsolete |
Key Features
- Reliable Gate Drive Operation
- Provides precise gate control for 1336STG drives.
- Optimized for industrial VFDs and motor control applications.
- High Voltage Support
- Rated for 460 Volts AC to meet demanding operational requirements.
- Supports motors up to 25 HP, ensuring consistent drive performance.
- Compatibility and Replacement
- Designed for legacy 1336STG drive units, simplifying maintenance.
- Ensures smooth integration with existing Allen-Bradley systems.
- Durable Design
- Operates reliably in ambient temperatures from 0–50°C.
- Compliant with CE, CSA, and UL standards for industrial safety.
Applications
- Variable Frequency Drives (VFDs) for industrial automation.
- Motor control systems requiring precise speed and torque regulation.
- Legacy Allen-Bradley 1336STG drive units requiring spare or replacement parts.
Details
| Weight | 1.54 kg |
|---|---|
| Dimensions | 407 × 257 × 50 mm |
