Product Overview

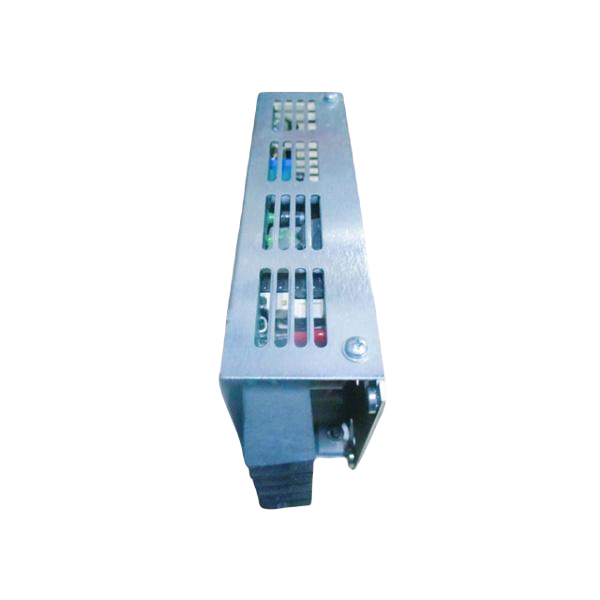

The Absopulse MIM105-Q6949 (80026-096-01) is a high-performance switch power supply. It delivers stable 24VDC output at 2A while accepting 48VDC input up to 1.5A. This module ensures efficient voltage conversion for industrial and automation applications. Its compact design allows flexible installation in limited spaces.
Key Features
- High-efficiency DC-DC voltage conversion
- Compact dimensions support flexible integration
- Reliable and consistent output under varying loads
- Lightweight design for easy handling and installation
- Manufactured by Absopulse in the USA
Technical Specifications
| Specification | Details |
|---|---|
| Brand/Manufacturer | Absopulse |
| Model Number | MIM105-Q6949 |
| Part Number | 80026-096-01 |
| Input Voltage | 48VDC, 1.5A max |
| Output Voltage | 24VDC |
| Output Current | 2A |
| Dimensions (L×W×H) | 12.7 cm × 5.1 cm × 12.7 cm |
| Weight | 0.1 kg |
| Country of Origin | USA |
| Type | Switch Power Supply |
Applications
The MIM105-Q6949 powers industrial sensors, automation controllers, and small machinery. Its reliable output ensures continuous operation, preventing downtime. Integrators can deploy this module in control panels or compact enclosures without worrying about overheating or voltage drops.
Installation Notes
Mount the Absopulse MIM105-Q6949 on a stable surface with adequate ventilation. Connect the 48VDC input carefully, ensuring polarity is correct. Use standard cabling for the 24VDC output to maintain voltage integrity across the connected devices.
Details
| Weight | 0.1 kg |
|---|
