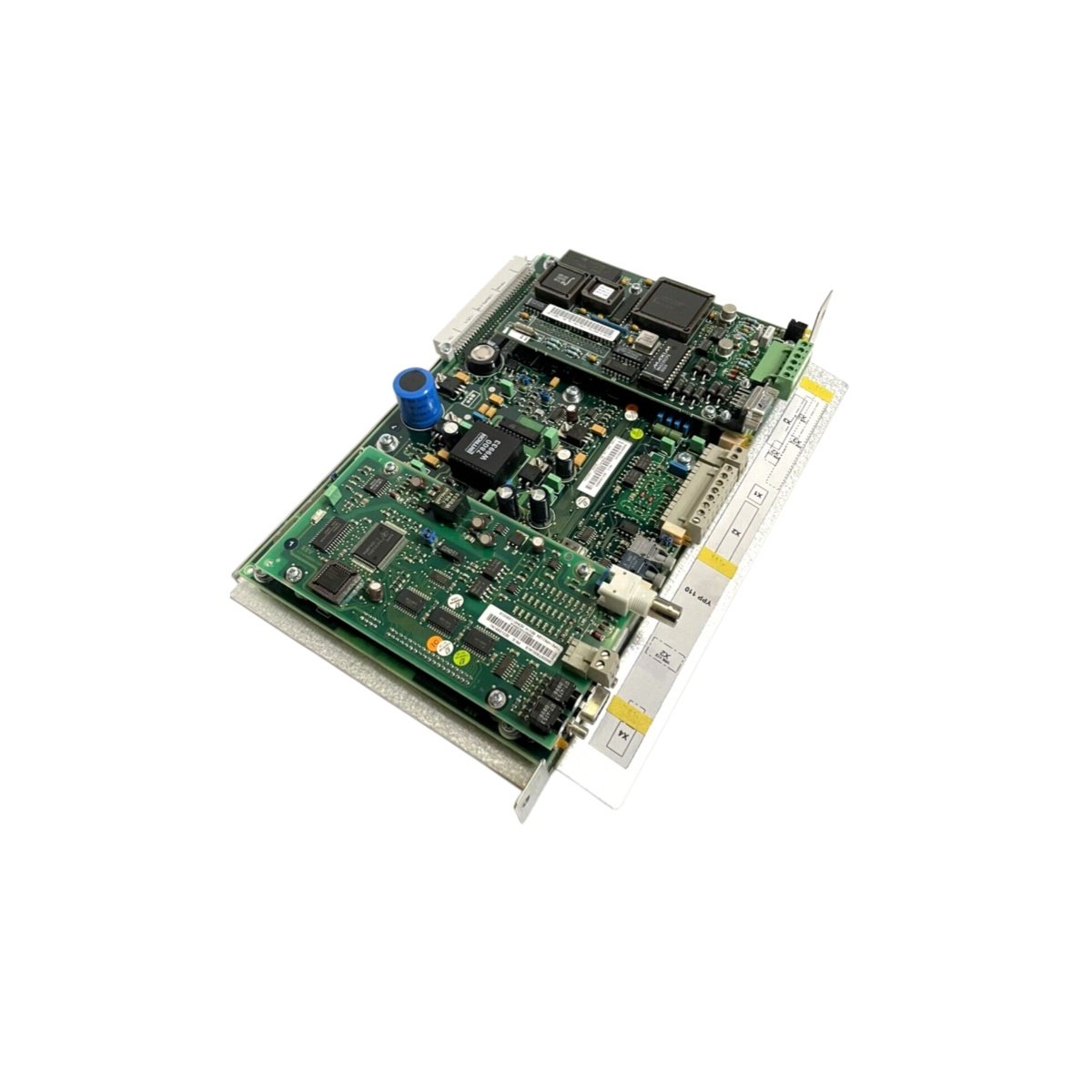

The ABB YPK113A board manages data communication between industrial drive components and higher-level control networks. As a specialized interface unit, this device handles protocol conversion and signal transmission with high reliability. Engineers replace this board when drives require network connectivity or fault recovery.
Key Technical Specifications
The YPK113A employs a compact plug-in design, which simplifies installation inside crowded drive cabinets. Each board weighs approximately 0.5 kg and measures 140 mm by 90 mm by 30 mm. This unit operates from a 24 VDC supply and dissipates roughly 7 watts during normal operation.
| Parameter | Specification |
|---|---|
| Module Type | Communication Board |
| Dimensions | 140 × 90 × 30 mm |
| Weight | ~0.5 kg |
| Input Voltage | 24 VDC nominal |
| Power Consumption | ~7 W |
| Function | Protocol conversion and data transfer |
| Interface | Backplane and Fieldbus Connectors |
| Mounting | Rack or Chassis Mount |
| Operating Temperature | 0°C to 60°C |
Interface and Communication
The YPK113A connects directly to the drive backplane, enabling seamless data exchange with control and I/O boards. Consequently, each communication channel operates independently while the board transfers data in real time. The board supports quick replacement, which minimizes downtime during maintenance activities. Furthermore, clear connector labelling simplifies troubleshooting between the board and connected networks.
Component Count and Energy Storage
Each YPK113A board contains multiple communication circuits on a single compact assembly. Additionally, onboard capacitors support brief ride-through during power interruptions. The design integrates diagnostic LEDs for continuous self-monitoring. Therefore, operators gain confidence in data integrity across demanding industrial environments.
Applications and Reliability
Steel mills, paper plants, and power generation stations deploy the YPK113A for critical communication functions. The design meets rigorous international industrial standards for reliability and safety. Meanwhile, comprehensive diagnostics alert maintenance teams before failures escalate. As a result, plant operators reduce unplanned shutdowns and protect expensive assets.
