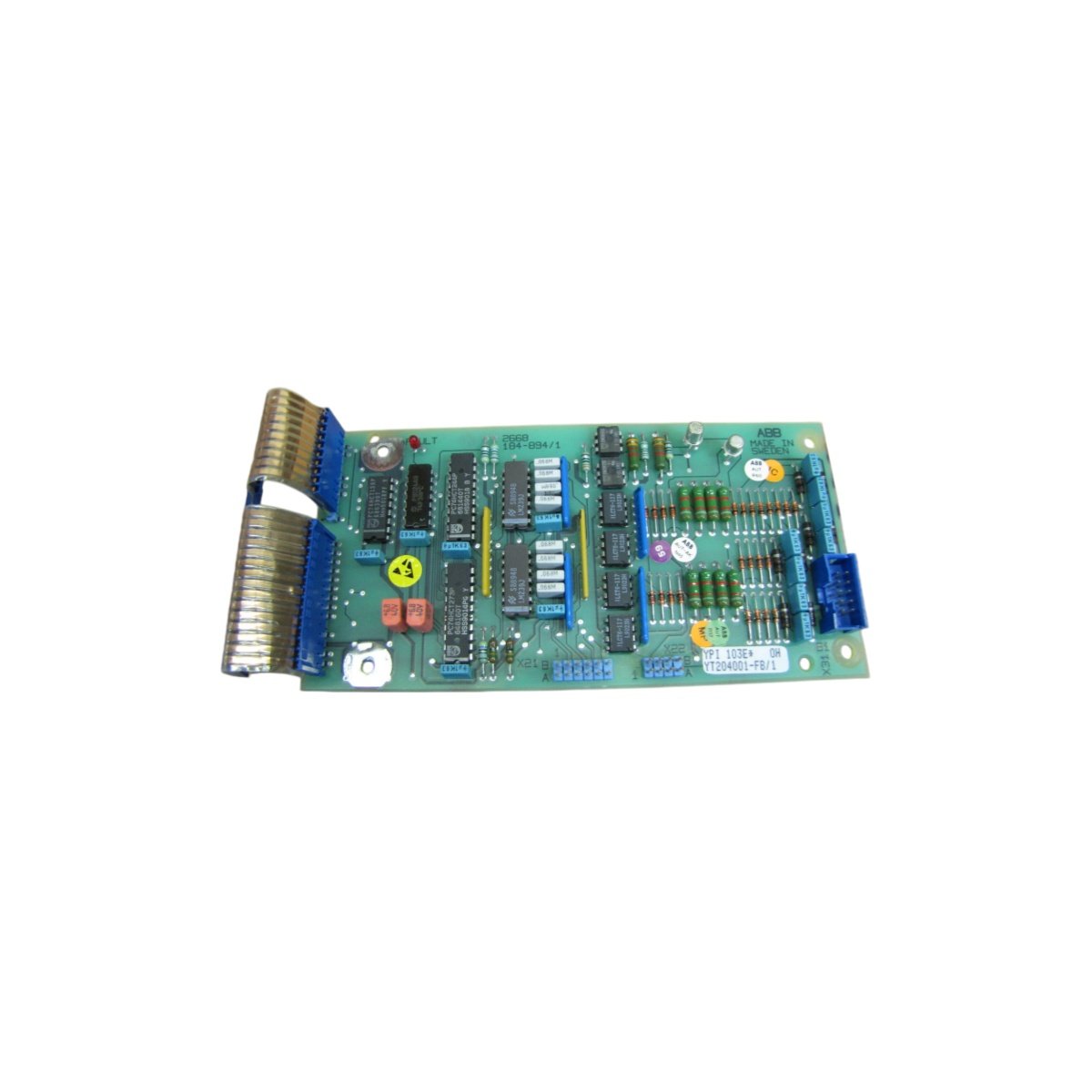

The ABB YPI103E YT204001-FB circuit board captures digital field signals for industrial drive and control systems. As a specialized input unit, this board converts discrete sensor states into reliable data for the main controller. Engineers replace this board when drives require fast repair or preventive maintenance.
Key Technical Specifications
The YPI103E YT204001-FB employs a compact plug-in design, which simplifies installation inside crowded drive cabinets. Each board weighs approximately 0.5 kg and measures 140 mm by 90 mm by 30 mm. This unit operates from a 24 VDC supply and dissipates roughly 6 watts during normal operation.
| Parameter | Specification |
|---|---|
| Module Type | Digital Input Circuit Board |
| Part Number | YT204001-FB |
| Dimensions | 140 × 90 × 30 mm |
| Weight | ~0.5 kg |
| Input Voltage | 24 VDC nominal |
| Power Consumption | ~6 W |
| Input Channels | Multi-channel digital inputs |
| Interface | Backplane and Ribbon Connectors |
| Mounting | Rack or Chassis Mount |
| Operating Temperature | 0°C to 60°C |
Interface and Communication
The YPI103E YT204001-FB connects directly to the drive backplane, enabling seamless data exchange with the main control board. Consequently, each input channel operates independently while the board reports signal states in real time. The board supports quick replacement, which minimizes downtime during maintenance activities. Furthermore, clear connector labelling simplifies troubleshooting between the board and connected sensors.
Component Count and Energy Storage
Each YPI103E YT204001-FB board contains multiple input circuits on a single compact assembly. Additionally, onboard capacitors support brief ride-through during power interruptions. The design integrates diagnostic LEDs for continuous self-monitoring. Therefore, operators gain confidence in signal integrity across demanding industrial environments.
Applications and Reliability
Steel mills, paper plants, and power generation stations deploy the YPI103E YT204001-FB for critical input functions. The design meets rigorous international industrial standards for reliability and safety. Meanwhile, comprehensive diagnostics alert maintenance teams before failures escalate. As a result, plant operators reduce unplanned shutdowns and protect expensive assets.
Details
| Weight | 0.35 kg |
|---|---|
| Dimensions | 90 × 45 × 100 mm |
