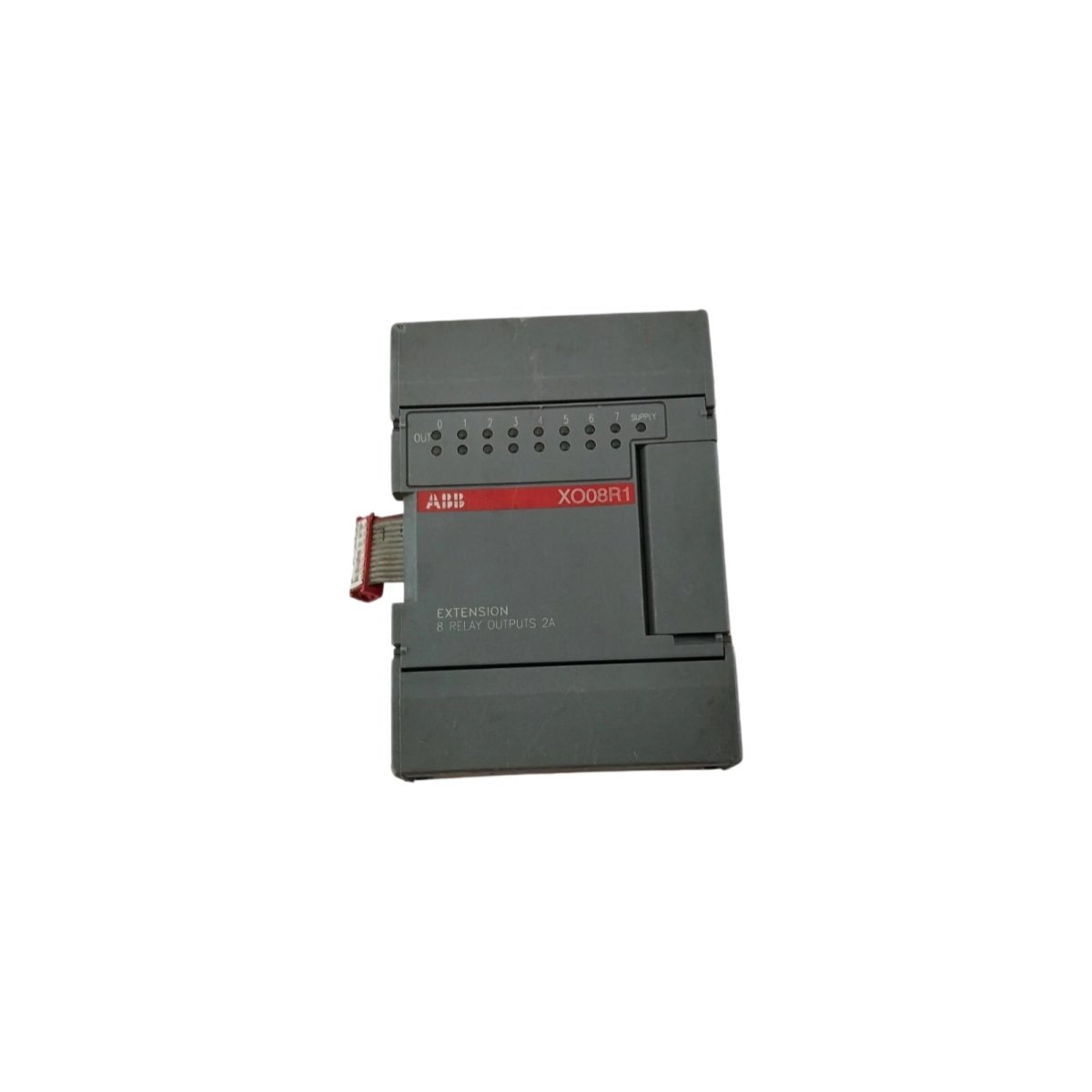

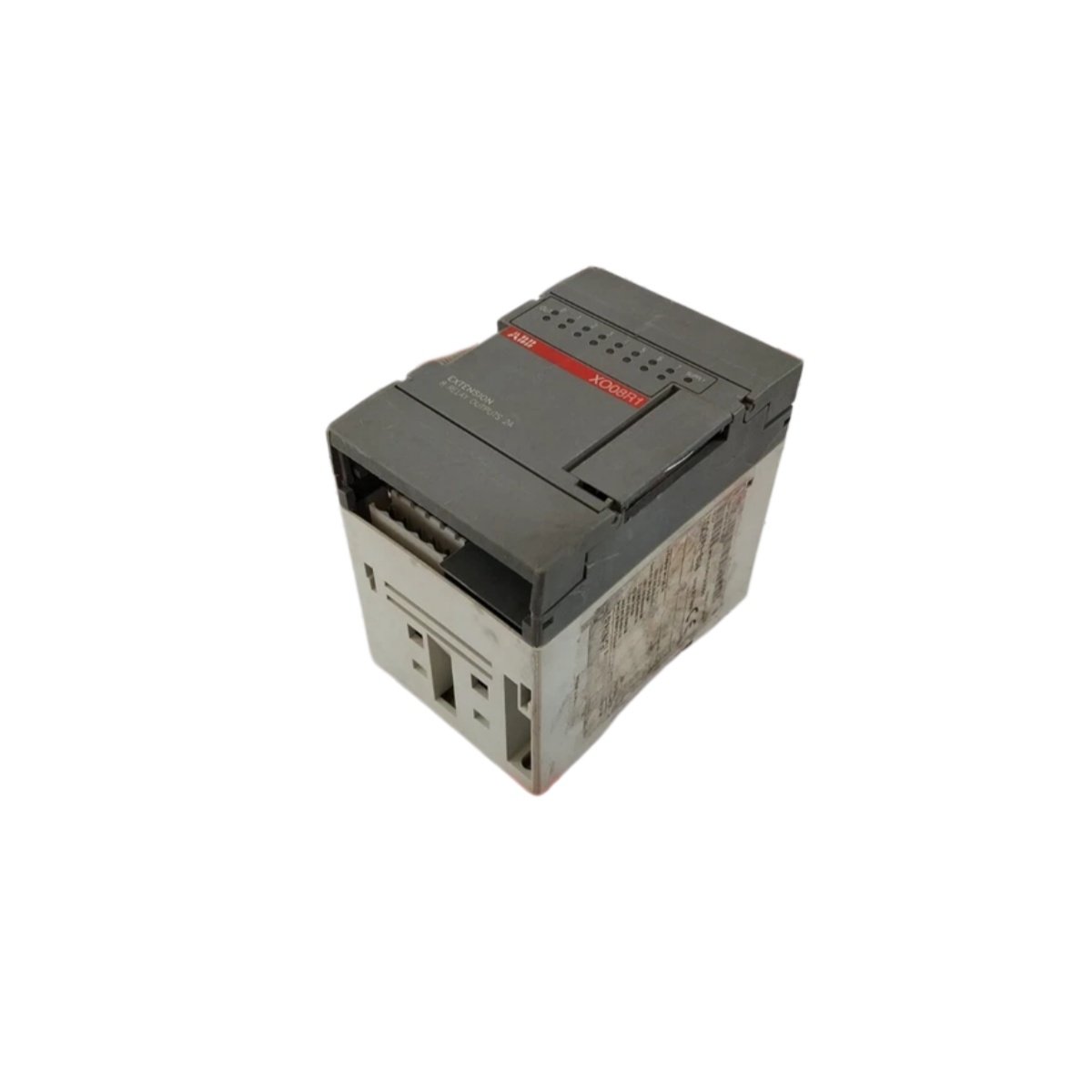

The ABB XO08R1 XOO8R1-B04 1SBP260101R1001 module expands digital I/O capacity for industrial automation controllers. As a flexible extension unit, this device adds eight relay outputs to compatible ABB PLC platforms. Engineers deploy this module when machine builders need extra outputs without replacing the main controller.
Key Technical Specifications

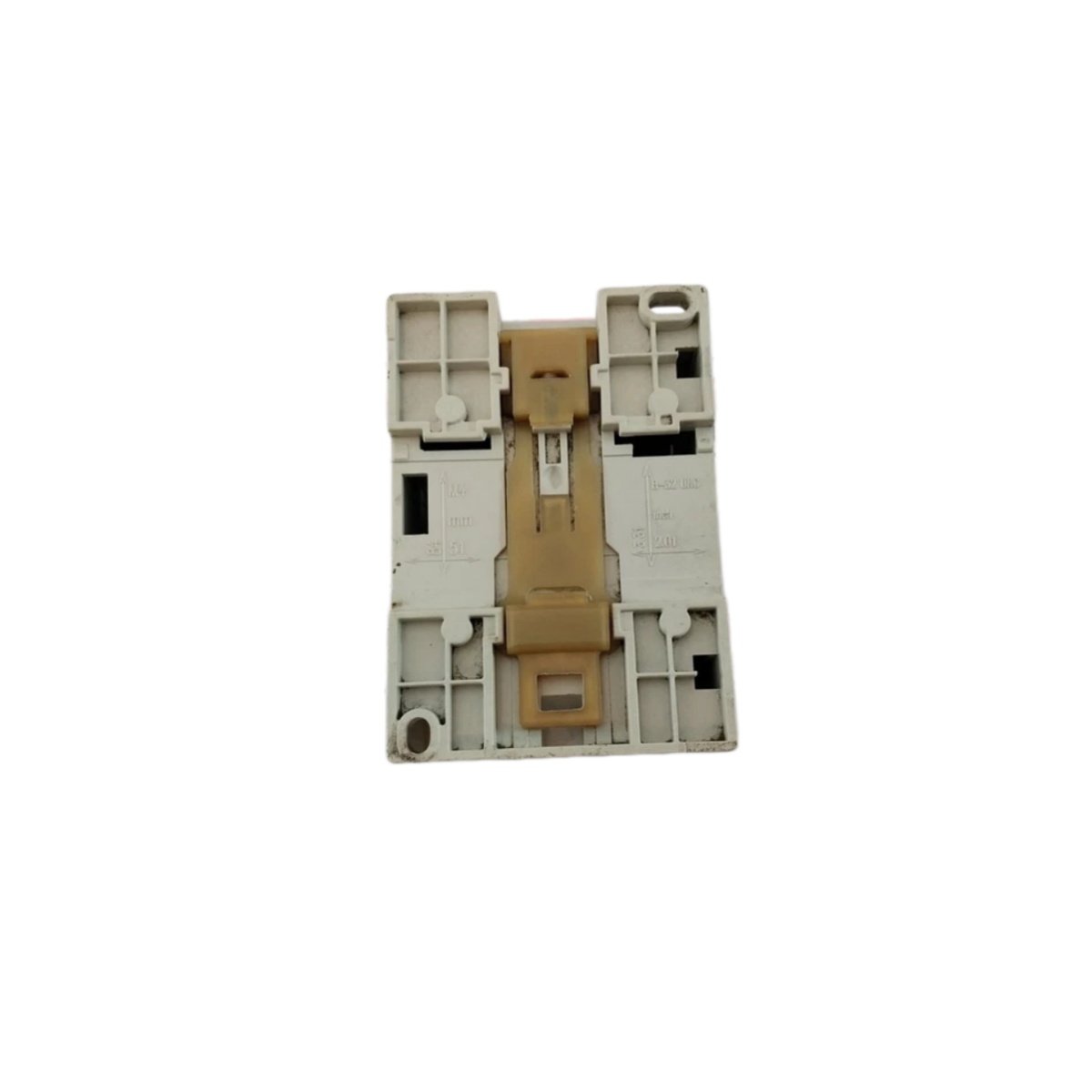

The XO08R1 XOO8R1-B04 1SBP260101R1001 employs a compact DIN-rail design, which simplifies installation inside crowded control cabinets. Each module weighs approximately 0.3 kg and measures 90 mm by 70 mm by 60 mm. This unit operates from a 24 VDC supply and dissipates roughly 5 watts during normal operation.
| Parameter | Specification |
|---|---|
| Module Type | Digital Extension Module |
| Part Number | 1SBP260101R1001 |
| Dimensions | 90 × 70 × 60 mm |
| Weight | ~0.3 kg |
| Input Voltage | 24 VDC nominal |
| Power Consumption | ~5 W |
| Output Channels | 8 relay outputs |
| Interface | PLC Expansion Bus |
| Mounting | DIN Rail |
| Operating Temperature | 0°C to 60°C |
Interface and Communication
The XO08R1 XOO8R1-B04 1SBP260101R1001 connects directly to the controller expansion bus, enabling seamless data exchange with the CPU. Consequently, each relay channel operates independently while the controller manages output states in real time. The module supports front-facing terminals, which minimizes wiring time during commissioning activities. Furthermore, clear channel indicators simplify troubleshooting between the module and connected field devices.
Component Count and Energy Storage
Each module contains eight relay circuits on a single compact assembly. Additionally, onboard filtering stabilizes output signals without requiring any large energy storage. The design integrates status LEDs for continuous self-monitoring. Therefore, operators gain confidence in system integrity across demanding industrial environments.
Applications and Reliability
Packaging lines, material handling systems, and building automation panels deploy the XO08R1 XOO8R1-B04 1SBP260101R1001 for flexible output expansion. The design meets rigorous international industrial standards for reliability and safety. Meanwhile, comprehensive diagnostics alert maintenance teams before failures escalate. As a result, plant operators reduce unplanned shutdowns and protect expensive assets.
Details
| Weight | 0.35 kg |
|---|---|
| Dimensions | 90 × 45 × 100 mm |
