Overview

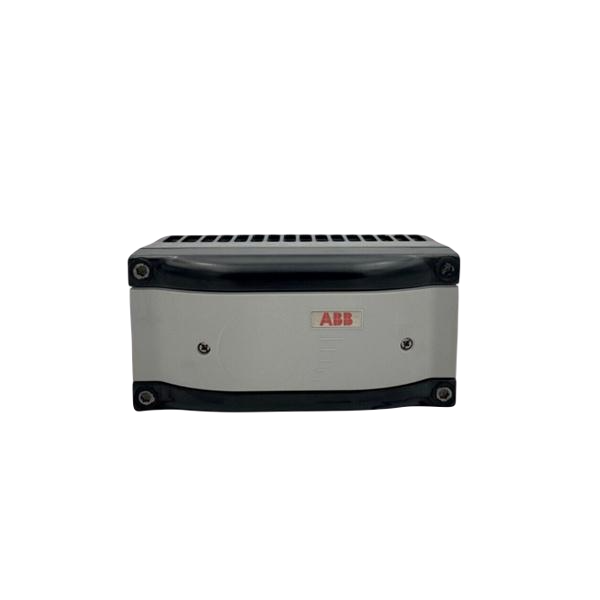

The ABB TZIDC-200 (V18348-10161310110) is a high-performance digital positioner designed for precise valve control in industrial automation systems. It combines compact dimensions with modular construction, ensuring maximum flexibility for both linear and rotary actuators. Featuring HART communication and automatic parameter tuning, this positioner offers efficient setup, reduced commissioning time, and enhanced process reliability in harsh environments.
Functional Highlights
- Smart Commissioning: Fully automatic stroke calibration simplifies setup, saving maintenance time and reducing configuration errors.
- Universal Compatibility: Supports both linear and rotary actuators with adjustable travel ranges up to 350°, depending on configuration.
- Robust Construction: Explosion-proof aluminum housing meets IECEx Ex d IIC T4/T5/T6 Gb standards for hazardous zones.
- Optimized Air Management: Operates with supply pressures from 1.4 to 6 bar (20–90 psi) and features low air consumption (<0.03 kg/h).
- Flexible Communication: Standard HART protocol enables remote diagnostics, calibration, and performance monitoring through plant control systems.
- Fail-Safe Operation: Ensures the actuator vents or locks in the event of power loss for enhanced process safety.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | V18348-10161310110 |
| Communication | HART Protocol |
| Actuator Type | Linear and Rotary |
| Rotation Range | 25°–350° (contactless sensor option) |
| Vibration Resistance | Up to 10 g |
| Supply Pressure | 1.4–6 bar (20–90 psi) |
| Air Consumption | <0.03 kg/h |
| Air Capacity | 2.3–6 scfm depending on pressure |
| Operating Temperature | –40°C to +85°C |
| Enclosure | Aluminum, varnished, explosion-proof |
| Electrical Connection | Thread ½-14 NPT or M20×1.5 |
| Air Connection | G¼ / ¼-18 NPT |
| Protection Class | IP66 / NEMA 4X |
Additional Features:
- Configurable dead band time up to 200 seconds
- Factory-calibrated for HART-compatible systems
- Optional analog feedback module (4–20 mA, two-wire)
- Supports NAMUR and VDI/VDE mounting standards
Typical Applications
The ABB TZIDC-200 digital positioner is widely used in industries where precision, reliability, and safety are critical.
Typical application areas include:
- Oil & Gas: Valve control in hazardous zones and offshore installations
- Chemical & Petrochemical Plants: Accurate process flow regulation under high vibration conditions
- Power Generation: Steam and cooling systems requiring reliable actuator control
- Marine Applications: Suitable for shipboard use, certified for marine operating pressures up to 5.5 bar
Moreover, the device’s compact and rugged design ensures consistent performance even under extreme conditions.
Details
| Weight | 0.32 kg |
|---|---|
| Dimensions | 46 × 500 × 663 mm |
