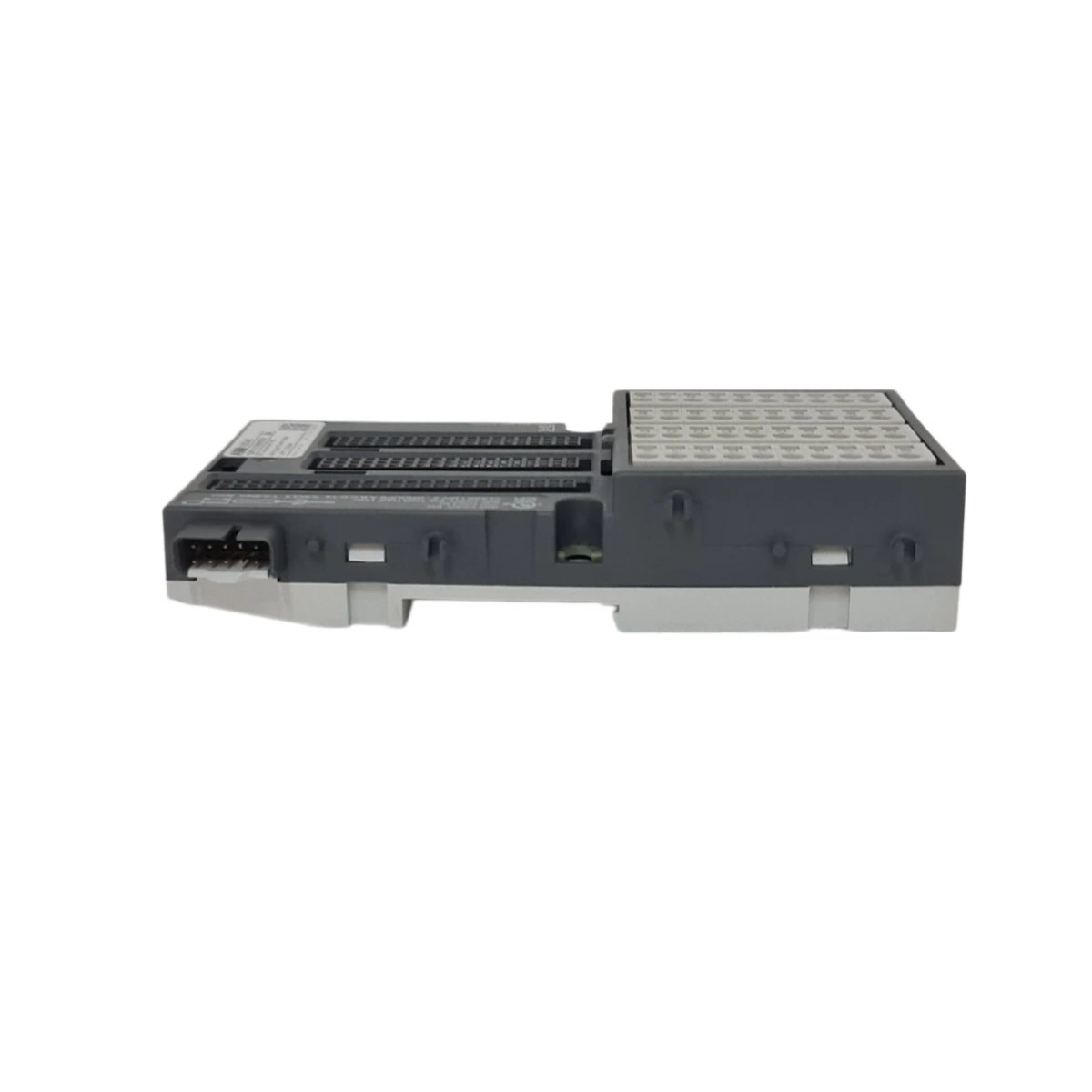

The TU532-XC 1SAP417000R0001 functions as a terminal unit within ABB’s AC500 automation platform. This unit measures roughly 5.9 inches long, 2.0 inches wide, and 4.3 inches high. Moreover, it weighs about 0.6 pounds, which suits compact DIN rail cabinets. Engineers select the TU532-XC 1SAP417000R0001 when they need secure field wiring and fast module replacement.
Technical Specifications and Interface Details
The terminal unit carries the electrical interface between I/O modules and field devices. Specifically, it provides screw terminals for two-wire and three-wire connections. Additionally, the unit supports hot-swap module exchange without disturbing adjacent wiring. A keyed slot guides each module into correct alignment every time.
| Parameter | Specification |
|---|---|
| Module Type | I/O Terminal Unit |
| Platform | ABB AC500 |
| Terminals | Screw-type field connections |
| Dimensions | 5.9 x 2.0 x 4.3 in |
| Weight | ~0.6 lbs |
| Mounting | DIN rail |
| Wiring Support | 2-wire and 3-wire |
| Compatibility | AC500 I/O modules |
Energy Storage and Signal Integrity
Internal filtering components on the TU532-XC 1SAP417000R0001 provide local energy storage for clean signal paths. Consequently, the unit suppresses noise that could disturb module readings. This buffering keeps field signals stable in electrically busy cabinets. The design therefore supports consistent measurement accuracy across long service intervals.
Installation and Compatibility Notes
Because the TU532-XC 1SAP417000R0001 clips onto standard DIN rail, technicians complete mounting quickly. They should verify terminal assignments before they connect field wiring. Furthermore, the unit accepts a wide range of AC500 I/O modules. Always store spare units in anti-static packaging to protect sensitive components.
Details
| Weight | 0.35 kg |
|---|---|
| Dimensions | 90 × 45 × 100 mm |
