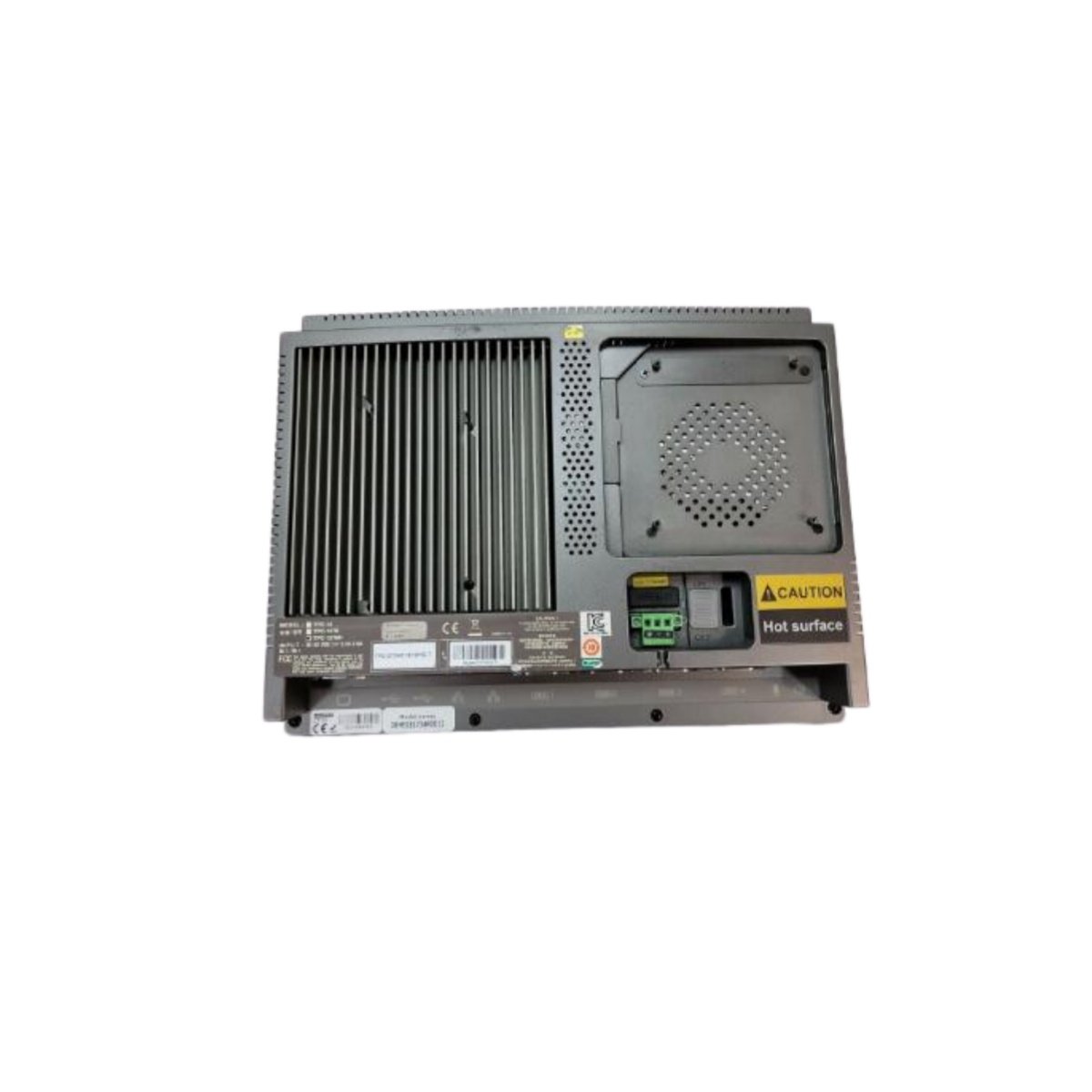

The TPC-1570H 3BHE031734R1011 delivers operator interface functions within ABB’s industrial control platforms. This touch panel measures roughly 15.4 inches wide, 12.2 inches tall, and 2.6 inches deep. Moreover, it weighs about 8.8 pounds, which suits panel-door mounting. Operators rely on the TPC-1570H 3BHE031734R1011 for clear process visualization and responsive touch input.
Technical Specifications and Interface Details

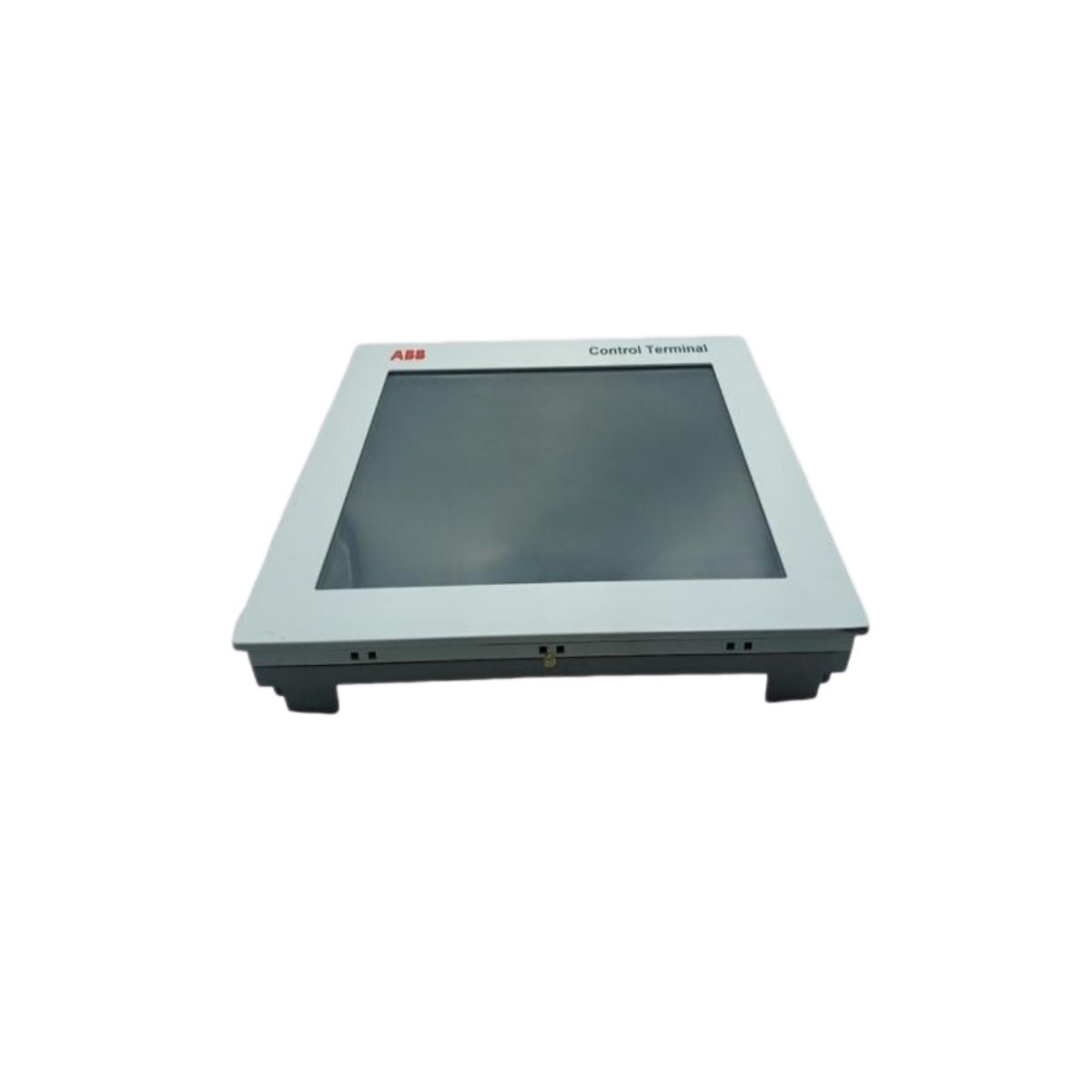

The unit combines a 15-inch color display with an analog resistive touchscreen overlay. Specifically, it offers 1024 x 768 pixel resolution for detailed graphics. Additionally, the front bezel meets IP65 protection for washdown environments. Rear connectors provide Ethernet, USB, and serial links to PLC hardware.
| Parameter | Specification |
|---|---|
| Module Type | Industrial Touch Panel |
| Display | 15 in color TFT |
| Resolution | 1024 x 768 pixels |
| Touchscreen | Analog resistive |
| Dimensions | 15.4 x 12.2 x 2.6 in |
| Weight | ~8.8 lbs |
| Protection | IP65 front panel |
| Interfaces | Ethernet, USB, serial |
| Power | 24 VDC nominal |
Energy Storage and Display Stability
Internal capacitors on the TPC-1570H 3BHE031734R1011 provide local energy storage for stable backlight drive. Consequently, the display resists flicker during supply fluctuations on the plant floor. This buffering also protects configuration memory during brief outages. The design therefore supports consistent screen performance across long shifts.
Installation and Compatibility Notes
Because the TPC-1570H 3BHE031734R1011 mounts through a standard panel cutout, technicians finish installation quickly. They should confirm gasket seating before they tighten the mounting clips. Furthermore, the panel communicates with many PLC families through configurable drivers. Always store spare units in anti-static packaging to protect sensitive electronics.
Details
| Weight | 0.35 kg |
|---|---|
| Dimensions | 90 × 45 × 100 mm |
