Product Overview

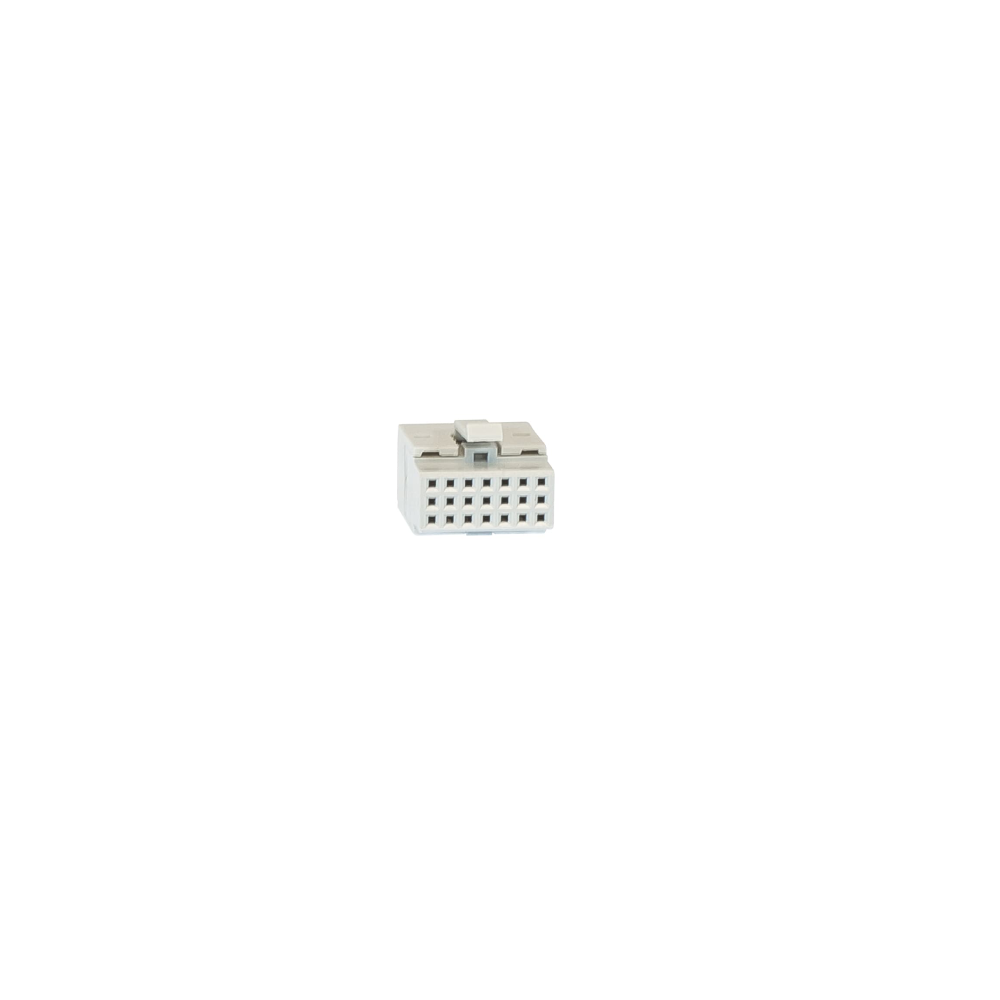

The ABB TB807 Modulebus Terminator ensures proper termination of Modulebus communication lines.
It maintains signal integrity and prevents data reflection, improving system stability and reliability.
Moreover, its compact dimensions allow installation in tight spaces within S800 I/O cabinets.
In addition, engineers benefit from simplified system expansion without requiring additional wiring modifications.

Key Benefits

The TB807 terminator provides essential functionality for industrial automation:

• Signal Integrity: Preserves accurate data transmission across Modulebus networks.
• Compact Design: Dimensions of 13 mm × 19 mm × 17 mm support tight installations.
• Lightweight: Net weight only 0.01 kg, facilitating easy handling and mounting.
• Compatibility: Works with various S800 I/O versions and prefabricated cables.

Therefore, this terminator reduces maintenance needs while ensuring reliable operation.

Technical Specifications

The terminator provides consistent electrical performance and supports long-term Modulebus reliability.

System Integration

The TB807 Modulebus Terminator fits into multiple industrial automation setups:

• S800 I/O Systems: Ensures stable communication on all prefabricated cable versions.
• 800xA and Advant OCS Controllers: Supports multiple system software versions, 4.1–5.1.
• Compact Product Suite: Facilitates quick and reliable installation in small cabinets.

In addition, it helps maintain consistent communication without compromising overall system performance.

Details
