Overview

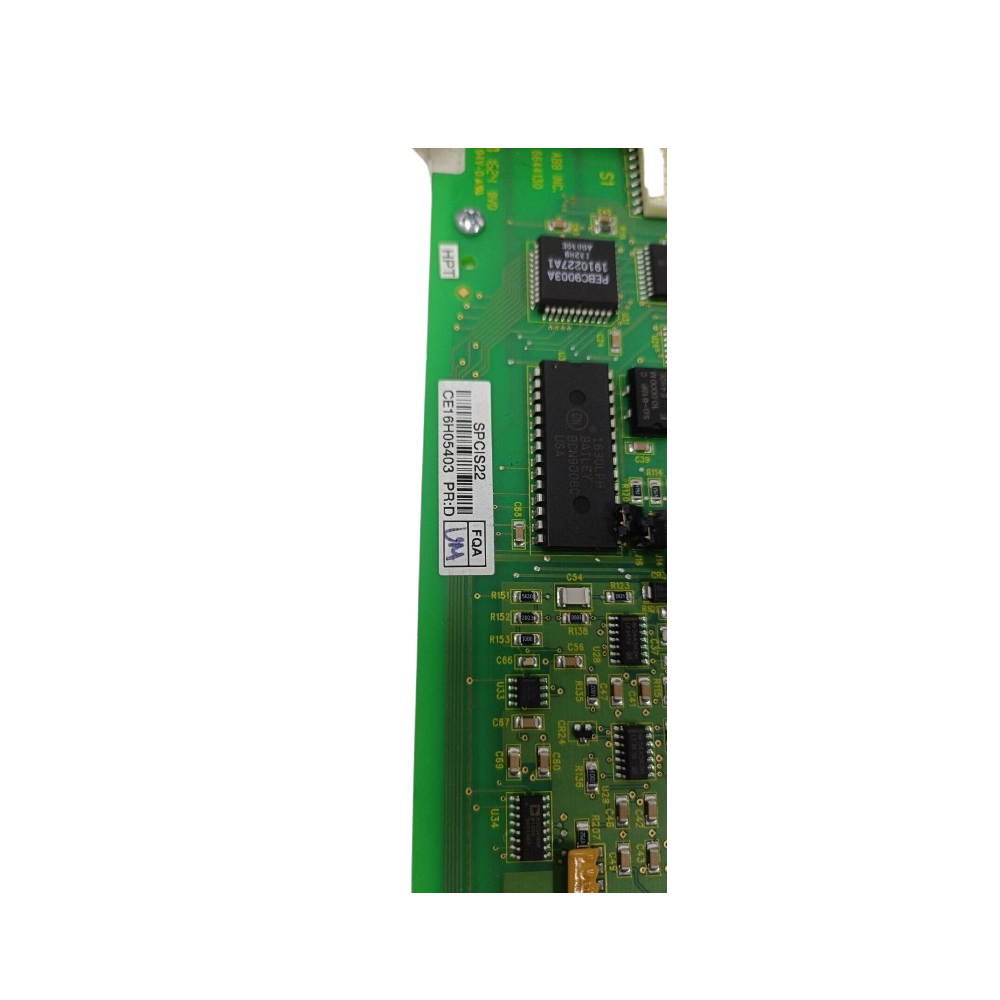

The SPCIS22 from ABB is a versatile control I/O module designed for industrial automation. It integrates analog and digital inputs and outputs, enabling flexible control over complex processes. Its compact size and low weight suit both new and retrofitted systems.
Key Features
- Includes 4 analog inputs (AI) and 3 digital inputs (DI) for varied signal acquisition.
- Provides 4 digital outputs (DO) and 2 analog outputs (AO) for precise control.
- Supports universal analog input ranges for both voltage and current signals.
- Digital outputs operate as transistor sinking type, suitable for 24 VDC devices.
- Galvanically isolated channels enhance system safety and signal integrity.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SPCIS22 |
| Manufacturer | ABB |
| Product Type | Control I/O Module |
| Analog Inputs | 4 universal AI (Voltage: 0–10V, 0–5V, ±10V, ±5V; Current: 4–20mA, 0–20mA) |
| AI Resolution | 12-bit |
| AI Accuracy | ±0.1% of full scale |
| Digital Inputs | 3 dry contact DI, 24 VDC, 10 mA |
| Analog Outputs | 2 voltage AO, 0–10 V, 12-bit, ±0.1% accuracy |
| Digital Outputs | 4 transistor DO, sinking type, 24 VDC, 200 mA |
| Isolation | Galvanically isolated for AI, AO, DI, DO |
| Power Supply | 24 VDC, 1 A |
| Dimensions | 350 mm x 260 mm x 70 mm |
| Net Weight | 0.45 kg |
| Environmental | Operating: -20°C to +60°C, Storage: -40°C to +85°C |
| Humidity | 5–95% non-condensing |
| Certifications | WEEE Category 5, HS Code 853890, CE, compliant with industrial standards |
Industrial Application
The ABB SPCIS22 module efficiently manages analog and digital signals in automated systems. Its precise measurement and control capabilities make it ideal for process monitoring, machinery control, and industrial automation projects requiring compact, reliable I/O solutions.
Details
| Weight | 0.45 kg |
|---|---|
| Dimensions | 350 × 260 × 70 mm |
