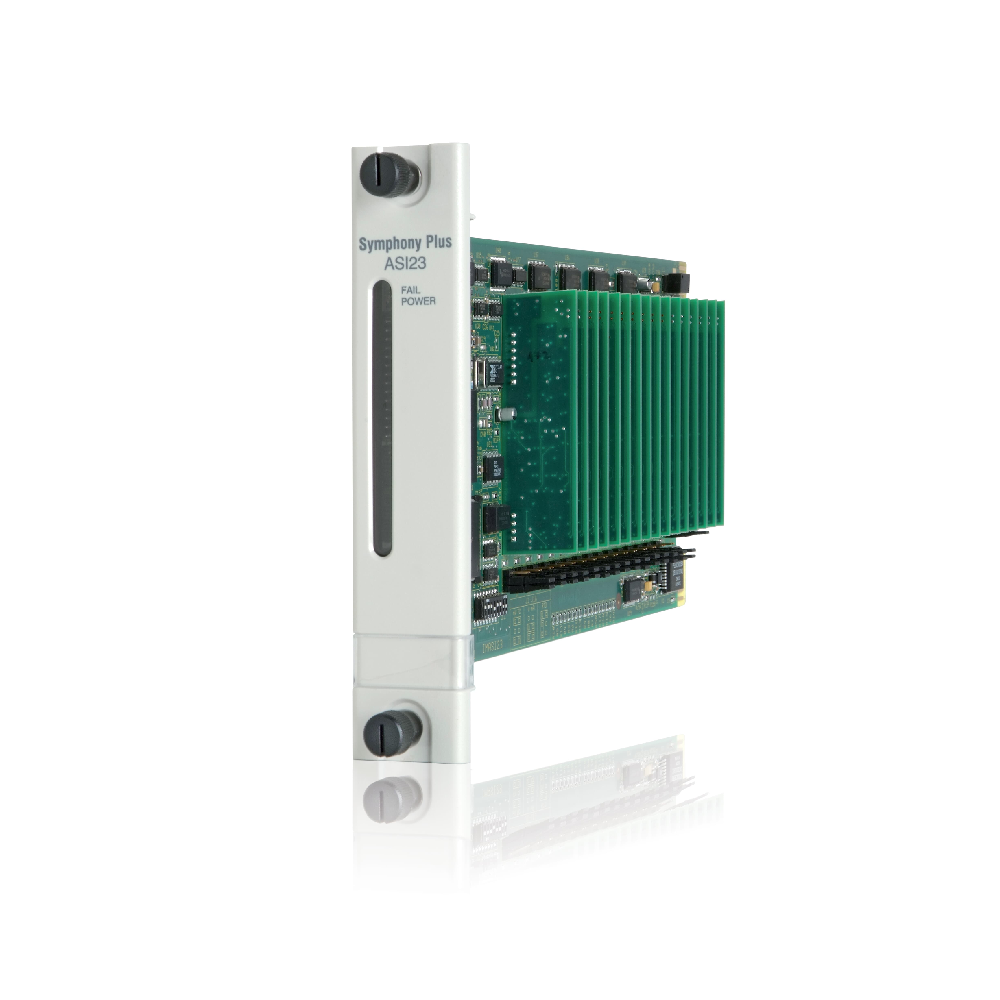

The ABB SPASI23 is a high-performance Analog Input (AI) Module designed for industrial automation and process control applications. Supporting 16 input channels, this module accommodates thermocouples (TC), millivolt (mV) signals, and RTD sensors, providing precise and reliable data acquisition for advanced control systems.

Key Features

• Model: SPASI23
• Type: Analog Input Module (16 Channels)
• Supported Signals: Thermocouples (TC), millivolt (mV), and RTD sensors
• High-Level Processing: Optimized for accurate signal measurement in demanding environments
• Dimensions: 269.24 mm (W) x 360.68 mm (H) x 73.66 mm (D)
• Net Weight: 0.771 kg
• Compliance: WEEE Category 5, HS Code 85389081
• SCIP Reference: 6a9a9917-496b-4993-9108-8a90a084fefb (Malta)

Applications

• Industrial Control Systems: Seamlessly integrates into ABB Symphony Plus systems.
• Data Acquisition: Collects and processes signals from thermocouples, mV sources, and RTD sensors.
• High-Performance Measurement: Ensures precise analog input handling for critical industrial processes.
• Symphony Plus HR Series: Part of the Harmony Rack (HR) I/O modules for scalable and reliable system expansion.

Advantages

• Provides 16 independent analog channels for simultaneous monitoring.
• Supports multiple sensor types, enhancing flexibility in system design.
• Compact and lightweight, simplifying installation in HR I/O racks.
• Ensures high accuracy and reliability, even in demanding industrial environments.

FAQ

Q1: What signals does the SPASI23 module support?
A1: It supports thermocouples (TC), millivolt (mV), and RTD input signals.

Q2: Which systems are compatible with this module?
A2: The SPASI23 integrates with ABB Symphony Plus and other compatible HR I/O systems.

Q3: How many channels does the SPASI23 have?
A3: The module provides 16 analog input channels.
