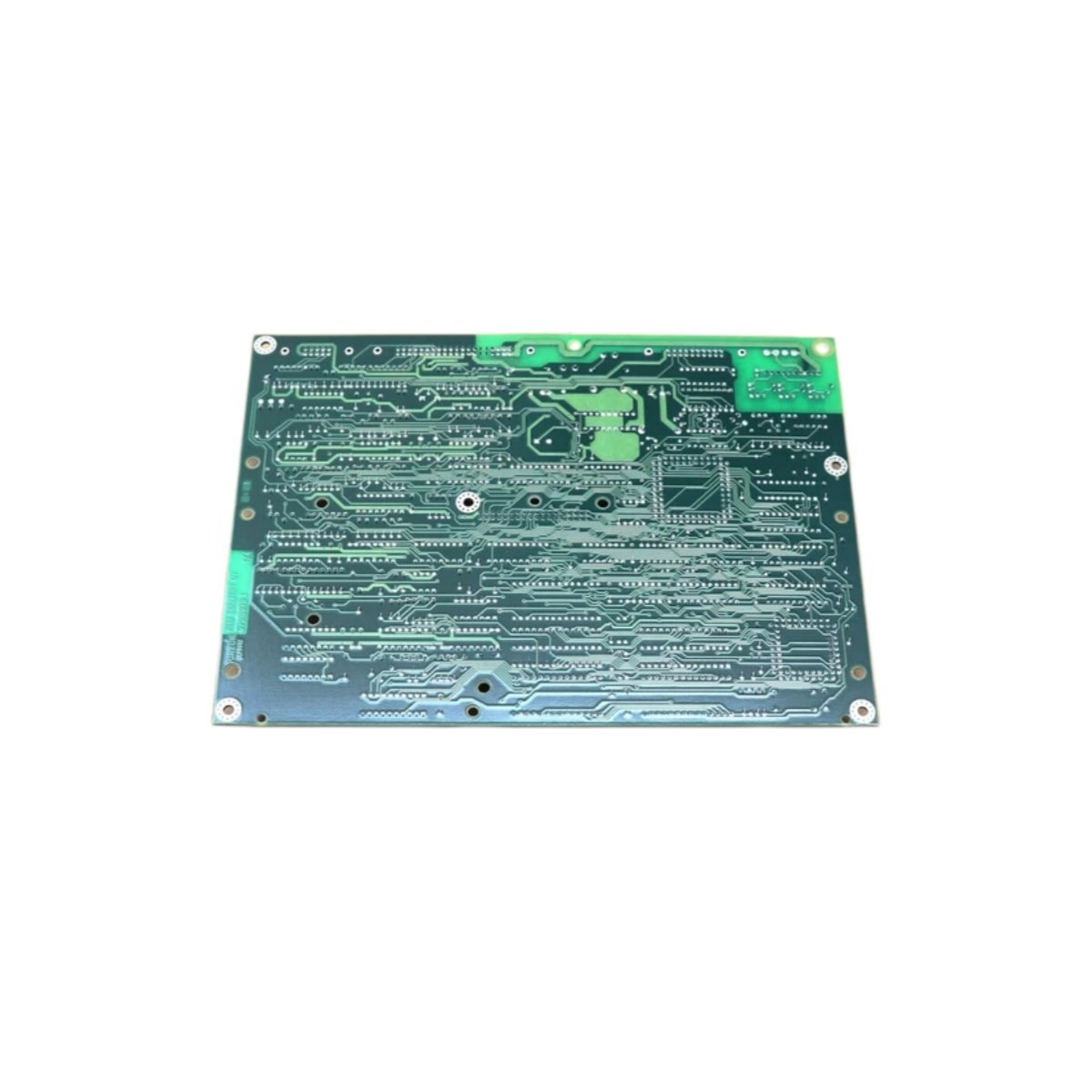

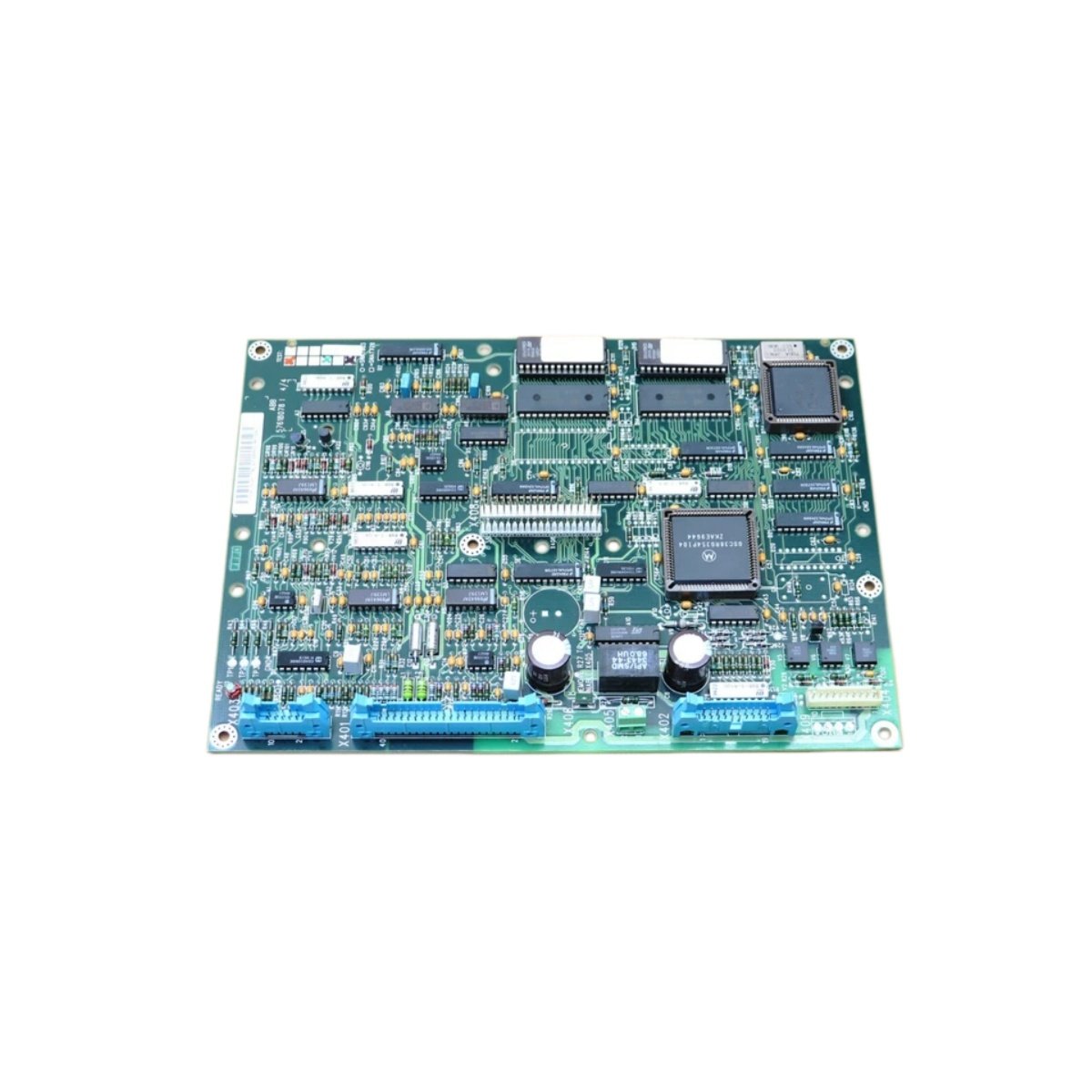

Core Technical Specifications of the ABB SNAT7780
The ABB SNAT7780 operates as a safety-rated servo controller board for industrial drive systems. This board manages motion control and enforces safety shutdown functions. Engineers specify it for dependable servo regulation inside compatible ABB platforms.
Physical Dimensions and Weight Parameters
The SNAT7780 uses a compact PCB layout that fits standard ABB drive racks. Its light weight allows one technician to handle installation safely. Additionally, the slim profile preserves airflow inside crowded cabinets.
| Parameter | Specification |
|---|---|
| Product Type | Safety-Rated Servo Controller Board |
| Compatibility | ABB Drive and Servo Systems |
| Mounting Style | Rack or Panel Mount |
| Interface Type | Multi-pin Connector |
| Function | Motion Control and Safety Shutdown |
| Circuit Type | Digital and Analog Stages |
| Storage Element | Onboard Capacitor Bank |
| Operating Role | Servo Regulation and Safety Enforcement |
Interface and Connection Details
Multi-pin connectors on the SNAT7780 link the board to backplane and servo wiring. These interfaces carry motion commands, feedback signals, and safety status data. Consequently, technicians trace faults quickly through standard ABB diagnostics.
Component Count and Internal Layout
The board contains a motion processor, feedback circuits, and safety logic blocks. Each component supports deterministic control across the full operating range. Moreover, the modular layout simplifies inspection and board-level replacement.
Energy Storage and Power Characteristics
A capacitor bank on the SNAT7780 stabilizes voltage during rapid motion transients. This energy storage element maintains logic integrity when supply rails fluctuate. Therefore, the board delivers consistent servo performance even in noisy plants.
Integration and Maintenance Notes
The SNAT7780 drops into existing ABB cabinets without extra adapters. Replacement work requires proper grounding to prevent electrostatic damage. Meanwhile, routine checks keep the board within specified safety limits.
Details
| Weight | 0.35 kg |
|---|---|
| Dimensions | 90 × 45 × 100 mm |
