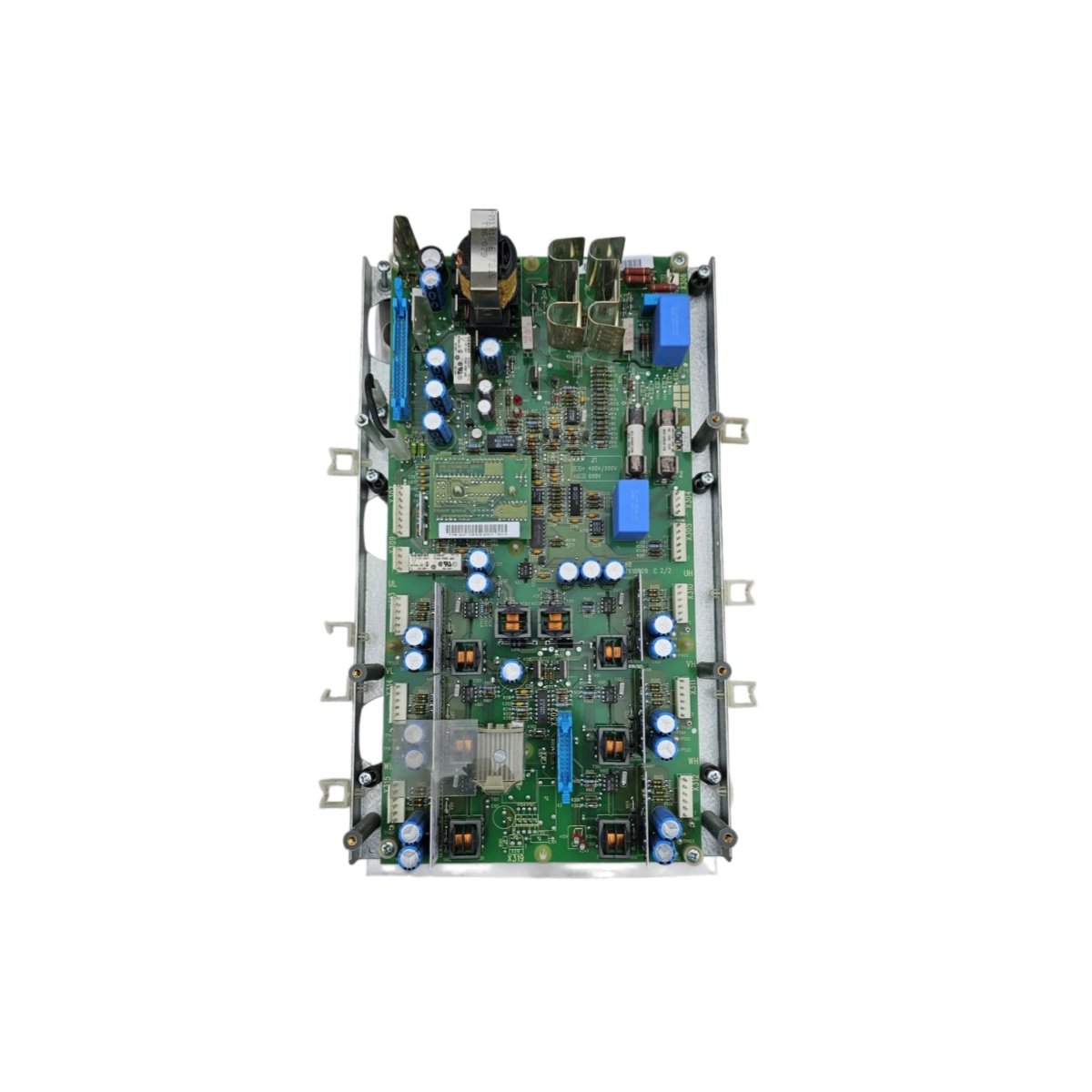

Core Technical Specifications of the ABB SNAT7261
The ABB SNAT7261 operates as a main interface control board for industrial drive systems. This board manages communication between the control unit and peripheral modules. Engineers rely on it for stable data exchange inside compatible ABB platforms.
Physical Dimensions and Weight Parameters
The SNAT7261 uses a compact PCB layout that fits standard ABB drive racks. Its light weight allows one technician to handle installation safely. Additionally, the slim profile preserves airflow inside crowded cabinets.
| Parameter | Specification |
|---|---|
| Product Type | Main Interface Control Board |
| Compatibility | ABB Drive Systems |
| Mounting Style | Rack or Panel Mount |
| Interface Type | Multi-pin Connector |
| Signal Function | Data Exchange and Control Routing |
| Circuit Type | Digital and Analog Stages |
| Storage Element | Onboard Capacitor Bank |
| Operating Role | Interface Control and Communication |
Interface and Connection Details
Multi-pin connectors on the SNAT7261 link the board to backplane and field wiring. These interfaces carry command signals, status data, and fault feedback. Consequently, technicians trace communication faults quickly through standard ABB diagnostics.
Component Count and Internal Layout
The board contains a control processor, interface circuits, and signal routing blocks. Each component supports reliable data transfer across the full operating range. Moreover, the modular layout simplifies inspection and board-level replacement.
Energy Storage and Power Characteristics
A capacitor bank on the SNAT7261 stabilizes voltage during transient load swings. This energy storage element maintains logic integrity when supply rails fluctuate. Therefore, the board delivers consistent control even in electrically noisy plants.
Integration and Maintenance Notes
The SNAT7261 drops into existing ABB cabinets without extra adapters. Replacement work requires proper grounding to prevent electrostatic damage. Meanwhile, routine checks keep the board within specified performance limits.
Details
| Weight | 0.6 kg |
|---|---|
| Dimensions | 180 × 110 × 20 mm |
