Core Technical Specifications of the ABB SNAT633PAC

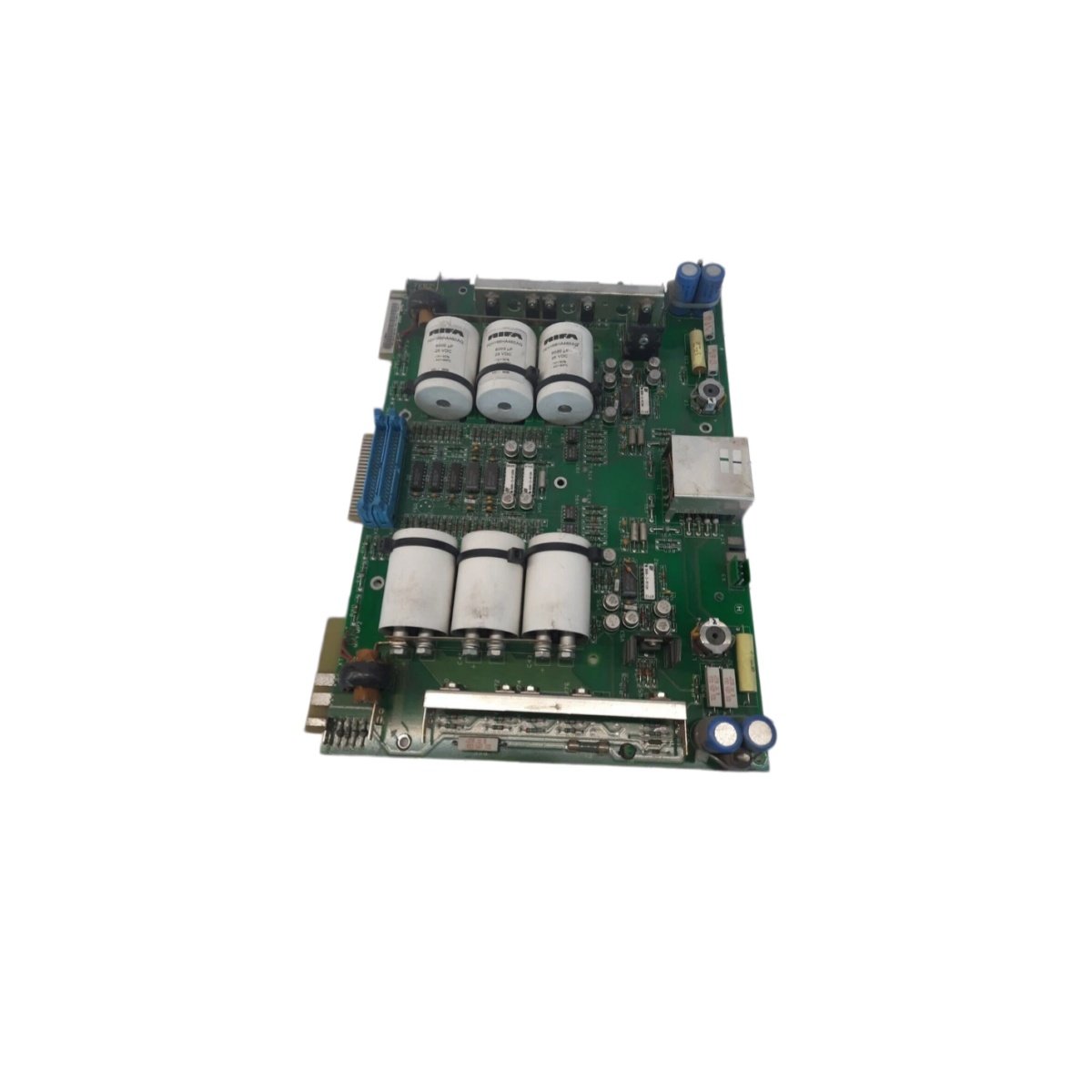

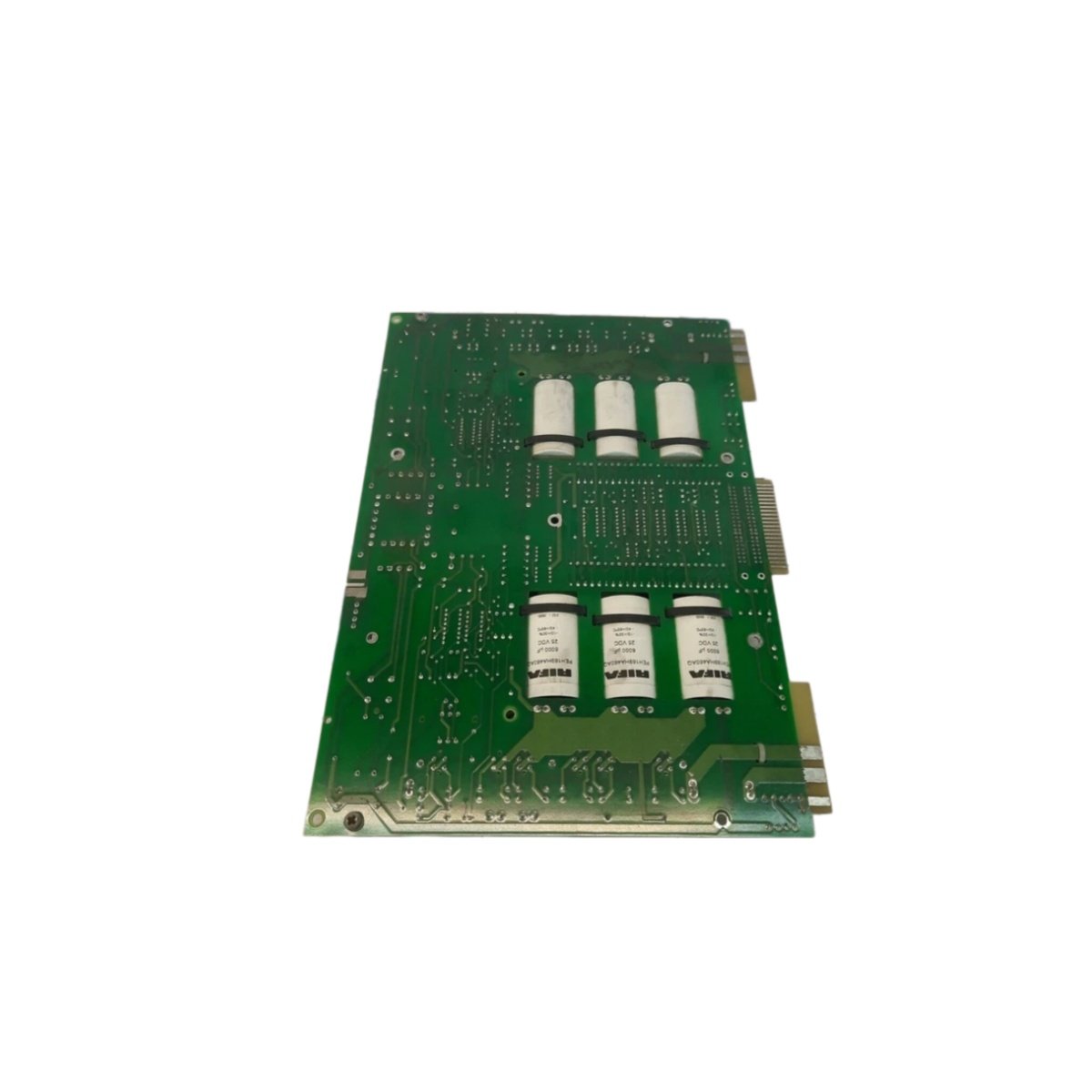

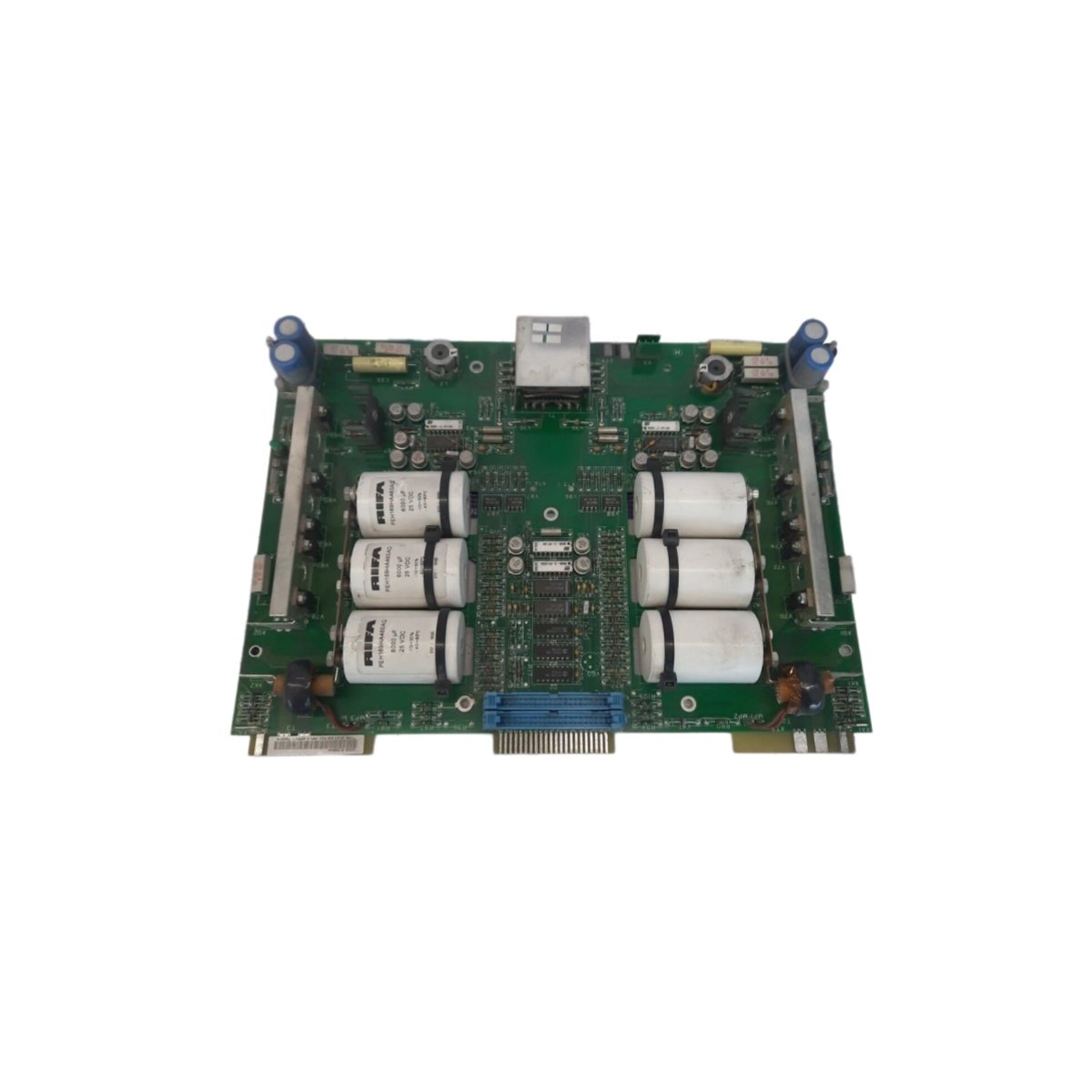

The ABB SNAT633PAC SNAT 633 PAC 61049444 works as a pulse amplifier board for industrial drive systems. This board strengthens and shapes firing pulses before they reach power semiconductors. Engineers select it for dependable gate control in compatible ABB platforms.

Physical Dimensions and Weight Parameters

The SNAT633PAC SNAT 633 PAC 61049444 uses a compact PCB layout that fits standard ABB racks. Its light weight allows one technician to handle installation safely. Additionally, the slim profile preserves airflow inside crowded cabinets.

Interface and Connection Details

Multi-pin connectors on the link the board to gate wiring. These interfaces carry timing pulses, feedback signals, and fault data. Consequently, technicians trace firing faults quickly through standard ABB diagnostics.

Component Count and Internal Layout

The board contains amplifier stages, timing circuits, and signal isolation blocks. Each component supports precise pulse delivery across the full switching range. Moreover, the modular layout simplifies inspection and board-level replacement.

Energy Storage and Power Characteristics

A capacitor bank on the stabilizes voltage during rapid switching. This energy storage element maintains pulse integrity when supply rails fluctuate. Therefore, the board delivers consistent firing accuracy even in noisy plants.

Integration and Maintenance Notes

The SNAT633PAC SNAT 633 PAC 61049444 drops into existing ABB cabinets without extra adapters. Replacement work requires proper grounding to prevent electrostatic damage. Meanwhile, routine checks keep the board within specified timing limits.
