Product Overview

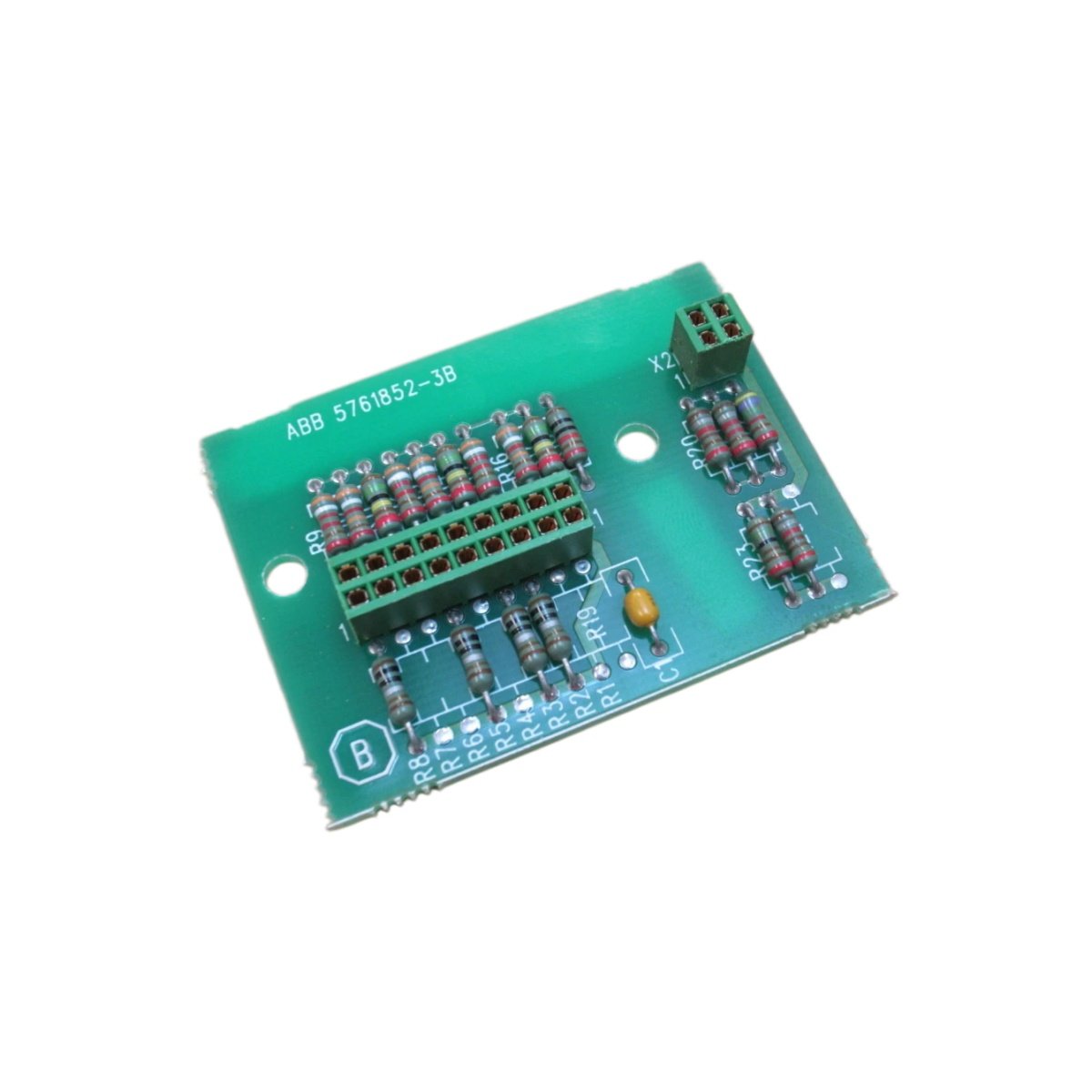

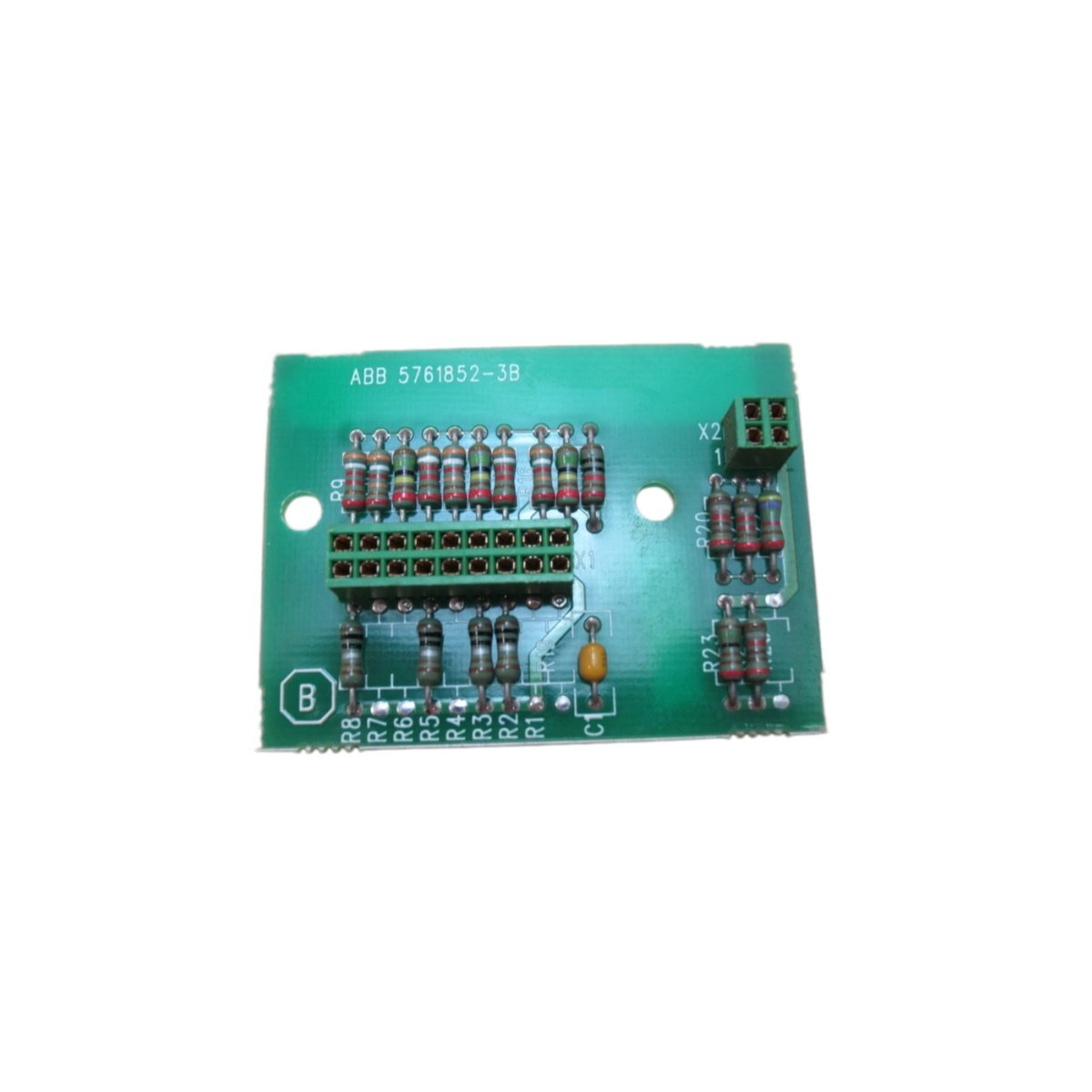

The SNAT0100-6B SNAT 0100-6B 61054588 5761852-3B operates as a drive control board within ABB ACS series variable frequency drives. This assembly manages modulation, feedback processing, and fault monitoring for the power stage. Consequently, engineers restore drive functionality quickly whenever the original board fails.
Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | Drive control board |
| Compatible Systems | ABB ACS series drives |
| Function | Modulation and feedback processing |
| Power Supply | 24 V DC nominal |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Mounting Type | Chassis mount |
| Weight | Approximately 0.8 kg |
| Dimensions | 230 mm × 150 mm × 25 mm |
| Board Material | FR-4 printed circuit board |
| Connection Type | Edge connector and terminal blocks |
| Protection Features | Overcurrent and fault detection |
Construction and Materials
The board uses FR-4 material, which resists heat and mechanical stress. Meanwhile, the edge connector provides secure mating with the drive backplane. The chassis mount layout fits standard ABB enclosures, so replacements require minimal downtime.
Interface and System Compatibility
This control board integrates with compatible ABB ACS series drives and power stages. Additionally, it processes feedback signals directly from current and voltage sensors. Therefore, users maintain accurate motor regulation during demanding operations.
Installation Guidelines
Power down the drive and discharge capacitors before removing the old board. Furthermore, handle the edge connector carefully to avoid bending the contacts. Correct seating prevents intermittent faults, so verify alignment before tightening screws.
Details
| Weight | 0.6 kg |
|---|---|
| Dimensions | 180 × 110 × 20 mm |
