Product Overview

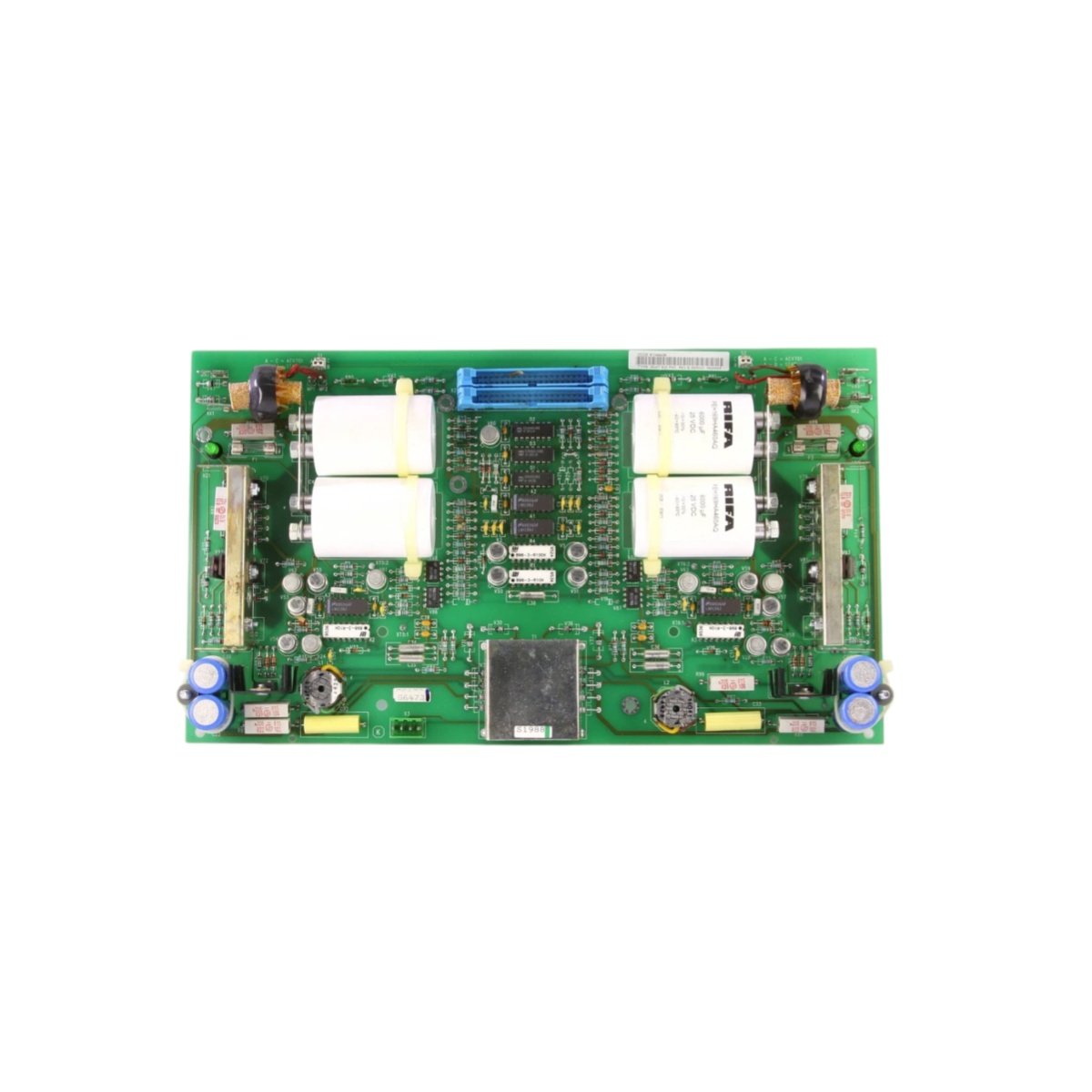

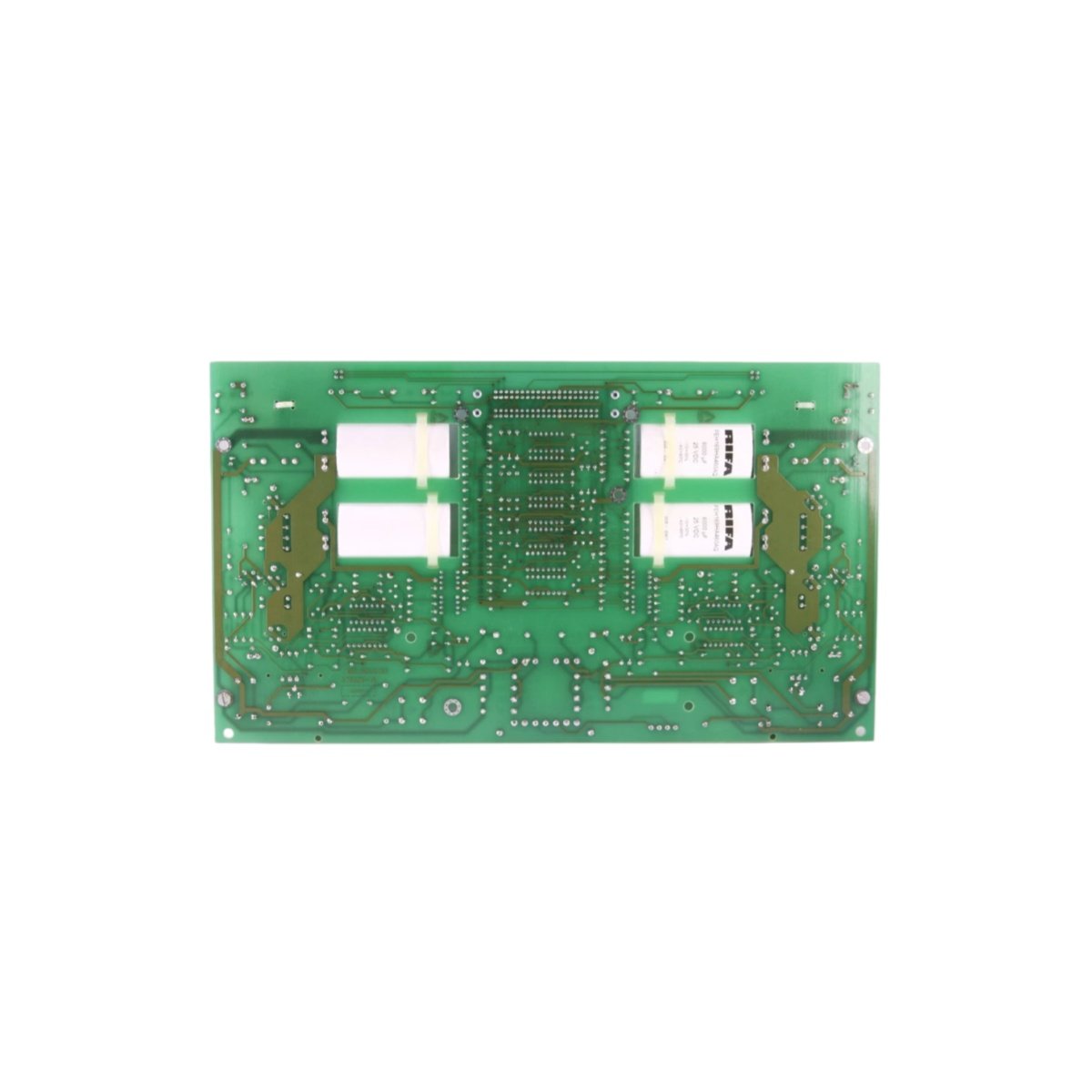

The SNAT 632 PAC functions as a pulse amplifier board within ABB industrial drive systems. This assembly strengthens gate firing pulses before they reach the power semiconductors. Consequently, engineers achieve reliable switching and stable torque control across demanding motor applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | Pulse amplifier board |
| Compatible Systems | ABB drive platforms |
| Function | Gate pulse amplification |
| Power Supply | 24 V DC nominal |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Mounting Type | Chassis mount |
| Weight | Approximately 0.6 kg |
| Dimensions | 200 mm × 140 mm × 25 mm |
| Board Material | FR-4 printed circuit board |
| Connection Type | Edge connector and terminal blocks |
| Protection Features | Overcurrent and short-circuit detection |
Construction and Materials
The board uses FR-4 material, which resists heat and mechanical stress. Meanwhile, the edge connector provides secure mating with the drive backplane. The chassis mount layout fits standard ABB enclosures, so replacements require minimal downtime.
Interface and System Compatibility
This amplifier board integrates with compatible ABB drive platforms and power stages. Additionally, it receives timing signals directly from the main control board. Therefore, users maintain precise firing angles during rapid load changes.
Installation Guidelines
Power down the drive and discharge capacitors before removing the old board. Furthermore, handle the edge connector carefully to avoid bending the contacts. Correct seating prevents intermittent faults, so verify alignment before tightening screws.
Details
| Weight | 0.6 kg |
|---|---|
| Dimensions | 180 × 110 × 20 mm |
