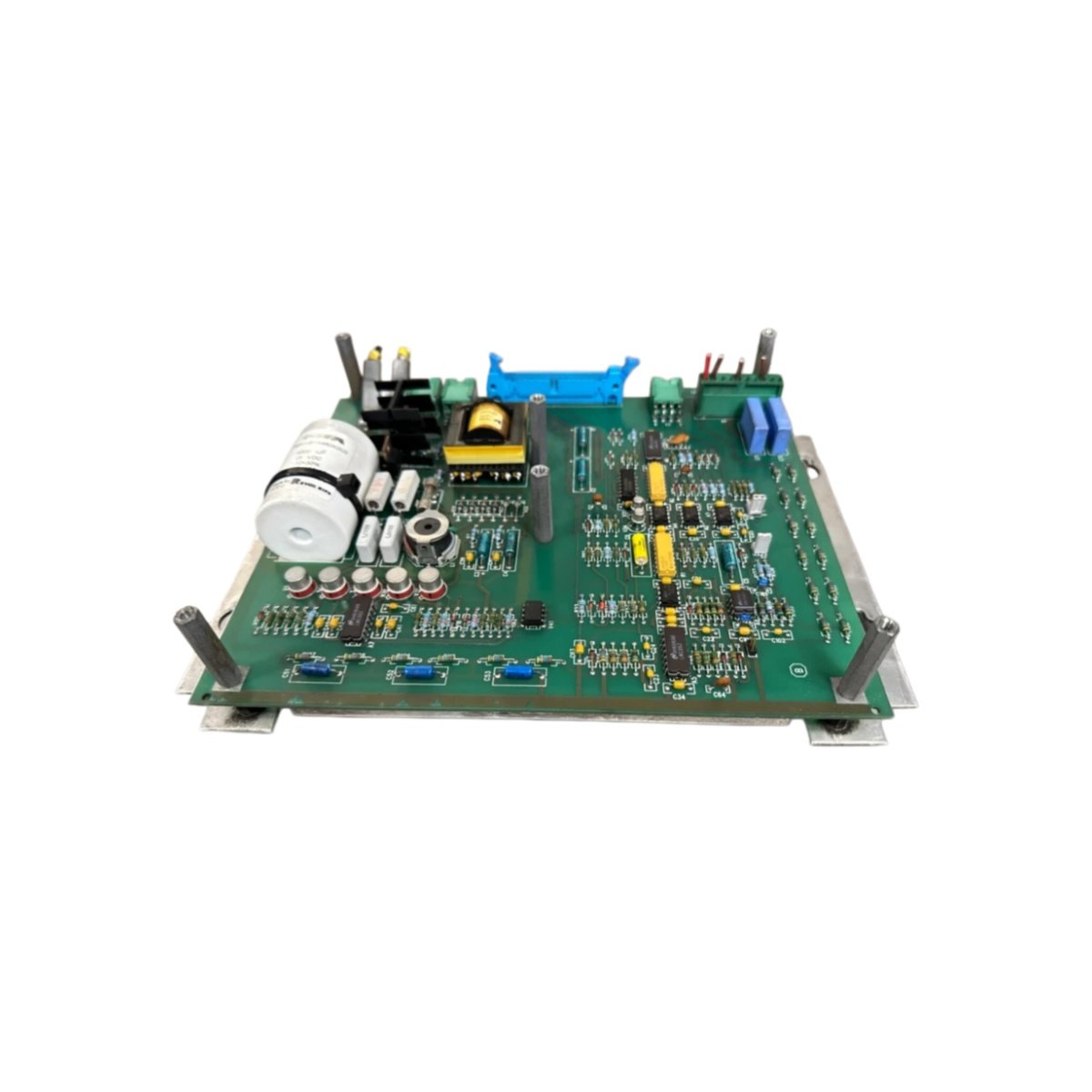

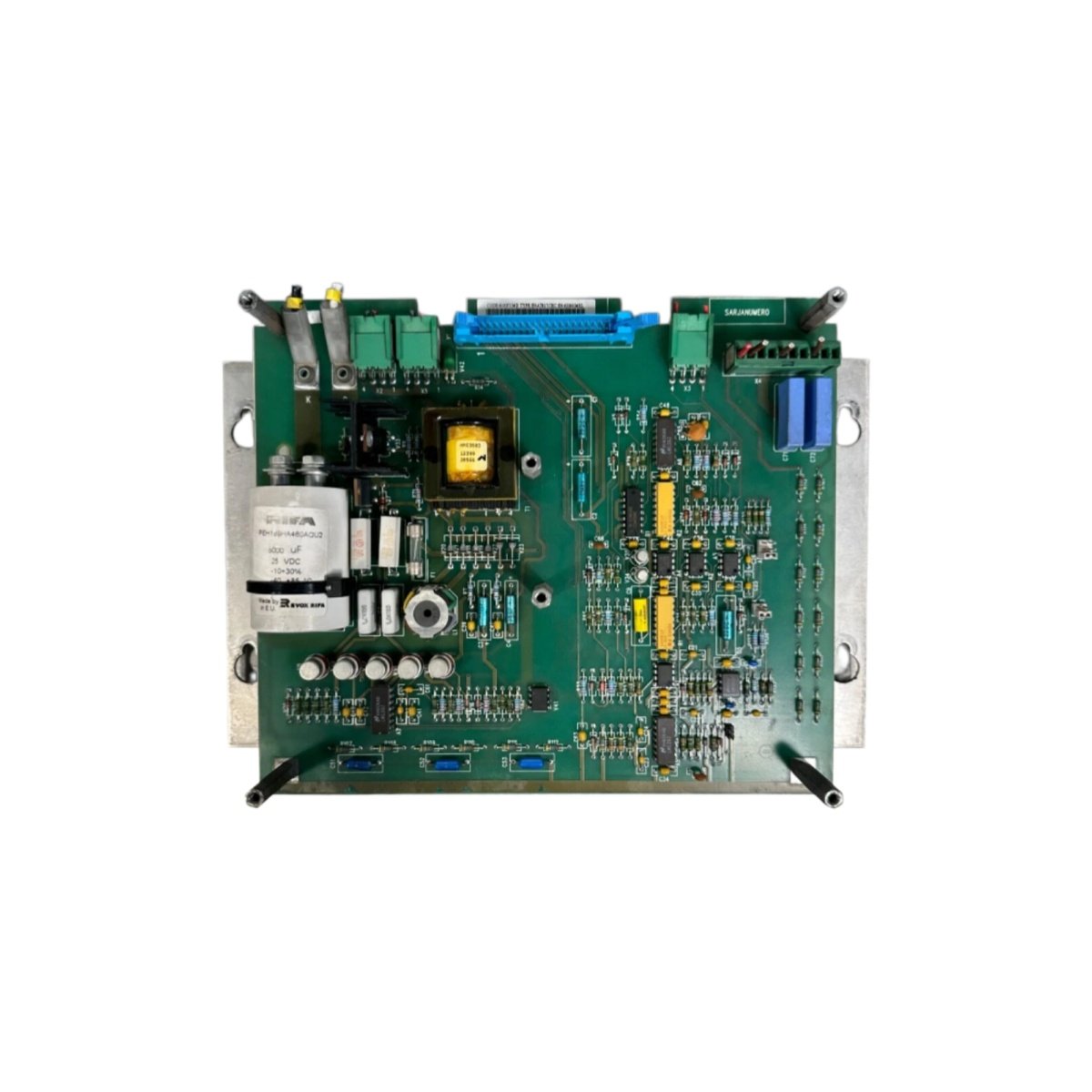

Product Overview
The SNAT 617 CHC operates as a control module within ABB industrial drive and automation platforms. This assembly manages signal processing, communication, and fault monitoring for connected power stages. Consequently, engineers restore system functionality quickly whenever the original module fails.
Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | Control module |
| Compatible Systems | ABB drive and automation platforms |
| Function | Signal processing and fault monitoring |
| Power Supply | 24 V DC nominal |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Mounting Type | Chassis mount |
| Weight | Approximately 0.7 kg |
| Dimensions | 220 mm × 150 mm × 25 mm |
| Board Material | FR-4 printed circuit board |
| Connection Type | Edge connector and terminal blocks |
| Protection Features | Overcurrent and fault detection |
Construction and Materials
The module uses FR-4 material, which resists heat and mechanical stress. Meanwhile, the edge connector provides secure mating with the drive backplane. The chassis mount layout fits standard ABB enclosures, so replacements require minimal downtime.
Interface and System Compatibility
This control module integrates with compatible ABB drive platforms and power stages. Additionally, it processes feedback signals directly from current and voltage sensors. Therefore, users maintain accurate regulation during demanding motor operations.
Installation Guidelines
Power down the drive and discharge capacitors before removing the old module. Furthermore, handle the edge connector carefully to avoid bending the contacts. Correct seating prevents intermittent faults, so verify alignment before tightening screws.
Details
| Weight | 0.35 kg |
|---|---|
| Dimensions | 90 × 45 × 100 mm |
