Product Overview

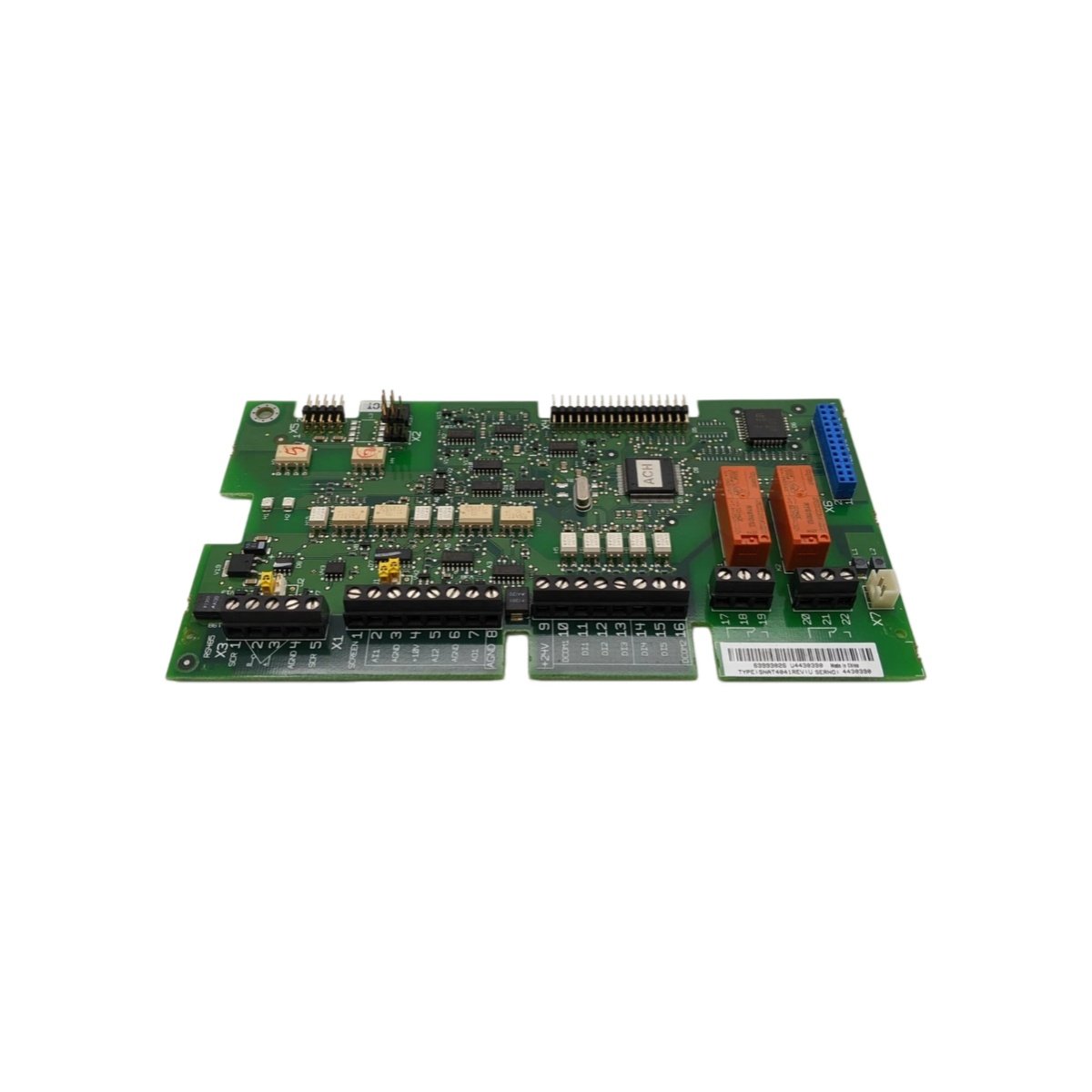

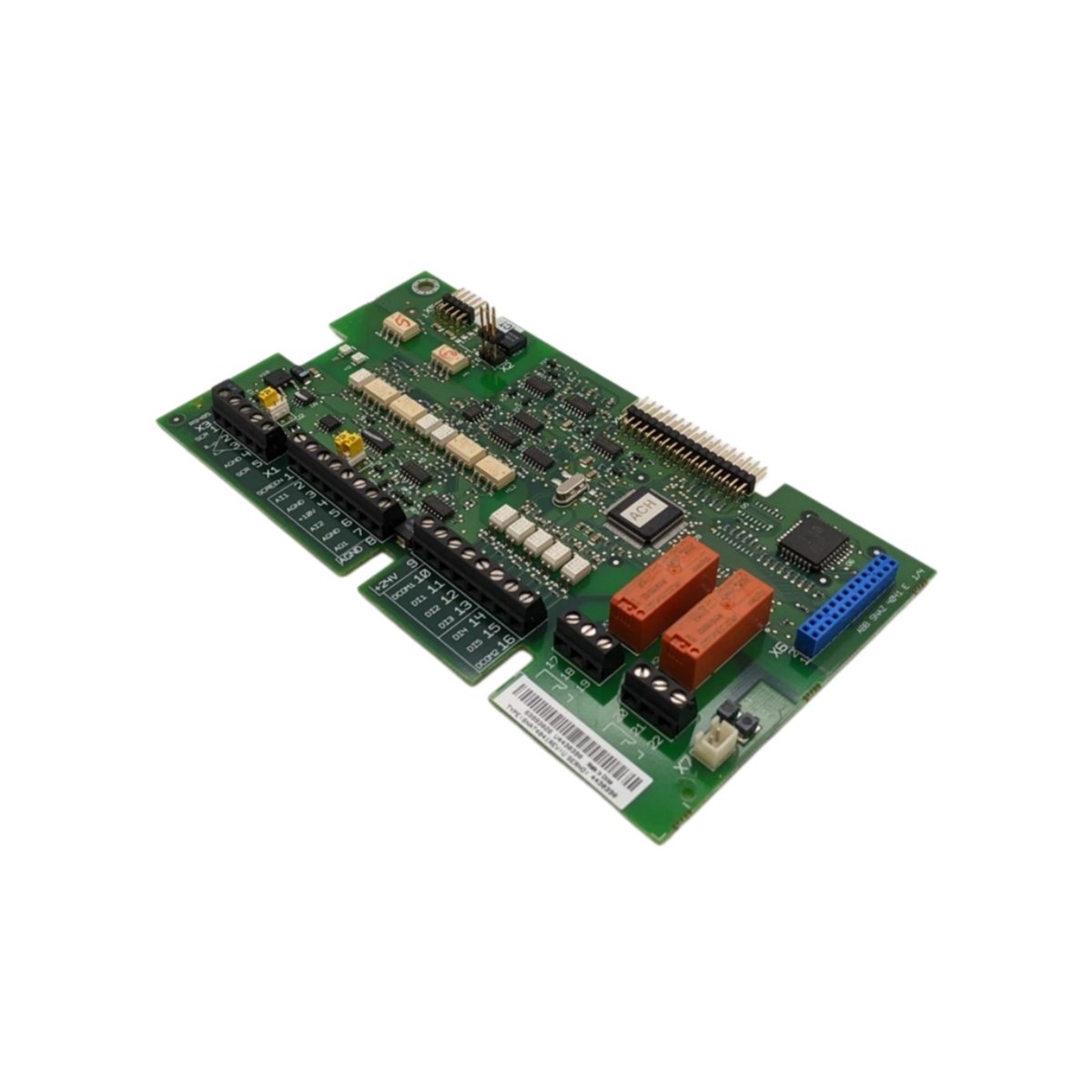

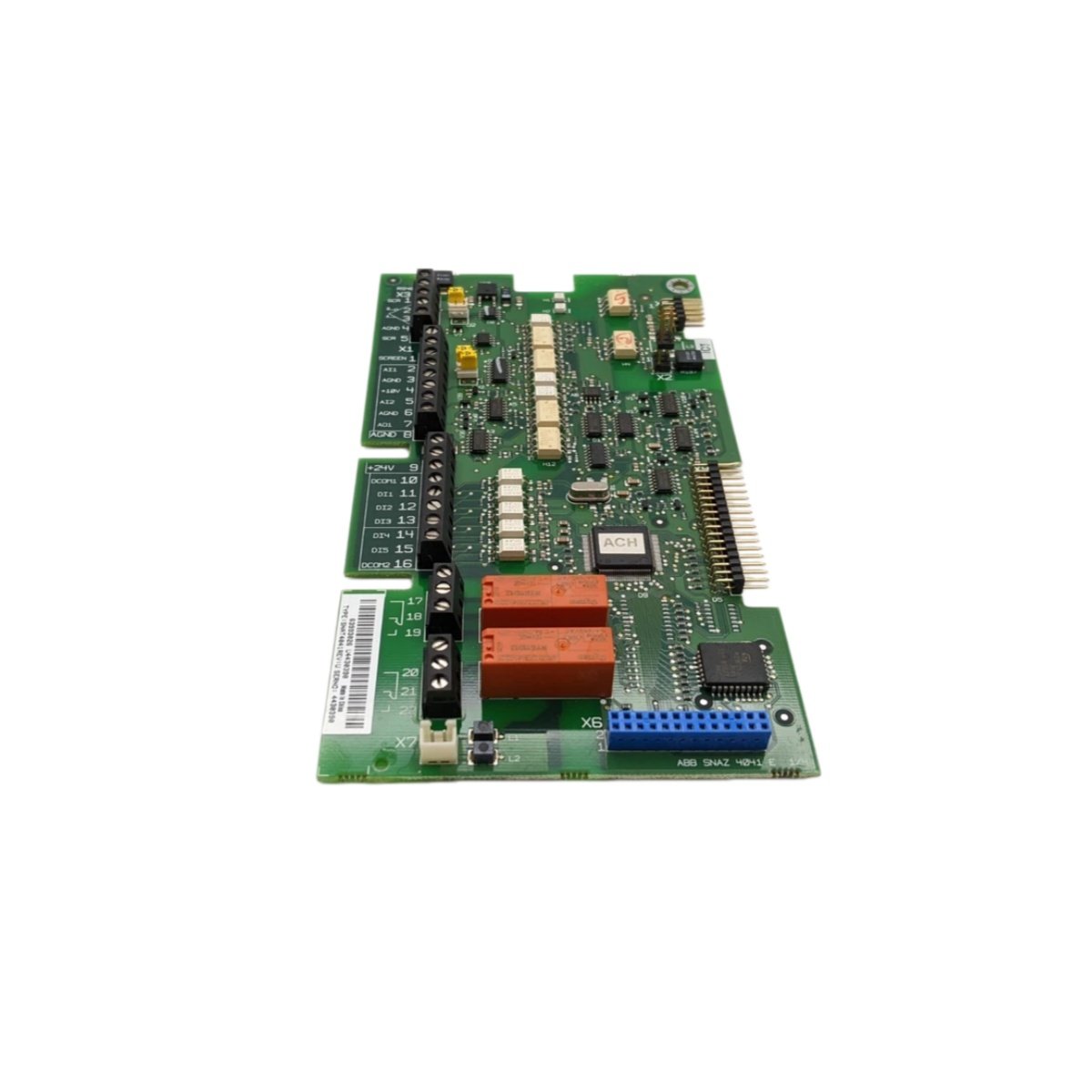

The SNAT 4041 operates as a drive printed control circuit board within ABB industrial drive systems. This Rev A assembly manages gate firing, feedback processing, and fault detection for power stages. Consequently, engineers restore drive functionality quickly when the original board fails.
Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | Drive printed control circuit board |
| Revision | Rev A |
| Compatible Systems | ABB drive platforms |
| Function | Gate firing and feedback processing |
| Power Supply | 24 V DC nominal |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Mounting Type | Chassis mount |
| Weight | Approximately 0.7 kg |
| Dimensions | 220 mm × 150 mm × 25 mm |
| Board Material | FR-4 printed circuit board |
| Connection Type | Edge connector and terminal blocks |
| Protection Features | Overcurrent and fault detection |
Construction and Materials
The board uses FR-4 material, which resists heat and mechanical stress. Meanwhile, the edge connector provides secure mating with the drive backplane. The chassis mount layout fits standard ABB enclosures, so replacements require minimal downtime.
Interface and System Compatibility
This control board integrates with compatible ABB drive platforms and power stages. Additionally, it processes feedback signals directly from current and voltage sensors. Therefore, users maintain accurate regulation during demanding motor operations.
Installation Guidelines
Power down the drive and discharge capacitors before removing the old board. Furthermore, handle the edge connector carefully to avoid bending the contacts. Correct seating prevents intermittent faults, so verify alignment before tightening screws.
Details
| Weight | 0.6 kg |
|---|---|
| Dimensions | 180 × 110 × 20 mm |
