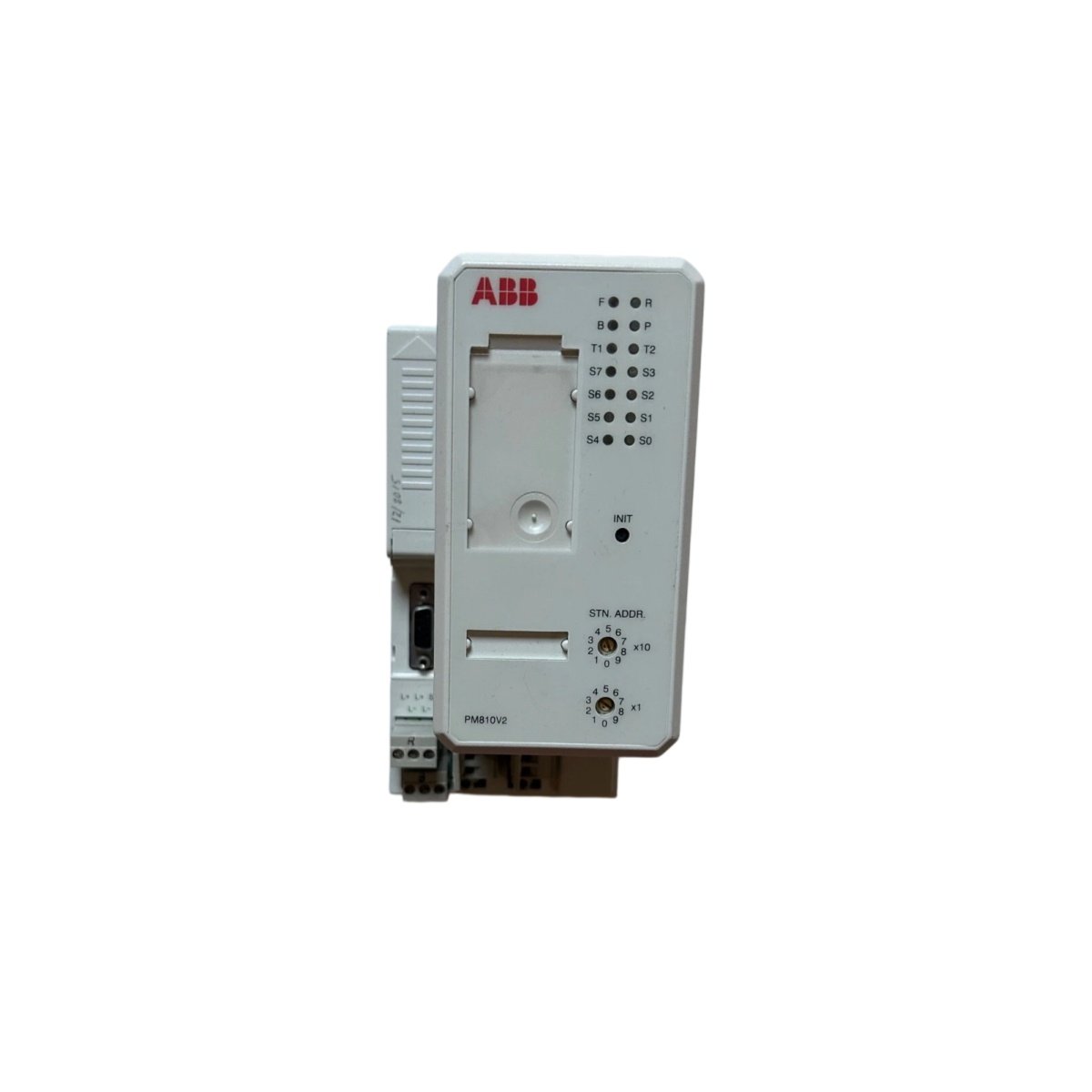

The ABB SE99033514 PM810V2 processor module delivers powerful execution capabilities for ABB distributed control systems. This advanced controller features a 32-bit RISC architecture that handles complex process algorithms efficiently. Its compact casing measures 280 mm in height, 45 mm in width, and 260 mm in depth.

Technical Specifications

Processing Performance and Execution Speed

The ABB SE99033514 PM810V2 executes 1,000 Boolean instructions in just 1.5 ms for rapid process response. This exceptional speed suits demanding applications like turbine control, chemical reactor management, and power generation. The processor handles floating-point arithmetic and complex PID algorithms without scan cycle degradation. Engineers can implement advanced strategies involving cascade loops, feedforward control, and adaptive tuning.

Memory Architecture and Data Retention

This processor integrates 128 MB of RAM for application programs and runtime data storage. The built-in 64 MB flash memory retains the firmware and configuration during extended power outages. A dedicated 512 KB battery-backed SRAM maintains critical process values for up to five years. Such robust memory protection prevents data loss and enables seamless system recovery after unexpected shutdowns.

I/O Expansion and System Scalability

The ABB SE99033514 PM810V2 supports up to 2,048 I/O points across multiple remote racks. This capacity suits large-scale distributed control applications in process industries. Users can distribute I/O modules locally within the same cabinet or remotely over fieldbus networks. The system accommodates future expansion by adding more I/O chassis without replacing the main controller.

Communication Interfaces and Network Integration

Two Ethernet ports provide redundant connectivity for plant-wide system communications. The RS-232 interface enables direct programming access for commissioning and troubleshooting tasks. A USB port facilitates rapid firmware updates and configuration file transfers. These interfaces allow the ABB SE99033514 PM810V2 to exchange data with DCS workstations, HMIs, and asset management software in real time.

Power Efficiency and Thermal Management

The controller draws 6.5 W from the system power supply during standard operation. This moderate consumption reduces heat accumulation in densely packed control cabinets. The unit includes an integrated temperature sensor for monitoring internal thermal conditions. This sensor alerts operators if the module approaches critical temperature thresholds.

Installation and Mounting Options

Mount the ABB SE99033514 PM810V2 on a 35 mm DIN rail or directly onto the system backplane. The unit locks securely with integrated retaining clips for vibration-resistant installation. Its 45 mm width preserves valuable rack space for additional I/O modules. Front-accessible LED indicators display power, CPU activity, and network status for quick visual checks.

Diagnostics and Self-Monitoring Features

The controller runs continuous self-diagnostics to detect memory errors or processor faults. It logs these events in an internal error buffer for later analysis during maintenance. A built-in watchdog timer triggers a safe state if the processor stops responding. Such self-protection mechanisms enhance system availability and protect connected equipment.
