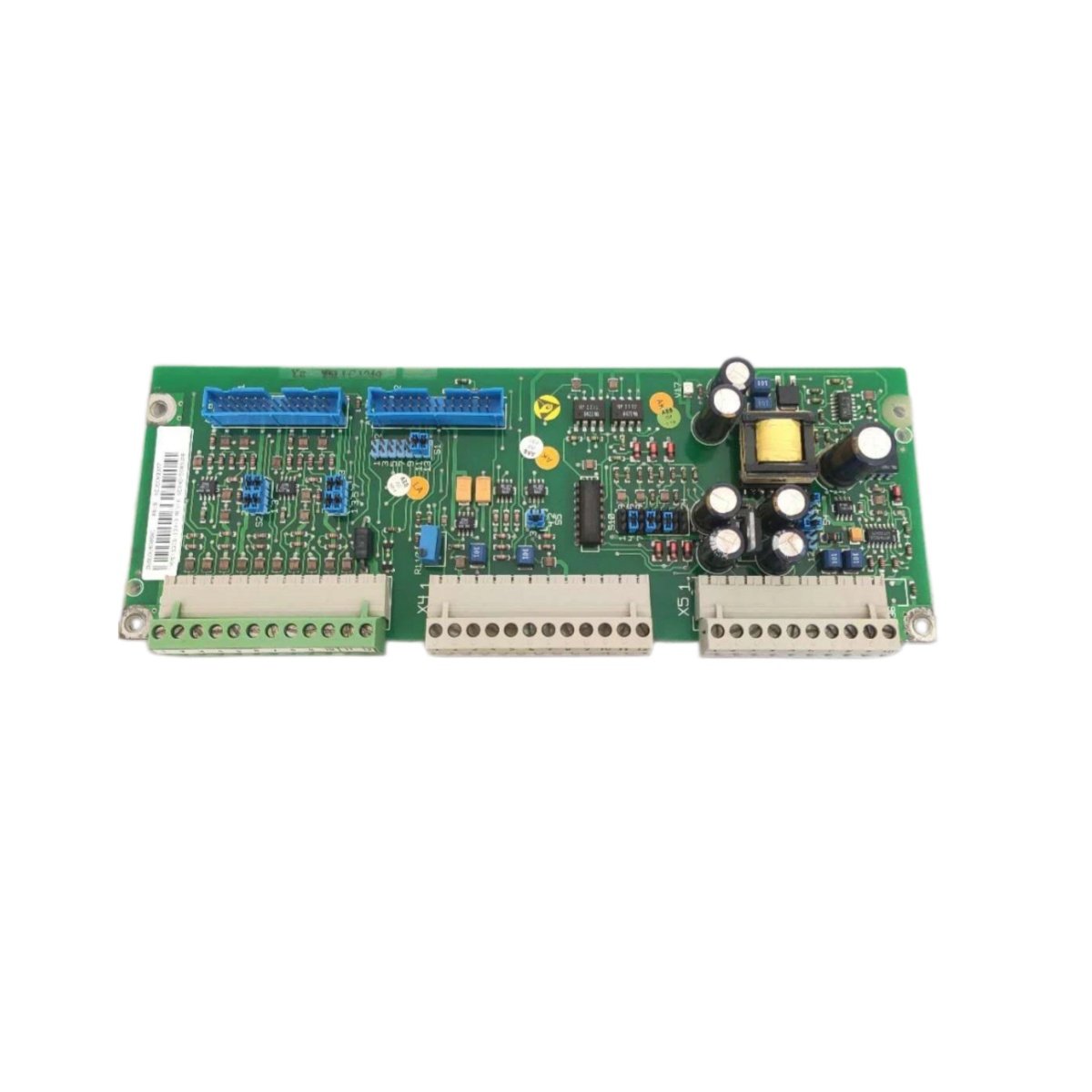

The ABB SDCS-IOB-3 3BSE004086R1 analog interface board converts field signals for distributed control system processing. This versatile module handles both input and output analog signals with high accuracy. Its PCB measures 240 mm in length, 180 mm in width, and 30 mm in height.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | SDCS-IOB-3 3BSE004086R1 |
| Category | Analog Interface Board |
| Analog Inputs | 8 channels (differential) |
| Analog Outputs | 4 channels |
| Input Signal Types | 0–10 V, ±10 V, 4–20 mA, 0–20 mA |
| Output Signal Types | 0–10 V, 4–20 mA |
| Resolution (Input) | 14 bits |
| Resolution (Output) | 12 bits |
| Accuracy | ±0.2% of full scale |
| Conversion Time | 5 ms per channel |
| Input Impedance (Voltage) | > 1 MΩ |
| Input Impedance (Current) | 250 Ω |
| Isolation Voltage | 1500 V AC (channel-to-bus) |
| Power Supply | 5 V DC (backplane) / 24 V DC (field) |
| Power Consumption | 3.0 W (5 V) + 2.5 W (24 V) |
| Dimensions (L×W×H) | 240 × 180 × 30 mm |
| Weight | 0.48 kg |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | –25°C to +85°C |
| Protection Rating | IP00 (open frame) |
| Component Count | 92 components |
Input Signal Versatility and Channel Configuration
The ABB SDCS-IOB-3 3BSE004086R1 provides 8 differential analog input channels for field instrumentation. Each channel accepts voltage signals of 0–10 V or ±10 V from various transducers. The board also handles current signals of 4–20 mA and 0–20 mA for pressure and temperature sensors. Users configure each channel individually through the system software for flexible deployment.
Conversion Accuracy and Sampling Performance
The board achieves 14-bit resolution on input channels for detailed signal representation. Output channels deliver 12-bit resolution for smooth analog control signals. Accuracy stays within ±0.2% of full scale under normal operating conditions. Each channel completes conversion within 5 ms, enabling responsive process monitoring and control.
Output Capabilities and Actuator Control
Four analog output channels provide 0–10 V voltage or 4–20 mA current signals. These outputs connect to variable frequency drives, valve positioners, and chart recorders. The output circuits include protection against short circuits and overcurrent events. Users can configure output ranges individually through the system configuration software.
Power Architecture and Noise Isolation
The board draws 3.0 W from the 5 V backplane supply for logic and conversion circuitry. A separate 24 V field supply provides 2.5 W for analog output drivers. This split design isolates control logic from field-side electrical disturbances. The 1500 V AC isolation barrier protects the backplane from voltage spikes originating in the field.
Component Layout and Circuit Design
This PCB contains 92 components, including analog-to-digital converters, amplifiers, and filtering capacitors. Surface-mount technology enables compact component placement and improved signal integrity. A multi-layer PCB design reduces electromagnetic interference between analog and digital sections. Gold-plated edge connectors provide secure backplane interfacing for reliable data transmission.
Installation and System Mounting
Mount the ABB SDCS-IOB-3 3BSE004086R1 directly onto the DCS backplane using the edge connector. Secure the board firmly with two mounting screws for vibration-resistant installation. The IP00 rating suits the board for controlled cabinet environments only. Proper grounding practices improve measurement accuracy and noise immunity.
Details
| Weight | 2.85 kg |
|---|---|
| Dimensions | 234 × 99 × 216 mm |
