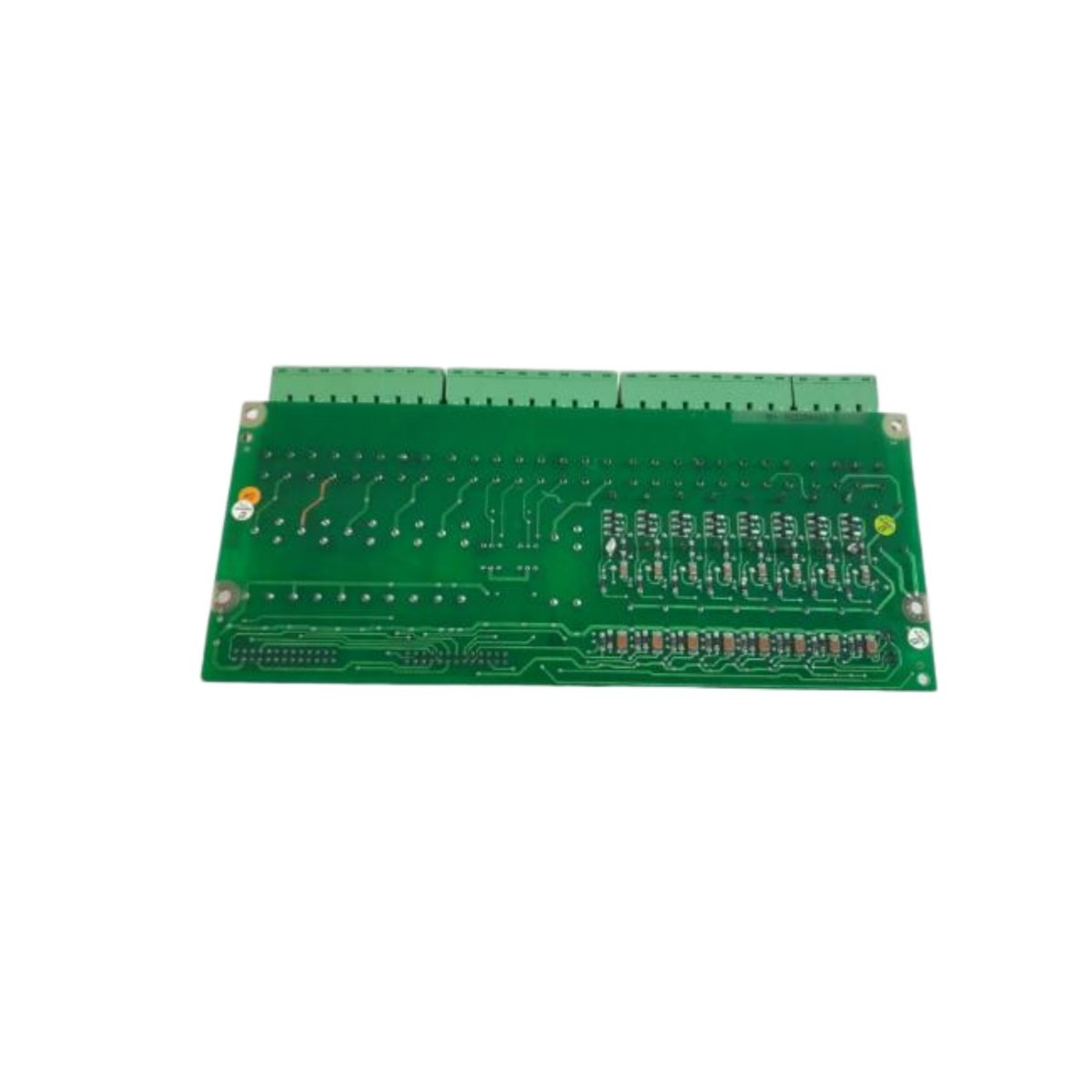

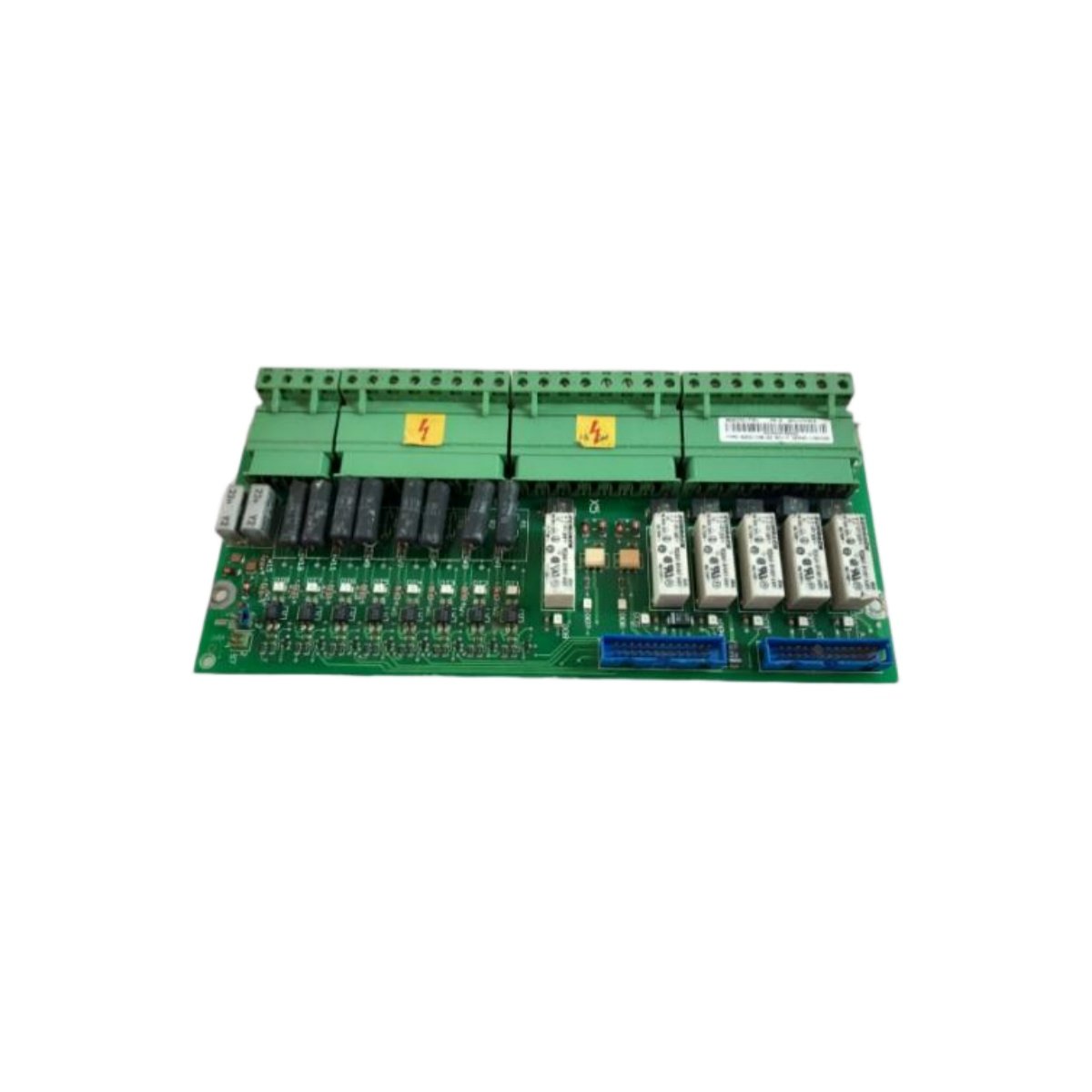

The ABB SDCS-IOB-22 3BSE005177R1 digital I/O interface board connects field devices to distributed control systems reliably. This versatile module handles both input and output signals for comprehensive system integration. Its PCB measures 240 mm in length, 180 mm in width, and 30 mm in height.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | SDCS-IOB-22 3BSE005177R1 |
| Category | Digital I/O Interface Board |
| Digital Inputs | 16 channels (24 V DC, sinking) |
| Digital Outputs | 16 channels (24 V DC, 0.5 A, sourcing) |
| Input Voltage Range | 18–30 V DC |
| Output Protection | Short-circuit and overcurrent |
| Isolation Voltage | 1500 V AC (channel-to-bus) |
| Communication Interface | Parallel backplane bus |
| Power Supply Voltage | 5 V DC (backplane) / 24 V DC (field) |
| Power Consumption | 2.5 W (5 V) + 4.0 W (24 V) |
| Dimensions (L×W×H) | 240 × 180 × 30 mm |
| Weight | 0.45 kg |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | –25°C to +85°C |
| Protection Rating | IP00 (open frame) |
| Mounting Type | Screw-mounted on backplate |
| Component Count | 78 integrated circuits and passive components |
| MTBF | 1,200,000 hours |
Input Capabilities and Signal Conditioning
The ABB SDCS-IOB-22 3BSE005177R1 offers 16 digital input channels for status monitoring. Each channel accepts 24 V DC sinking signals from proximity sensors, limit switches, and pushbuttons. The board filters electrical noise to prevent false triggering from industrial interference. Input status LEDs illuminate individually to indicate active channels for quick visual verification.
Output Control and Load Handling
Sixteen digital output channels deliver 24 V DC at 0.5 A for controlling external actuators. These sourcing outputs drive contactors, solenoid valves, pilot lights, and small relays. Each output includes short-circuit protection to prevent damage during wiring faults. Overcurrent protection limits each channel to 0.7 A before automatically disconnecting the load.
Power Distribution and Energy Requirements
The board draws 2.5 W from the 5 V DC backplane supply for internal logic operations. A separate 24 V DC field supply provides 4.0 W for output driver circuits. This split power architecture isolates the control logic from field-side power fluctuations. The design ensures stable operation even with voltage variations on the field supply.
Construction and Component Layout
This PCB contains 78 components, including optocouplers, transistors, and filtering capacitors. The board uses surface-mount technology for compact component placement and reliable soldering. Gold-plated edge connectors establish a secure interface with the system backplane. A robust solder mask protects the copper traces from oxidation and handling damage.
Backplane Communication and System Integration
The ABB SDCS-IOB-22 3BSE005177R1 connects to the DCS backplane for data exchange with the central processor. This parallel bus enables rapid transfer of I/O status and control commands. The board responds to processor requests within 1 ms for deterministic control performance. Engineers can mix multiple I/O boards for customized system configurations.
Installation and Mounting
Mount the ABB SDCS-IOB-22 3BSE005177R1 directly onto the DCS backplane using the edge connector. Secure the board with two mounting screws to ensure reliable electrical contact. The board’s IP00 rating makes it suitable for controlled environments like electrical cabinets. Proper grounding of the mounting base improves noise immunity and signal integrity.
Details
| Weight | 2.85 kg |
|---|---|
| Dimensions | 234 × 99 × 216 mm |
